Permaground Copper U-Bolt Ground Clamp, Conductor Range 2/0-4 Sol, Pipe Size 3/8in, Ground Rod Sizes 5/8 to 3/4in, Rebar Size #6, UL, CSA
SKU: #257037
Part: #GPL-5
UPC: 783669262087
Permaground Copper U-Bolt Ground Clamp, Conductor Range 2/0-4 Sol, Pipe Size 3/8in, Ground Rod Sizes 5/8 to 3/4in, Rebar Size #6, UL, CSA
SKU: #257037
Part: #GPL-5
UPC: 783669262087
Next day delivery
Description
Permaground Copper U-Bolt Ground Clamp, Conductor Range 2/0-4 Sol, Pipe Size 3/8in, Ground Rod Sizes 5/8 to 3/4in, Rebar Size #6 – Grounding Solutions

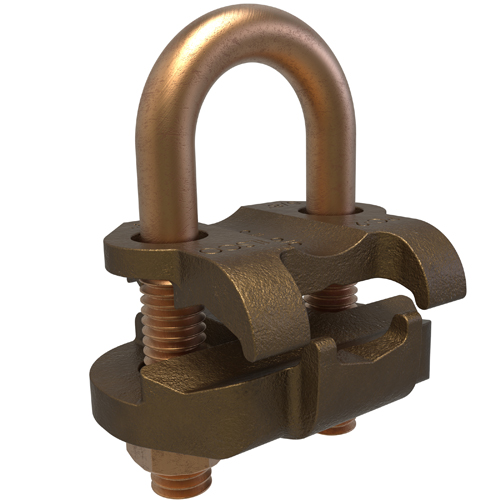

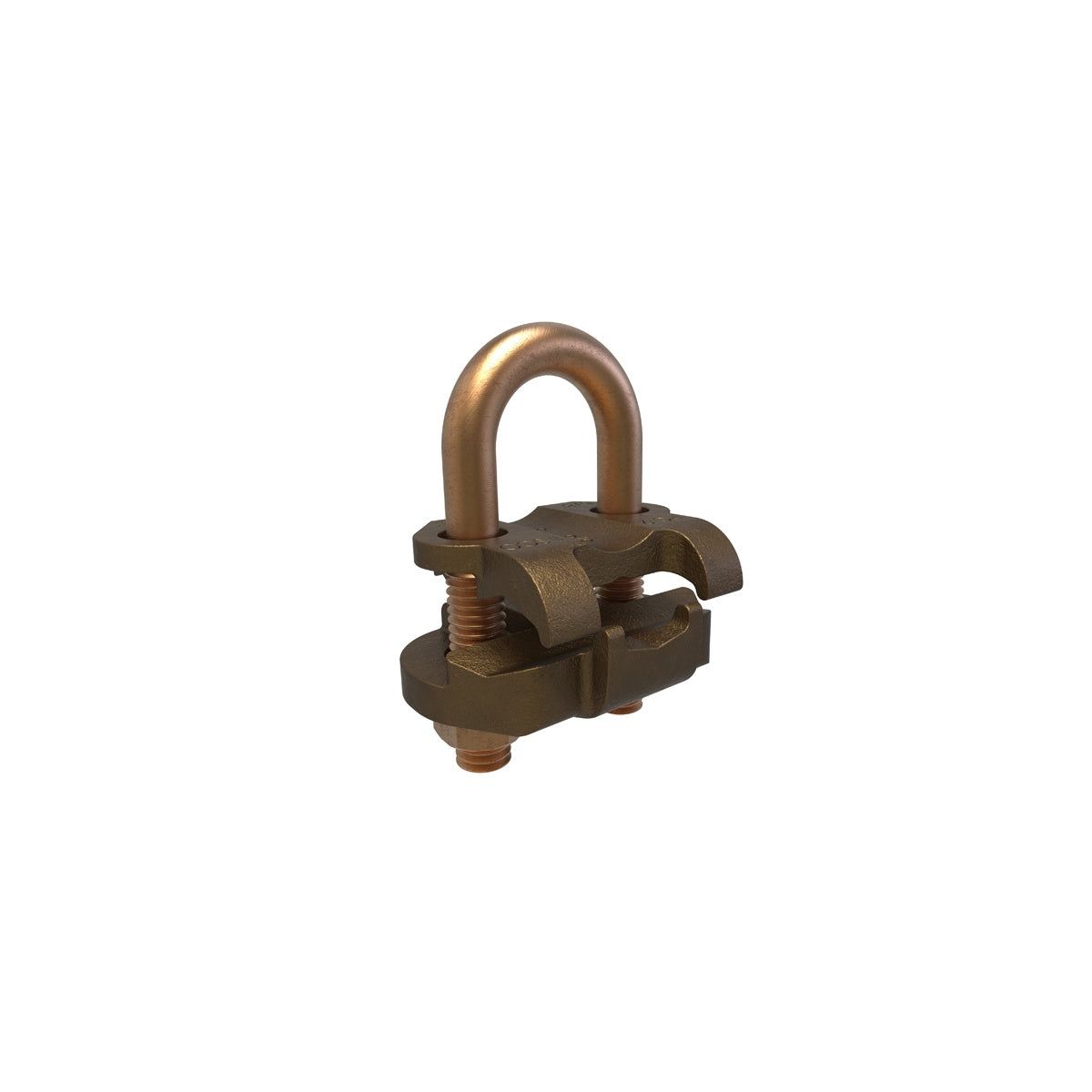

This Permaground Copper U-Bolt Ground Clamp by ILSCO is designed for secure grounding connections in electrical distribution and lighting solutions. It accommodates conductor sizes ranging from 2/0 to 4 solid, pipe sizes of 3/8 inch, ground rod sizes from 5/8 to 3/4 inch, and rebar size #6. Suitable for use by wire and cable suppliers and switchgear suppliers, it meets UL and CSA certification standards, ensuring compliance and reliability in grounding applications.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: GPL-5
- Conductor Range: 2/0-4 Solid
- Pipe Size: 3/8 inch
- Ground Rod Sizes: 5/8 to 3/4 inch
- Rebar Size: #6
- Material: Copper
- Weight: 50.0000 (units not specified)
- Certifications: UL, CSA
- UPC: 783669262087
Features
- U-bolt design for secure grounding connections
- Compatible with multiple conductor and grounding rod sizes
- Constructed from copper for optimal conductivity
- Includes post clamp, conductor clamp, lock washers, and hex nuts for assembly
- Meets UL and CSA safety standards
- No plating or markings, providing a bare copper finish
