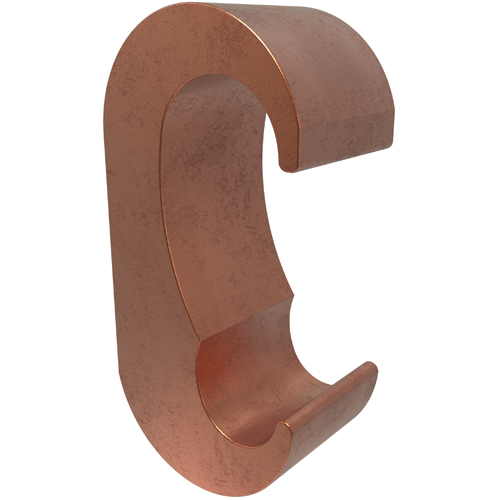

Permaground Copper Grounding E Crimp – Electrical Distributor Grounding Connector

The Permaground Copper Grounding E Crimp is a precision-engineered grounding connector designed for reliable electrical grounding in wire and cable installations. Manufactured by ILSCO, this copper crimp is suitable for use in lighting solutions, switchgear applications, and as a grounding component for electrical distributors. It supports a main conductor range of 500-300 kcmil and tap conductor range of 3/0-6 solid copper wire, making it ideal for connecting grounding conductors to rebar in concrete or direct burial environments.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part Number: ELT-7
• Material: Copper
• Color: Copper
• Conductor Material: Copper
• Conductor Type: Solid
• Main Conductor Range (Primary, run, main, line): 500 kcmil - 300 kcmil
• Tap Conductor Range (Secondary, tap, load): 3/0 Stranded - 6 Stranded; 2 Solid - 6 Solid
• Main Rebar Size: #5 (5/8 inch)
• Tap Rebar Size: #3 - #4
• Ground Rod Size: 5/8 inch
• Dimensions (inches): Height 2.672, Length 1.325, Width 0.875
• Weight: 0.5167 lbs
• UL / CULUS Specification: UL 467 Listed
• Direct Burial: Yes
• Carton Quantity: 6
• UPC: 783669257427

Features

• Bright dip copper finish for enhanced corrosion resistance
• Designed for direct burial applications ensuring durability in underground installations
• Compatible with a wide range of conductor sizes for flexible grounding solutions
• UL 467 Listed for grounding and bonding applications, meeting industry safety standards
• Solid conductor type for secure and reliable electrical connections
• Compact dimensions suitable for tight installation spaces in switchgear and lighting systems
• Easy installation with no screws required, utilizing ILSCO’s die index 1011 crimping method

Downloads and Links

• ILSCO ELT-7 Product Information Sheet (PDF)
