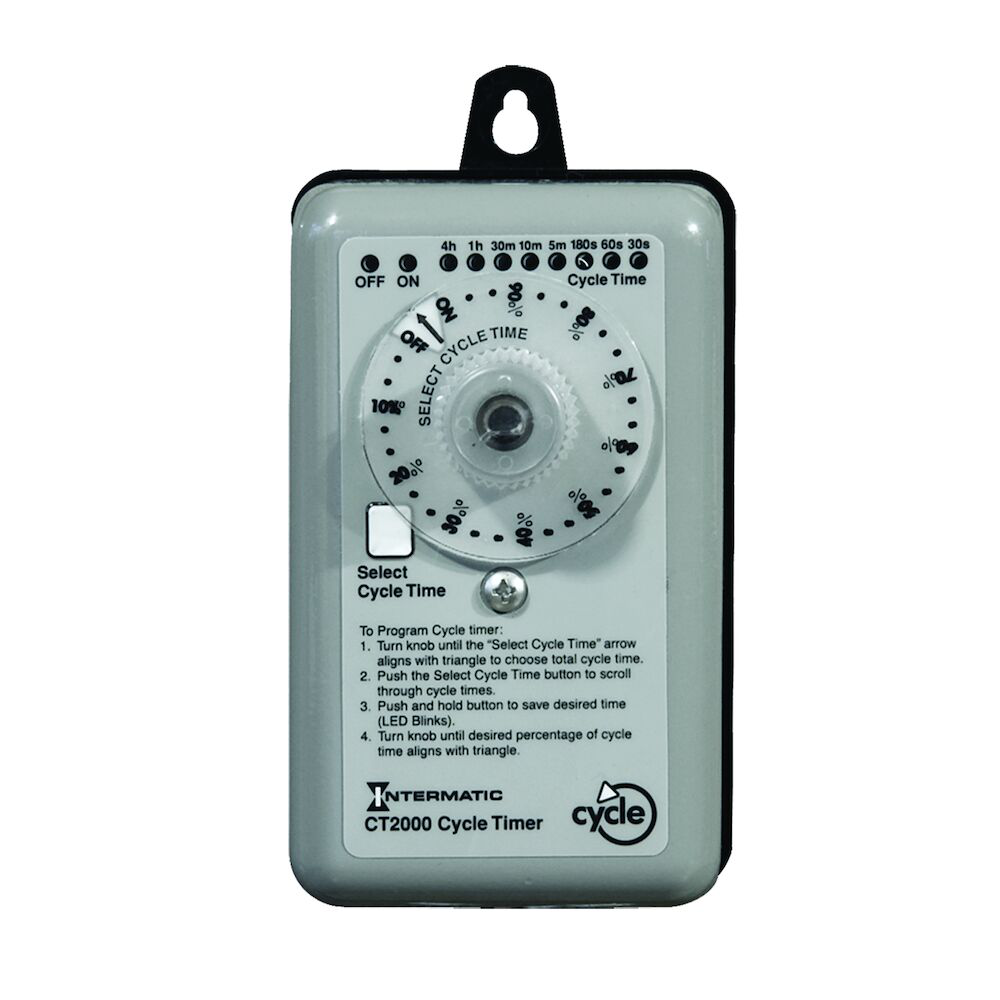

Features

• Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours
• Front cover button enables true flexibility for repetitive cycle times
• Temporary and permanent manual overrides
• 30 separate positions enable precise percentage ON time selection
• User settings stored in non-volatile memory
• No DIP switches to program cycle time
• Type 3R indoor/outdoor aluminum enclosure

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - DEHP

Specifications

• Country of Origin: Mexico
• Product Height: 6.625 in; 168.3 mm
• Product Depth: 3.3125 in; 84.1 mm
• Operating Temperature Min: -14°F; -10°C
• Operating Temperature Max: 140°F; 60°C
• Warranty Period: 1-Year limited
• Ballast Fluorescent: 10 A, 277 VAC, 60 Hz
• General Purpose Load Ratings: 20 A, 240 VAC, 60 Hz
• Applications: Agriculture Feeders; Greenhouse Misting Control
• Wiring Option: Wire leads
• Enclosure Type: Outdoor type 3R metal
• Switch Type: SPST
• Tungsten Incandescent: 5 A, 240 VAC, 60 Hz
• PDF Standards And Certifications: cCSAus

Certifications

• CSA Certification: cCSAus

Load Ratings

• Pilot Duty Load Ratings: 470 VA, 240 VAC, 60 Hz
• Resistive Load Ratings Ranges: 20 A, 28 VDC, 120/240 VAC, 60 Hz
• Motor Load Ratings Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC, 60 Hz
