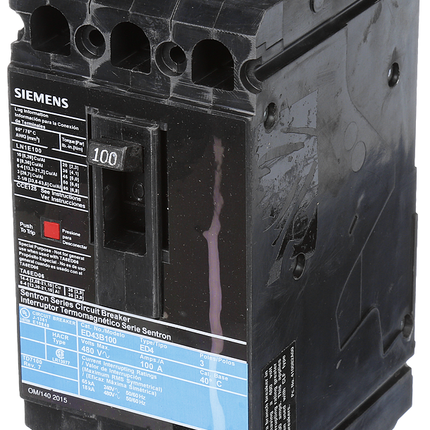

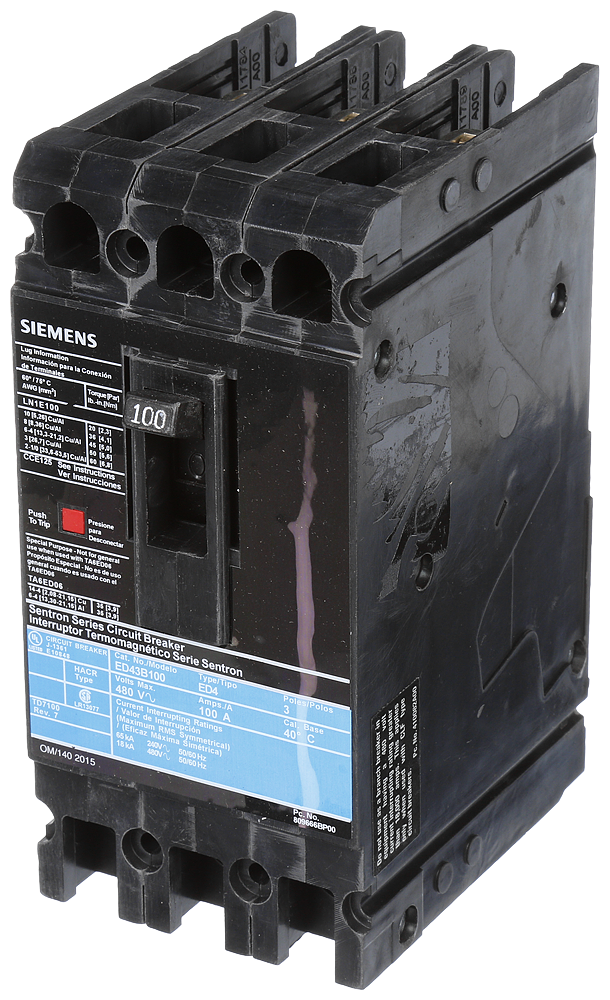

PE50030810 Siemens Molded Case Circuit Breaker

The Siemens PE50030810 is a low voltage Sentron molded case circuit breaker designed for reliable protection in electrical distribution systems. It features a thermal-magnetic trip unit with a standard 40°C calibration, suitable for standard breaker applications. This 3-pole breaker supports a 100A continuous current rating and is rated for 18kA interrupting capacity at 480V. It is ideal for use by electrical distributors and switchgear suppliers requiring robust and compliant circuit protection solutions.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED43B100L
• Frame: ED
• Number of Poles: 3
• Continuous Current Rating: 100A
• Interrupt Rating: 18kAIC at 480V
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Connection: Line/Load lugs installed (LN1E100, wire range 10 - 1/0 AWG Cu/Al)
• Dimensions (W x H x D): 5.7 in x 7.3 in x 3.8 in
• Product Weight: 3.801 lbs
• Country of Origin: Mexico

Features

• Thermal-magnetic trip unit with non-interchangeable design for enhanced safety and compliance
• Standard 40¬∞C calibration suitable for typical electrical distribution environments
• Line and load side lugs pre-installed for ease of wiring and installation
• Compact ED frame design optimized for panelboards and switchgear applications
• Meets UL 489 and CSA C22.2 No. 5 standards for molded case circuit breakers
• Supports 18kA interrupting capacity at 480V for reliable fault protection
