Performance Overview

• Style: Podium
• Reach Height: 14 ft
• Performance Rating: 4 star
• Load Capacity: 300 lbs
• Size: 10 ft
• Type: Type IA Duty Rating

Features

• Same reach height as a 10 ft stepladder
• 4X Work Zone to reach all directions
• Back-up plates reinforce all top connectors
• 300 lbs Load Capacity, Type IA Duty Rating

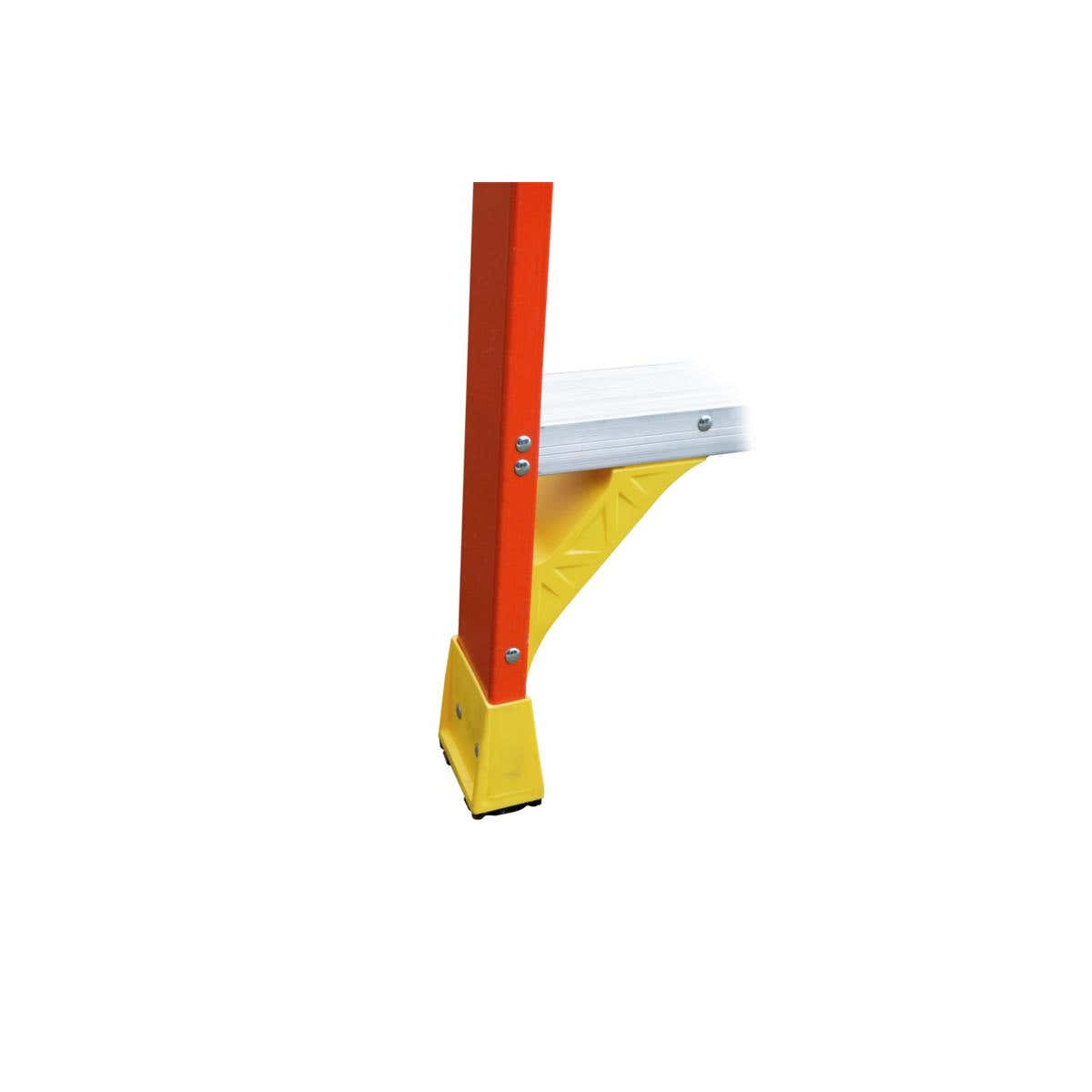

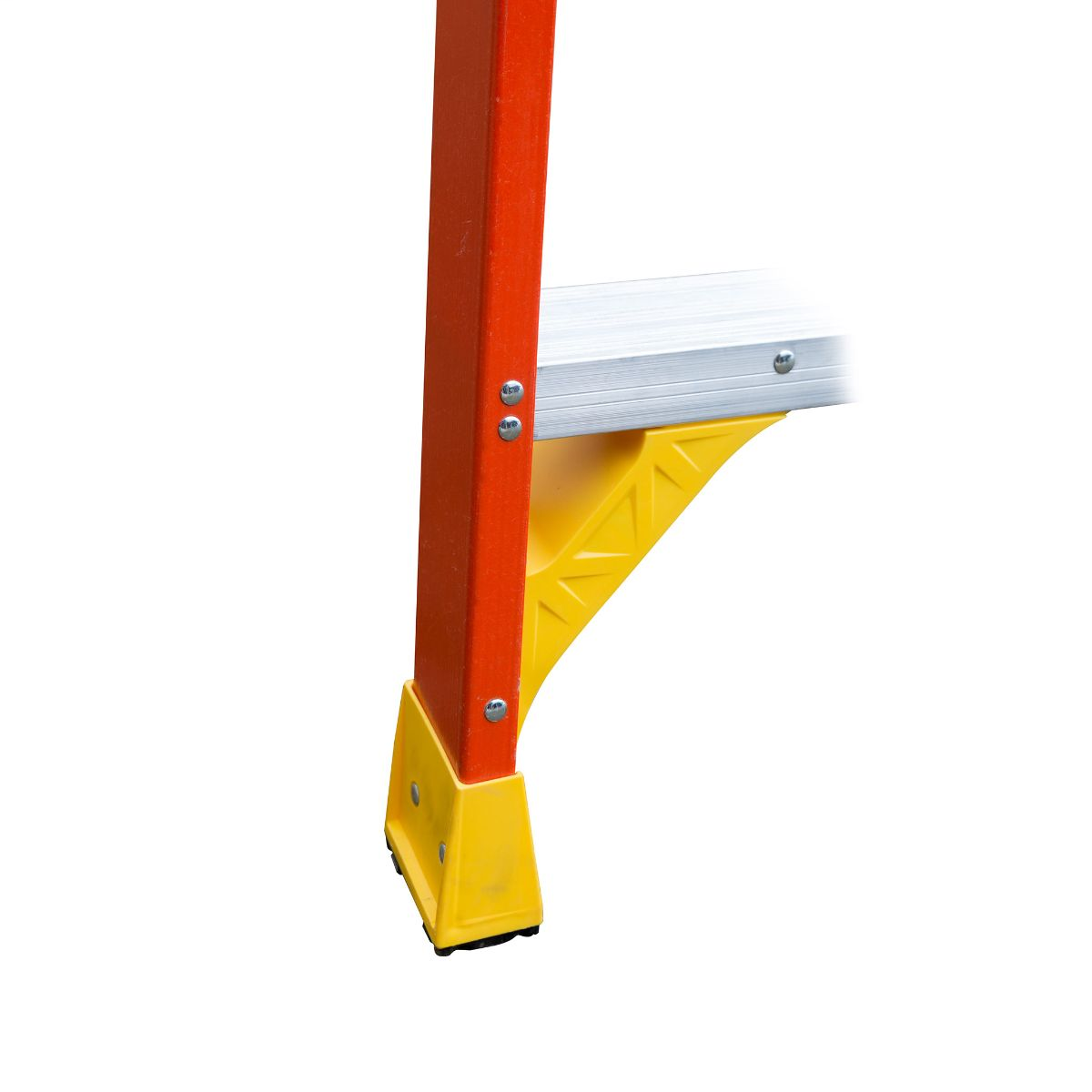

• EDGE 360® includes an integrated rail shield, EDGE bracing and oversized foot pads

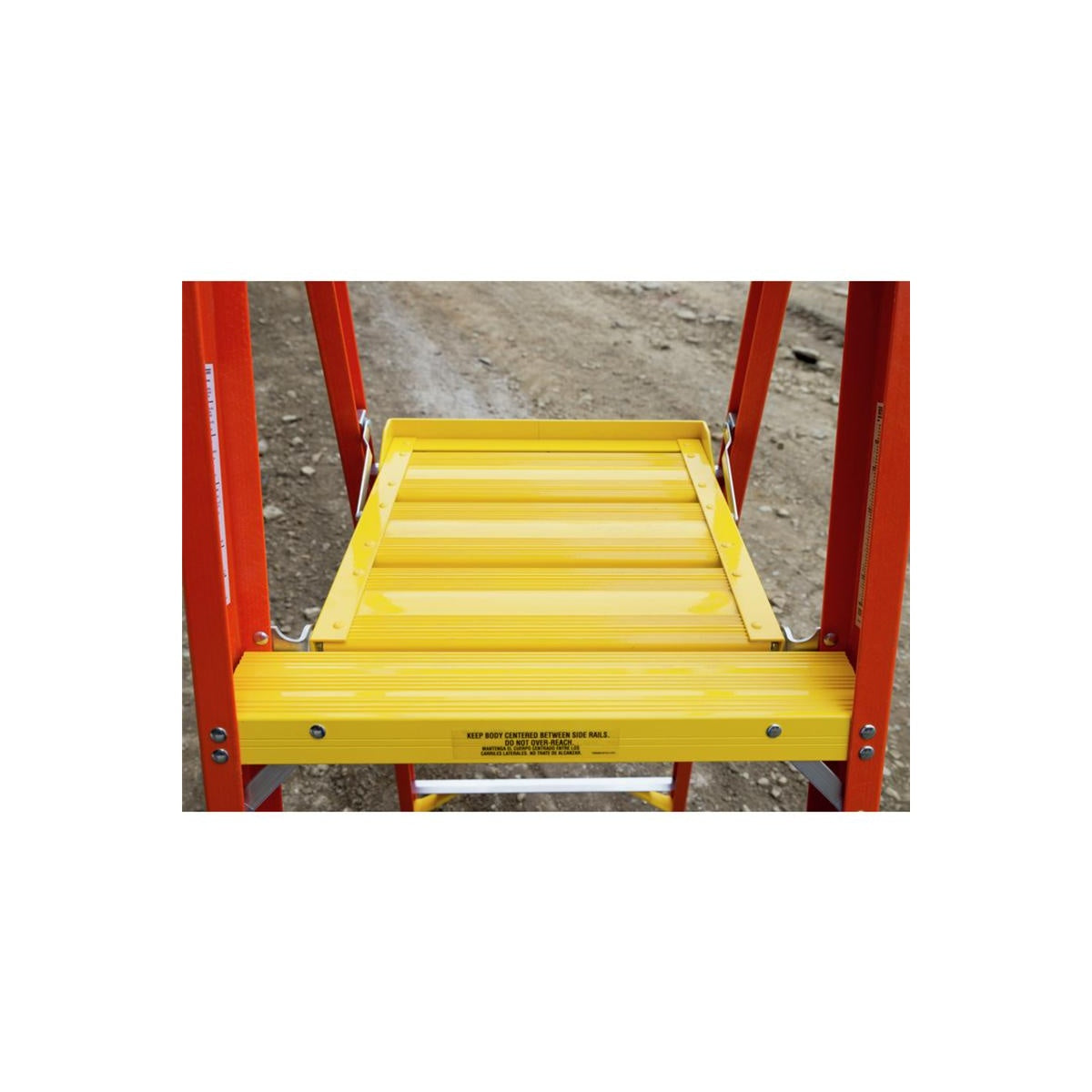

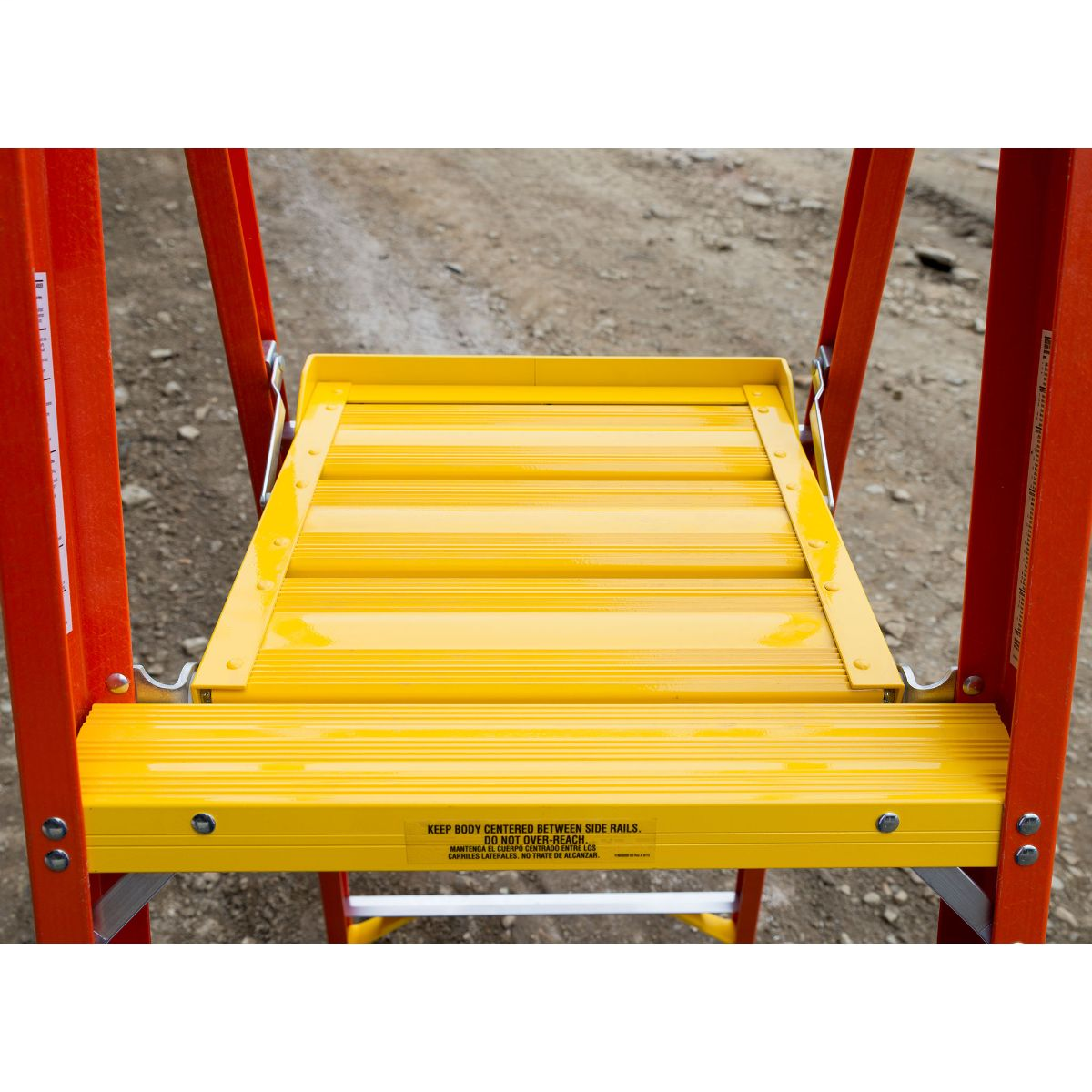

• Extra-large platform for long standing comfort
• All steps and two rear horizontals are knee-braced

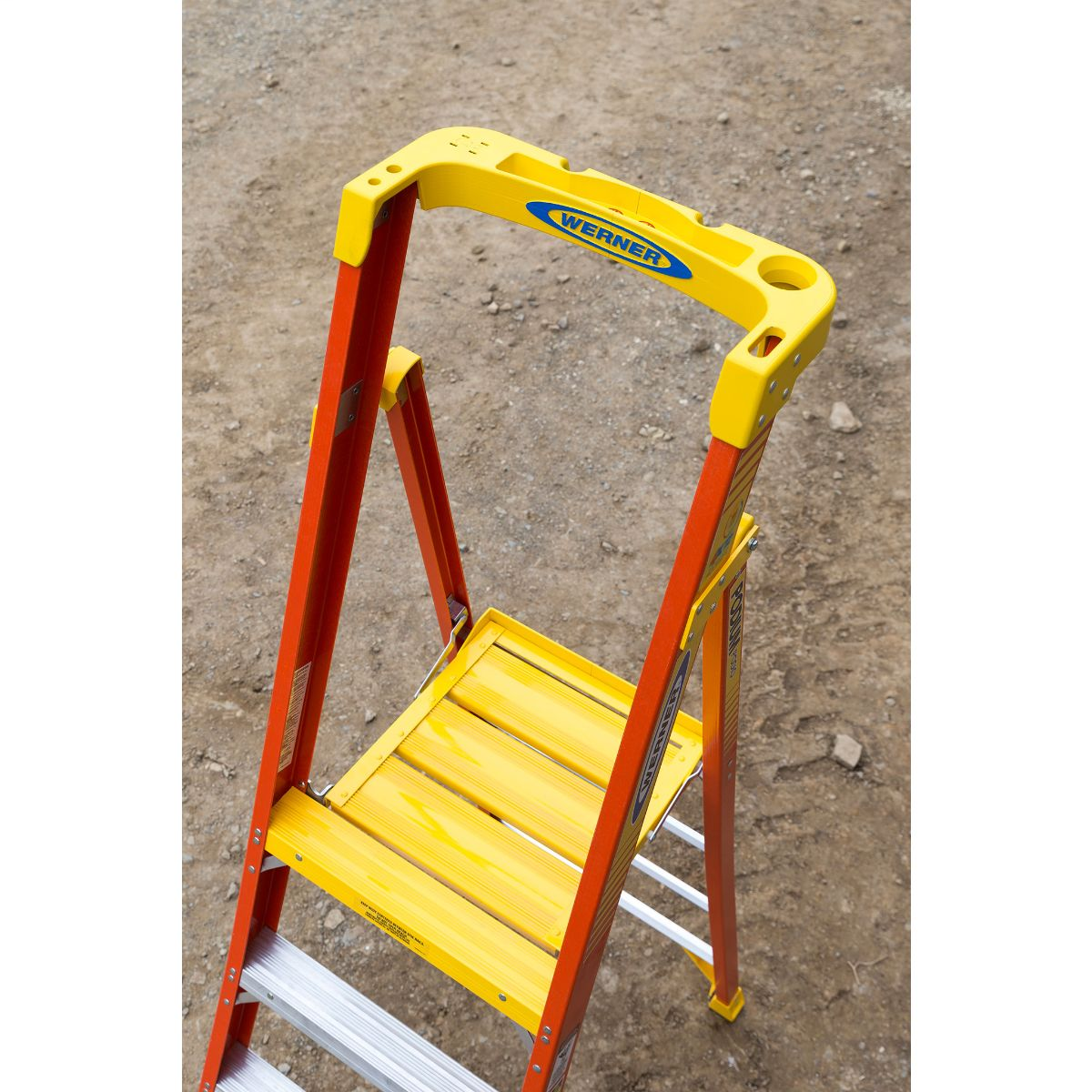

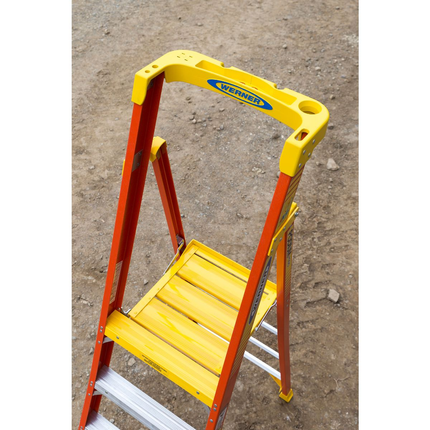

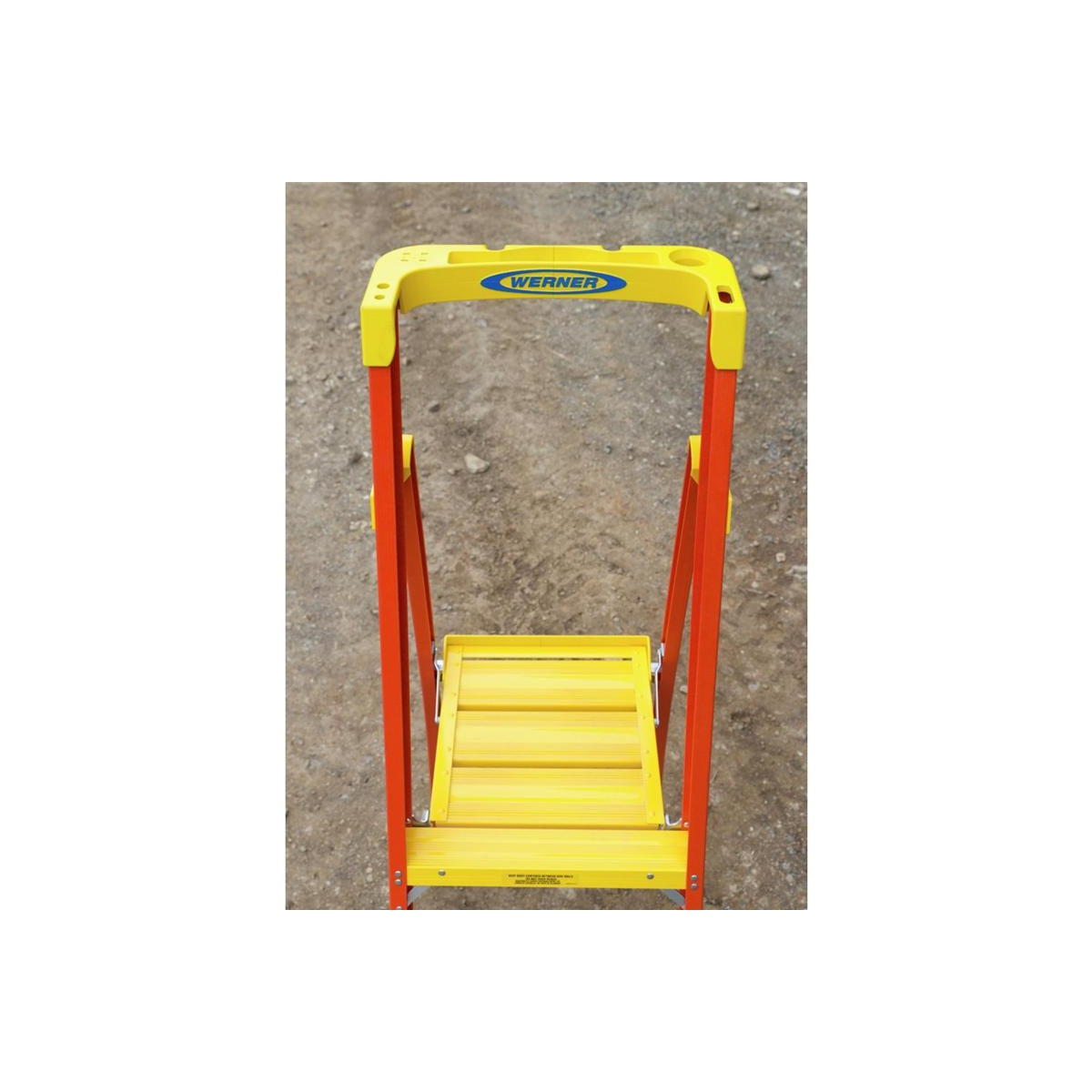

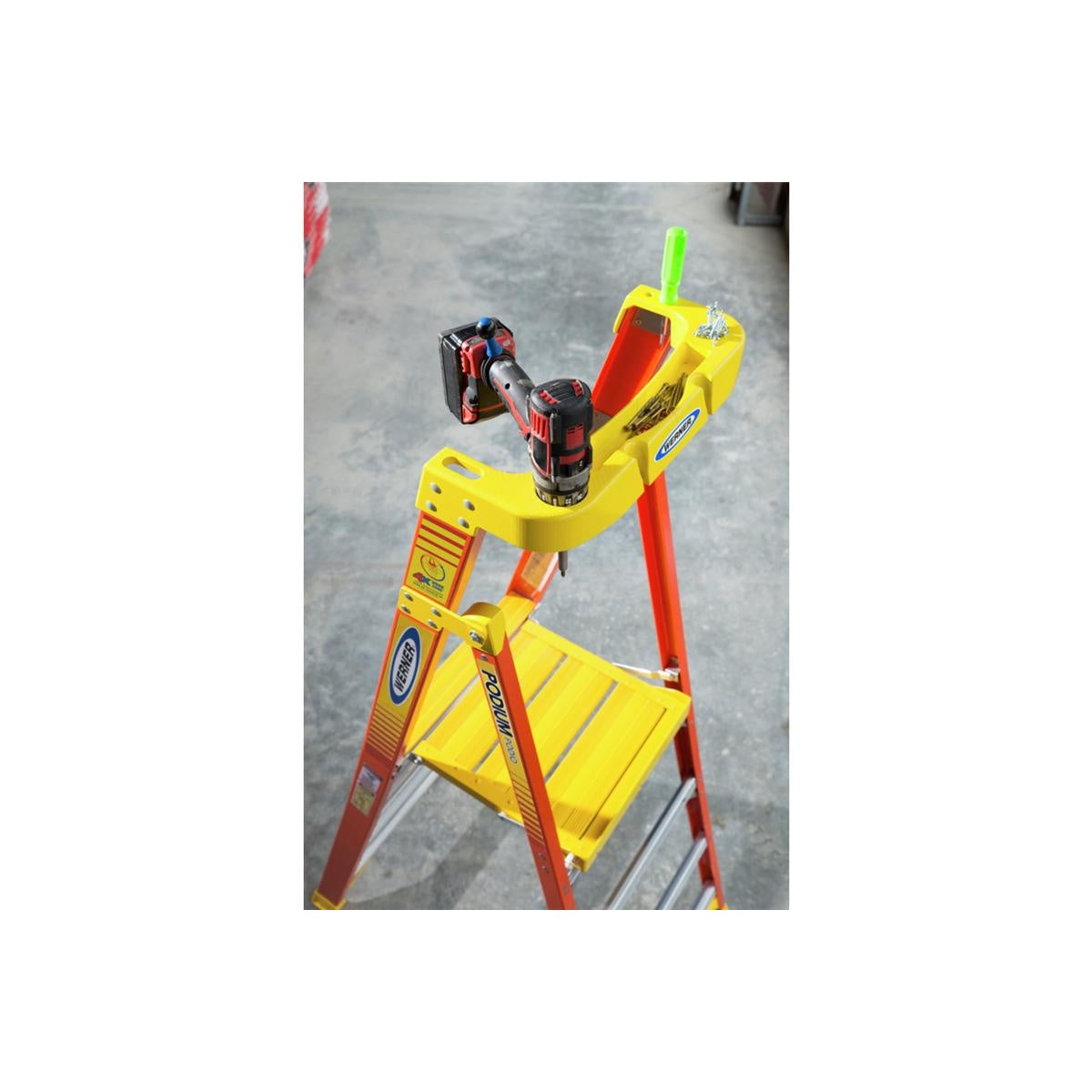

• LOCKTOP™ extended guard rail securely wraps around work zone and holds an arsenal of tools
• Full set of rear horizontals spaced one per foot
• Double riveted slip-resistant TRACTION-TRED® steps

Specifications

• Type: Type IA Duty Rating
• Performance Rating: 4 star
• Approx. Width: 34-3/4 in
• Approx. Cu. Ft. Per Unit: 22.3
• Approx. Shipping Wt. Lbs.: 47
• Approx. Spread: 68-1/5 in
• Size: 10 ft
• Approx. Overall Ladder Height (Open): 127 in
• Platform Width: 16 in
• Height to Platform: 8 ft
• Platform Depth: 19-1/2 in
• Max. Standing Height: 8 ft
• Load Capacity: 300 lbs
• Reach Height: 14 ft
• Material: Fiberglass

Dimensions

• Steps Dimension: 3 in
• Platform Dimensions: 16 in x 19-1/2 in

Accessories

• AC50-JB-3 Lock-In Job Bucket
• AC54-JC Lock-In Job Caddy
• AC27-P Lock-In Paint Cup
• AC52-UB Lock-In Utility Bucket
• AC56-UH Lock-In Utility Hook
• AC27-L Lock-In Paint Cup Liner
• AC58-TL Lock-In Tool Lasso
• AC11 Stepladder Hanger

Additional PD6200 Series Models

• PD6206-4C
• PD6204-4C
• PD6210-4C
• PD6206
• PD6208-4C
• PD6203
• PD6203-4C
• PD6204
• PD6210
• PD6208
