PBTD-12-350 Insulated Multi-Tap Connector – Electrical Distributor Wire and Cable Solution

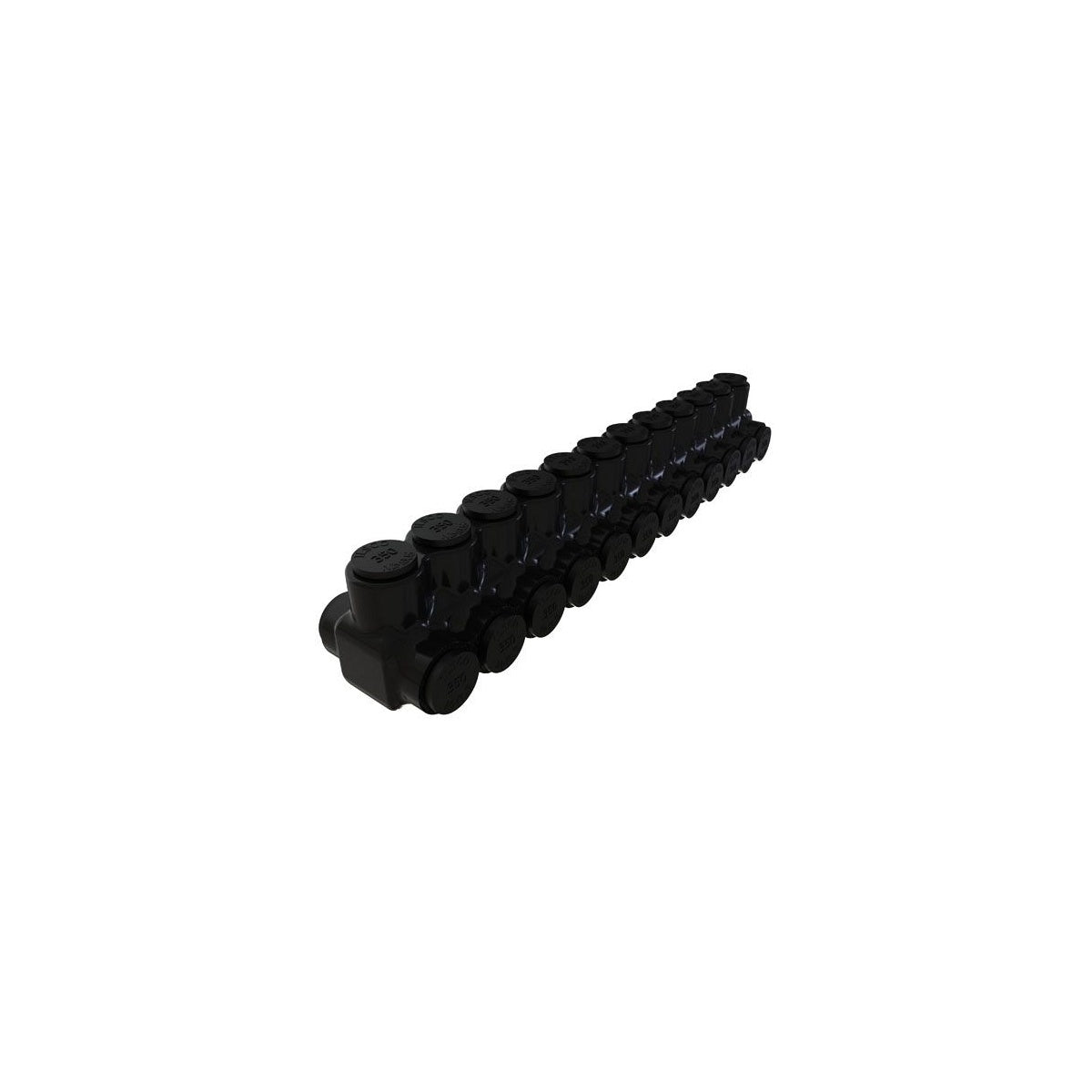

The PBTD-12-350 is an insulated mechanical multi-tap connector designed for reliable electrical distribution and wire management. Manufactured by ILSCO, this connector supports dual-sided entry and is suitable for copper or aluminum conductors. It is UL Listed and CSA Certified for 600 volts and rated for operation at 90°C, making it ideal for use in lighting solutions, switchgear assemblies, and wire and cable applications requiring secure multi-port connections.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part Number: PBTD-12-350
• Number of Ports: 12
• Wire Range: 350 kcmil – 6 AWG
• Dimensions (L x W x H): 14.028" x 2.578" x 2.396"
• Hex Size: 5/16"
• Voltage Rating: 600 volts
• Temperature Rating: 90°C
• Product Weight: 2.4420 lbs
• Certifications: UL Listed (UL 486A/B, UL File E6207), CSA Certified

Features

• Broad wire range covering 750 kcmil to 14 AWG
• Dual rated for copper and aluminum conductors
• Cold temperature rated to -45°C for enhanced environmental resistance
• High dielectric strength plastisol insulation with black cover
• Removable plugs for flexible field configuration
• Prefilled with De-ox® to prevent oxidation and improve conductivity
• Entry port closure prevents oxide formation and contamination
• Chemical resistant and UV rated for durability in harsh environments
