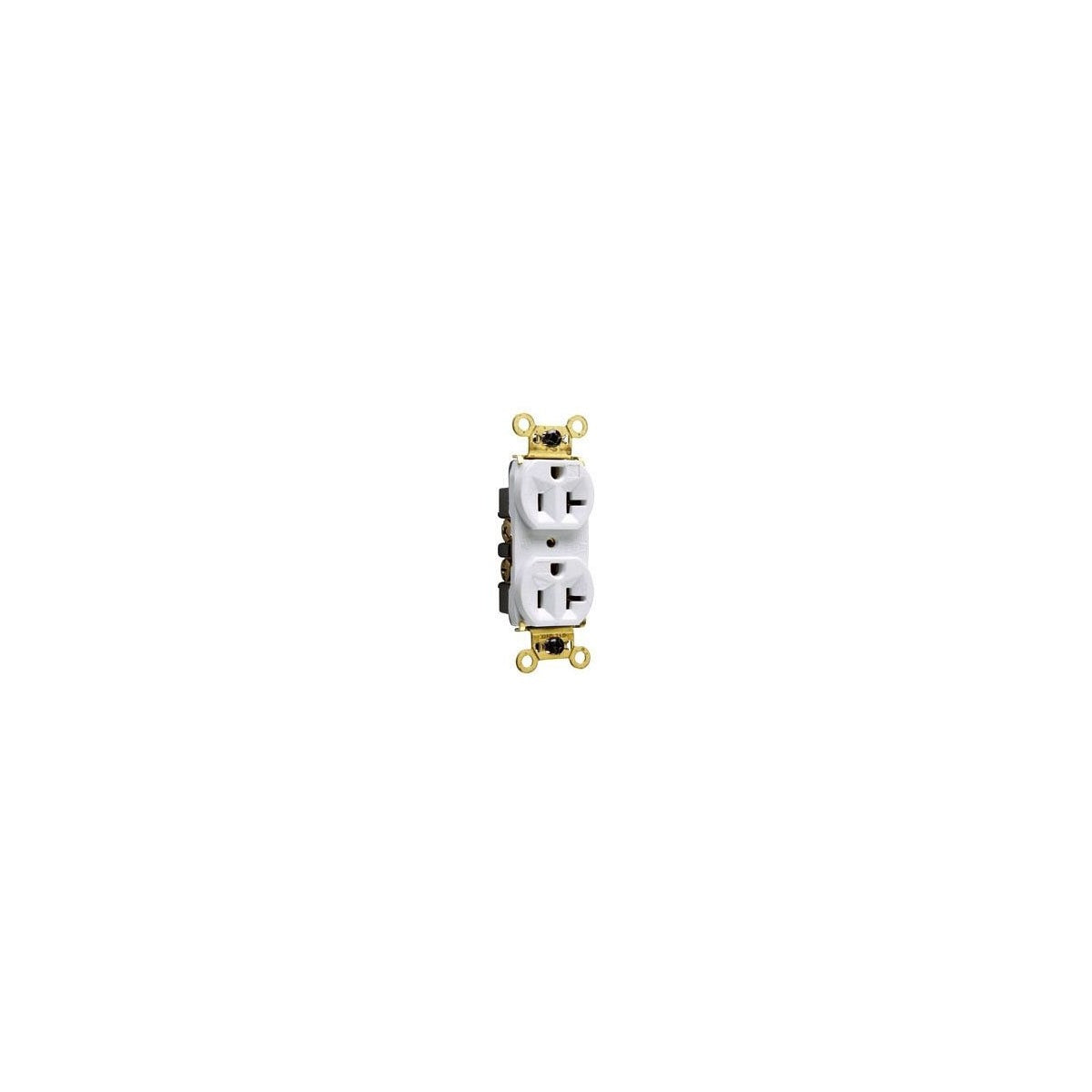

PASS&SEYM. WR5362-W WR DUP RECP B+S WIRE 20A/125V WH Electrical Receptacle

The PASS&SEYM. WR5362-W is a commercial-grade, weather-resistant duplex receptacle designed for heavy-duty electrical distribution applications. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable and durable wire and cable connections. This device supports back and side wiring and is designed for wall mounting in commercial environments.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: WR5362W
• Application: Commercial
• Amperage Rating: 20A
• Voltage Rating: 125V
• NEMA Rating: 5-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Connection Type: Back and side wire
• Material: UV-Resistant Nylon (face)
• Mounting: Wall
• Dielectric Strength: Withstands 2000V minimum
• Environmental Conditions: Flammability UL94 V2
• Product Weight: 0.2100 lb
• UPC: 785007242508

Features

• Heavy-duty, commercial-grade weather-resistant design for durability under harsh and wet environmental conditions
• UV-resistant nylon face for extended life in adverse environments
• Tri-drive brass terminal screws with internal screw-pressure-plate back and side wire capability for flexible wiring options
• Auto-ground clip ensures positive grounding
• Strap tabs wrap around face to prevent separation from back body
• Two back wire holes for increased wiring flexibility
• Certified for current interrupting at full-rated current
• Rated for continuous operation between -40¬∞C and +60¬∞C without impact
