Description

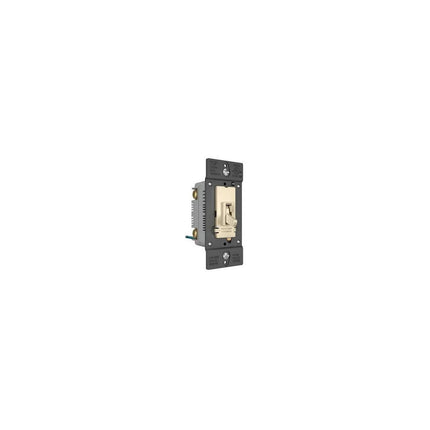

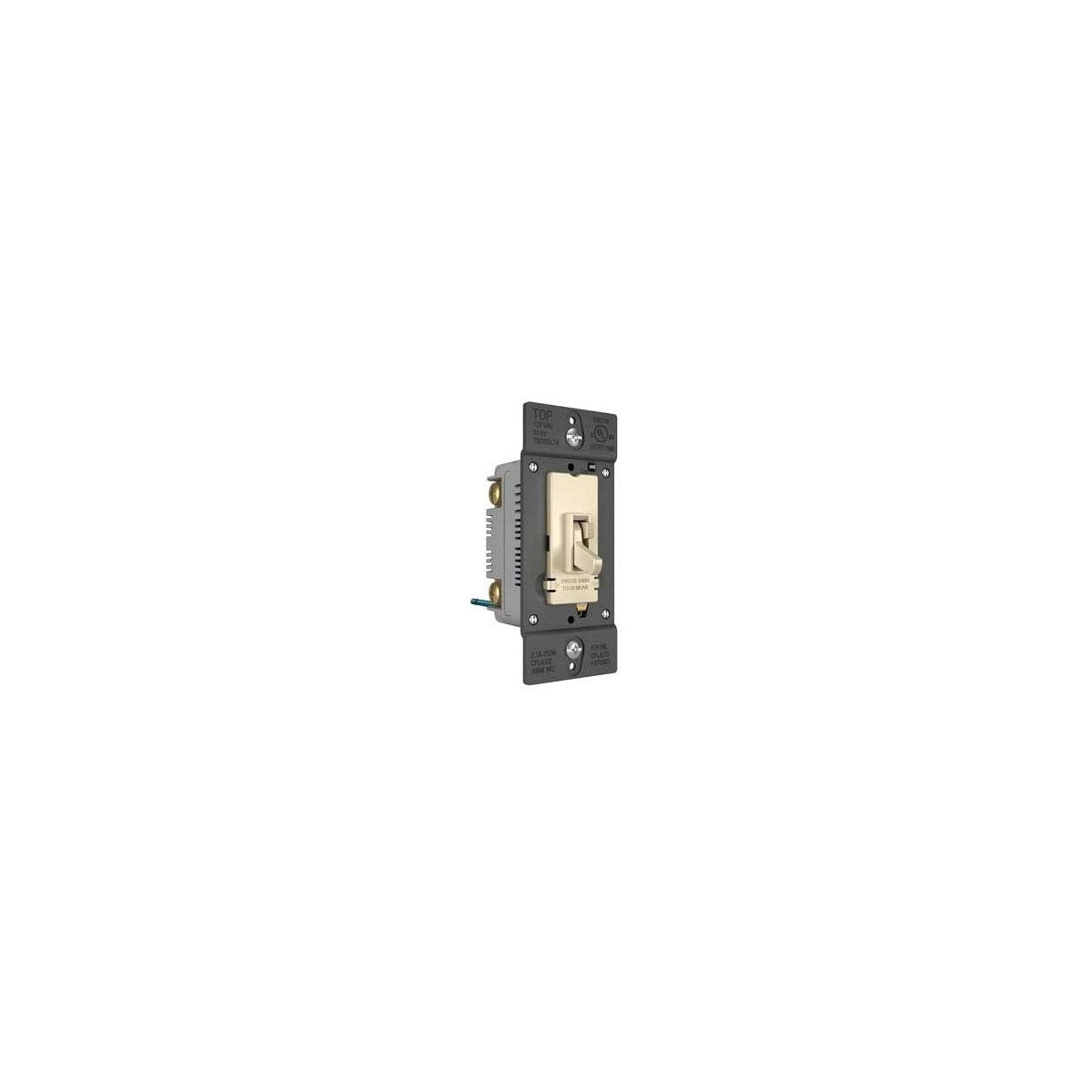

PASS&SEYM. TSDSSL7APLA SSL7A Compliant Toggle Slide Dimmer
The Pass & Seymour TSDSSL7APLA is a SSL7A compliant single pole/3-way toggle slide dimmer designed for residential lighting control applications. It is suitable for dimming magnetic low-voltage, incandescent, halogen, CFL, and LED lighting loads, supporting up to 300W CFL/LED and 700W incandescent/halogen. This dimmer is ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible dimmers and switchgear components.
Specifications
- Manufacturer: Pass & Seymour Wiring Devices & Accessories
- Manufacturer Part #: TSDSSL7APLA
- Number of Poles: Single Pole, 3-Way
- Load Ratings: 300W CFL/LED, 700W Incandescent & Halogen
- Dimensions (W x H x L): 2.375 in x 4.25 in x 2.75 in
- Product Weight: 0.2400 lbs
- Color: Light Almond
- UPC: 785007216738
Features
- SSL7A compliant for energy-efficient LED and CFL dimming
- Preset toggle slide control for precise lighting adjustment
- Compatible with single pole and 3-way wiring configurations
- Supports #12 or #14 AWG copper wire for installation
- Includes user-adjustable min and max trim settings to eliminate flicker and optimize dimming range
- Color change kit available for customizable faceplate colors
- Designed to operate on 120VAC, 60Hz circuits
- Conforms to NEMA WD-1 and WD-6 standards
- Back wire with screw pressure plate for secure wiring
