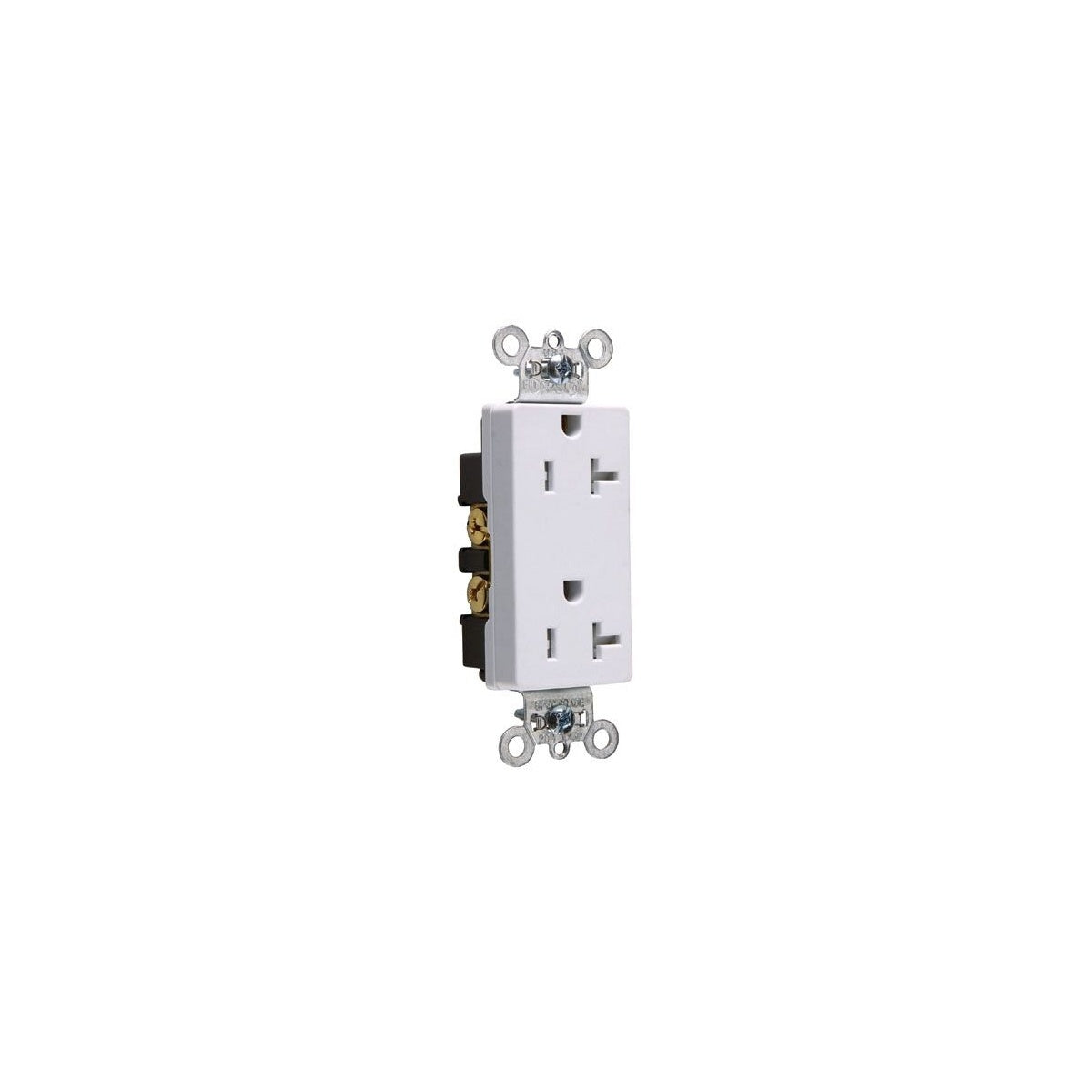

PASS&SEYM. TR26342-W TR DECO RECEP 20A 125V SIDE WIRE WH - Commercial Grade Tamper-Resistant Receptacle

The Pass & Seymour TR26342W is a commercial specification grade tamper-resistant decorator receptacle designed for 20A, 125V electrical applications. Ideal for use by electrical distributors and lighting solutions providers, this duplex receptacle features side wiring and is suitable for residential, commercial office, hospitality, retail, and multi-dwelling environments. It offers reliable performance with safety features that help comply with 2014 NEC® Article 406.12 requirements.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: TR26342W
• Rating: 20A, 125V
• Number of Poles: Double Pole
• Dimensions (W x H x L): 1.375 in x 4.375 in x 1.9375 in
• Weight: 0.1650 lbs
• UPC: 785007034929
• Configuration: NEMA 5-20R
• Material: Nylon face and back body, plated steel mounting strap
• Line Contacts: .032-inch thick brass triple-wipe power contacts
• Ground Contacts: .040-inch brass
• Terminal Screws: #8 Tri-Drive Steel (Neutral is Nickel Plated Steel)
• Auto-Ground Clip: Steel
• Flammability Rating: UL94 V2
• Operating Temperature: -40¬∞C to +60¬∞C continuous
• UL Listed (File Number E140596), CSA Certified (File Number LR16063)

Features

• Dual mechanical shutter system to prevent insertion of foreign objects
• Impact-resistant nylon face for enhanced durability
• Corrosion-resistant plated steel mounting strap
• Backed-out tri-drive steel terminal screws for faster installation
• Easily accessed break-off line-contact connecting tab for split-circuit wiring
• Auto-ground clip assures positive ground connection
• Certified for current interrupting at full rated current
• Reliable plug retention with triple-wipe brass power contacts
