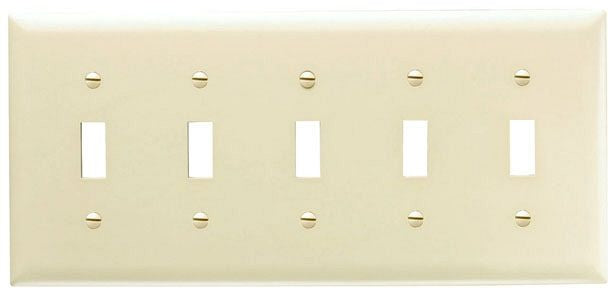

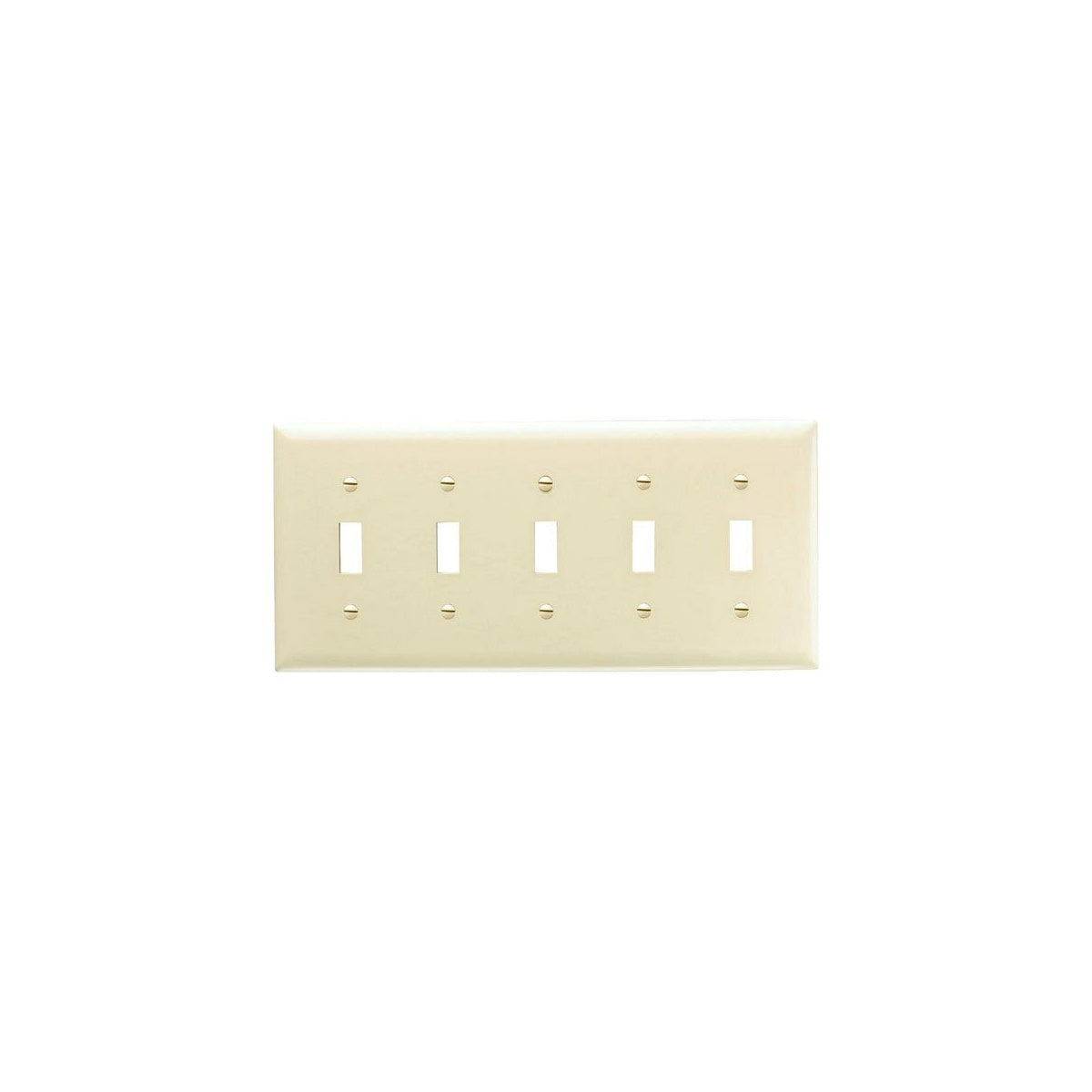

PASS&SEYM. TP5-LA TRADEMASTER PLATE 5G 5 TOG LA - Toggle Switch Wall Plate

The PASS&SEYM. TP5-LA TradeMaster Plate is a 5-gang toggle switch wall plate designed for residential and commercial applications. Molded from rugged, self-extinguishing nylon, it offers durability suitable for high-abuse environments such as hospitals, industrial, and institutional settings. This wall plate is intended for wall mounting in a vertical orientation and provides insulation protection with bare construction. It is a reliable choice for electrical distributors and lighting solutions providers focusing on wire and cable accessories and switchgear components.

Specifications

• Application: Residential/Commercial
• Material: Nylon
• Construction: Plastic
• Mounting: Wall
• Orientation: Vertical
• Number of Gangs: 5
• Cutout: Toggle
• Insulation: Bare
• Product Weight: 0.2100 lbs
• Color: Light Almond
• Size: Standard
• Capacity: 5-gang
• Nominal Thickness: 0.070 inch
• Country of Origin: United States of America
• Buy American Act Status: Compliant
• RoHS Compliant: Yes
• cULus Listed: Yes

Features

• Molded of rugged, practically indestructible self-extinguishing nylon ("TP" series only)
• Extra 3/16 inch width and height than standard size plates for better sheet rock coverage
• Preferred for hospital, industrial, institutional, and other high-abuse applications
• Available in multiple colors including Light Almond, Ivory, White, Brown, Gray, Black, Blue, Orange, and Red
