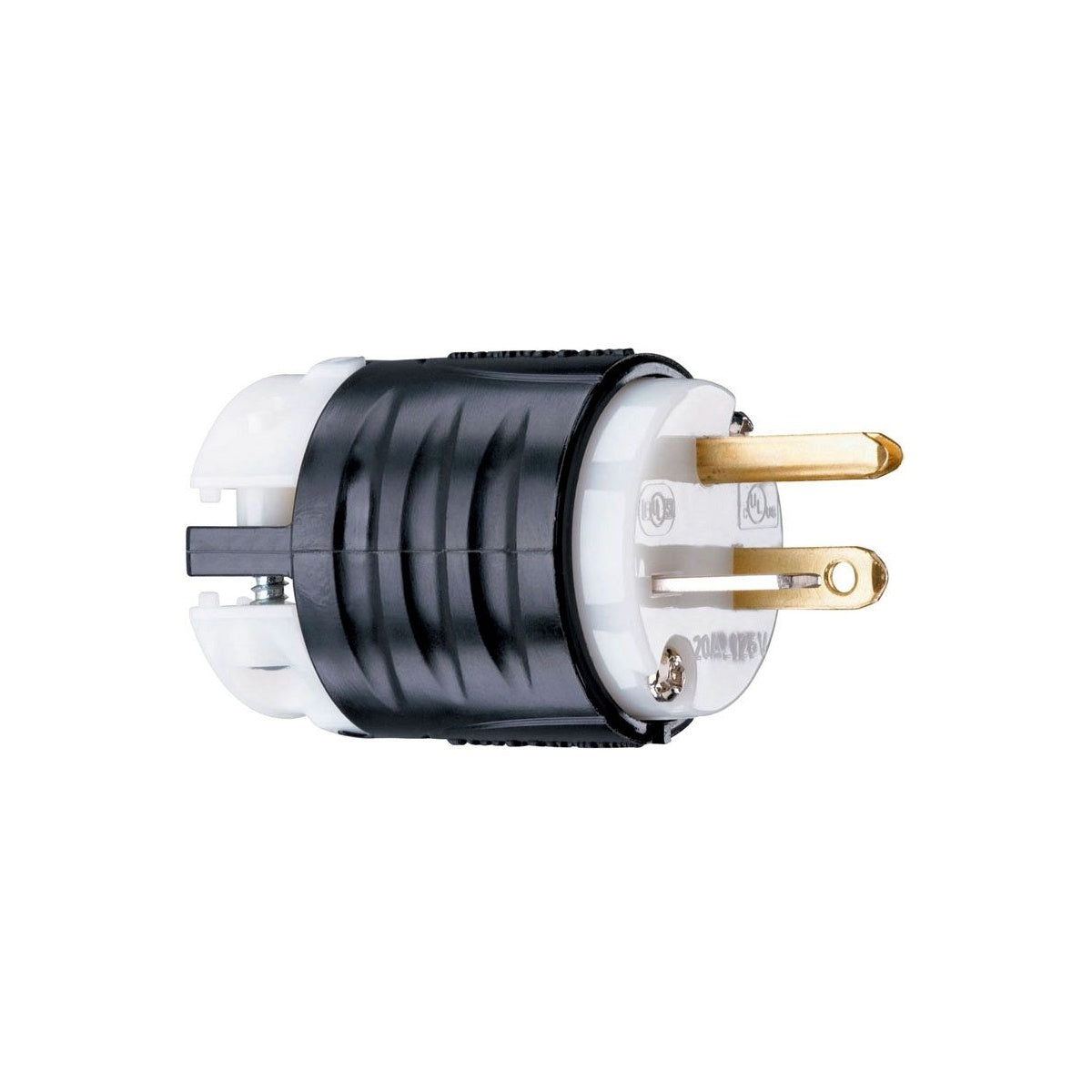

PASS&SEYM. PS5366-X STR BLD PLUG 3W 20A 125V B&W Electrical Connector

The PASS&SEYM. PS5366-X is a specification grade, extra-hard use straight blade plug designed for electrical distributors and lighting solutions requiring reliable 20 amp, 125 volt connections. It supports a 3-wire grounding system with double pole configuration, making it suitable for heavy-duty wire and cable applications. Constructed with a durable nylon housing and heavy-duty brass alloy blades, this plug offers impact resistance and excellent conductivity, ideal for demanding industrial and commercial environments.

Specifications

• Application: Extra Hard Use
• Material: Nylon
• Connection: Wire Grounding
• NEMA Rating: 5-20P
• Number of Poles: Double Pole
• Number of Wires: 3
• Amperage Rating: 20 A
• Voltage: 125 V
• Product Weight: 0.1700 lb
• UPC: 785007237009
• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: PS5366X

Features

• Ready-to-wire design reduces installation time
• Nylon housing provides impact and chemical resistance
• Rugged two-piece cord grip ensures uniform cord retention
• Internal dust shield protects terminals from contaminants
• Tri-drive assembly screws standard for secure connections
• All 3-wire terminals aligned on the same plane for quick wire termination
• Heavy-duty brass alloy blades and contacts resist heat rise and provide excellent conductivity
• Cord-grip screws recessed to protect installer from screwdriver slippage
