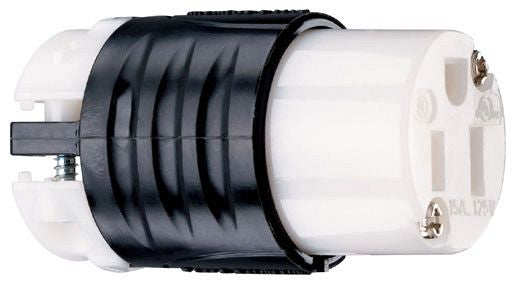

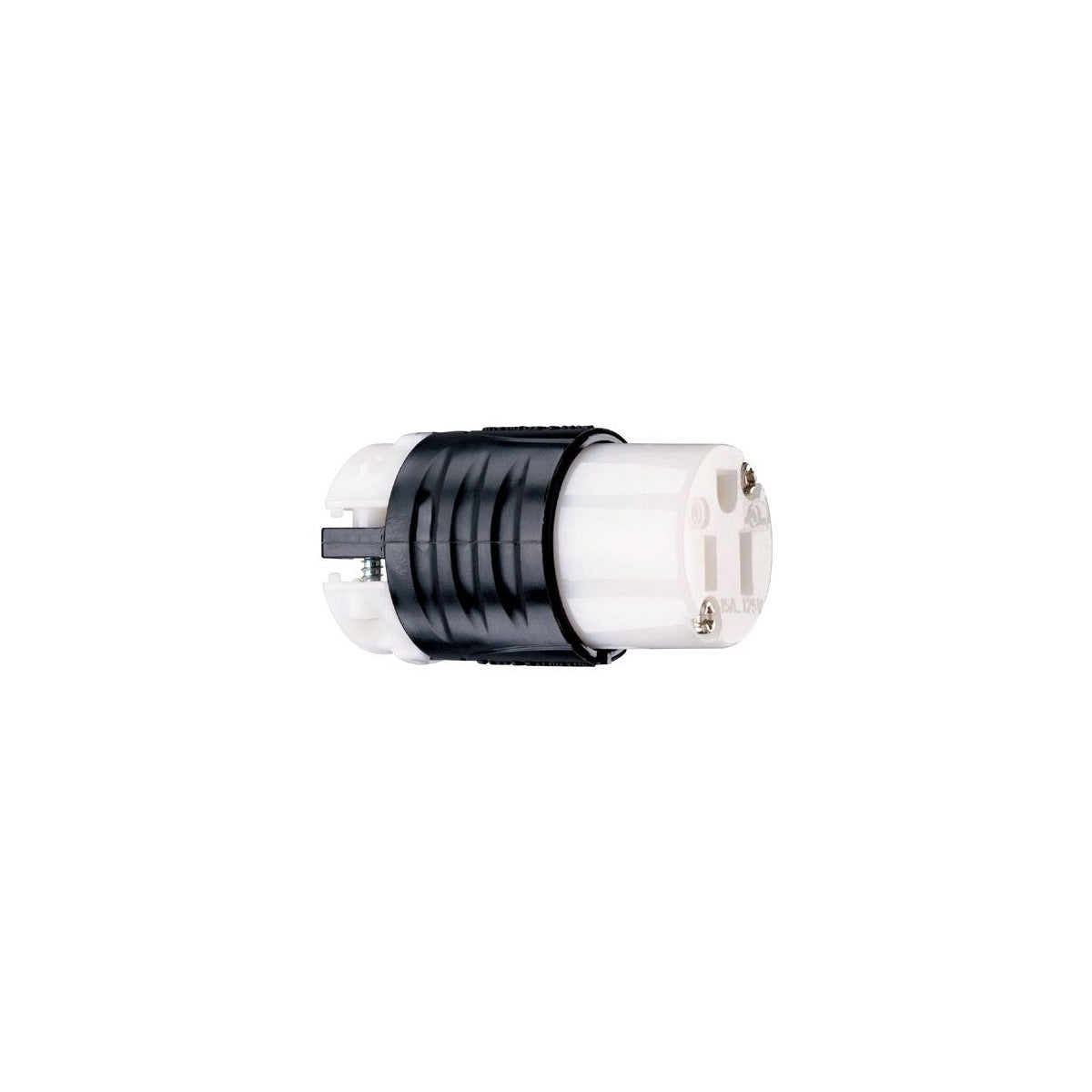

PASS&SEYM. PS5269-X Straight Blade Connector 15A 125V

The PASS&SEYM. PS5269-X is an Extra Hard Use (EHU) specification grade straight blade connector designed for reliable grounding in commercial and industrial electrical applications. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring durable and high-performance connectors. This 2-pole, 3-wire grounding connector is rated for 15 amps and 125 volts, conforming to NEMA 5-15R standards, ensuring compatibility and safety in wiring systems.

Specifications

• Application: Extra Hard Use
• Amperage Rating: 15A
• Voltage Rating: 125V
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Connection Type: Wire Grounding
• Material: Nylon
• Color: Black
• Product Weight: 0.1800 lbs
• Manufacturer Part #: PS5269X
• UPC: 785007237306

Features

• Quick-thread assembly screws and cord-grip screws come backed out, ready to wire for faster installation.
• See-through thermoplastic terminal chamber allows clear view of terminals and wire connections.
• Tapered wire wells guide conductors into captivated, staked clamping nuts for secure connections.
• Housing is keyed for fast alignment with terminal section.
• Chemical- and impact-resistant nylon housing with horizontal, easy-grip ribs on back body.
• Industrial-strength brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity; ground pin is reinforced for added strength and safety.
• Color-coded terminal screws positioned on the same plane and backed out for fast installation.
• Double-wipe, firm-grip ground contact and triple-wipe power contacts guarantee superior connection.
• Recessed cord-grip screw reduces screwdriver slippage, improving safety.
• Rugged external two-piece cord grip provides uniform pressure for superior conductor retention.
• Internal dust shield keeps terminals free of contaminants.
