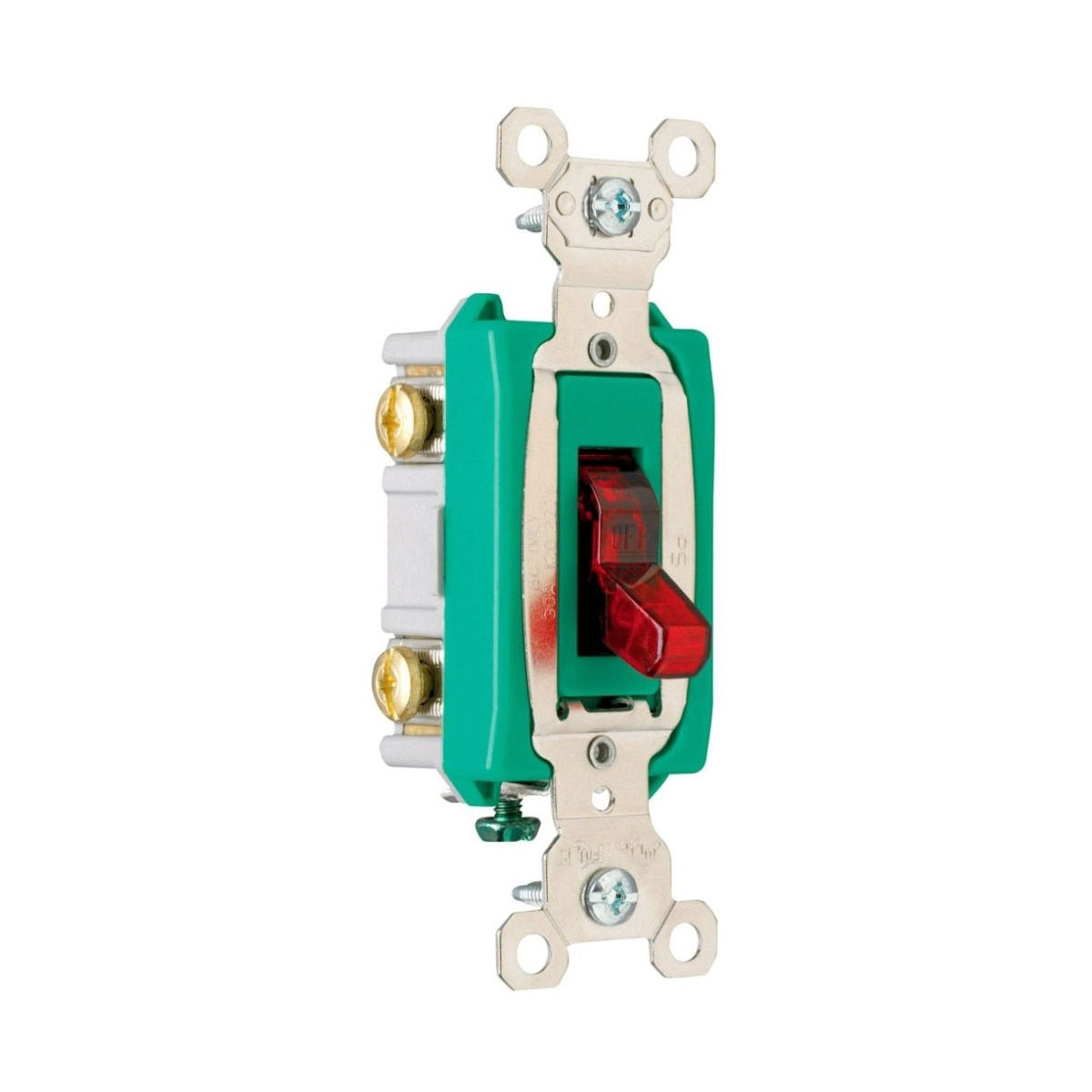

PASS&SEYMOUR PS30AC2-RPL 30A 120/277VAC Double Pole Pilot Lighted Switch

The PASS&SEYMOUR PS30AC2-RPL is an industrial-grade, double pole pilot lighted toggle switch designed for 30 Amp, 120/277 VAC applications. It is suitable for use in electrical distribution and lighting solutions where robust, reliable switching is required. This switch features a wall-mount design and bare insulation, making it compatible with standard wiring practices in commercial and industrial environments.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: PS30AC2RPL
• Amperage Rating: 30 Amp
• Contact Rating: 30 Amp, 120/277 VAC
• Number of Poles: Double Pole
• Mounting: Wall
• Insulation: Bare
• Product Weight: 0.2400 lbs
• Application: Industrial

Features

• Pilot lighted toggle switch illuminated when ON for easy status monitoring
• Heavy-duty, industrial specification grade construction
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
• Cam control and spring actuator provide positive make and break with minimum arcing
• Oversized silver alloy contacts for long life and improved heat dissipation
• Glass-reinforced nylon back body for durability and strength
• Nickel-plated steel strap with integral ground for superior corrosion resistance
• Auto-ground clip ensures positive grounding
• Side and external screw-pressure-plate back wire accommodates #14‚Äì#10 AWG copper or copper-clad wire
• Shallow design facilitates ease of installation
• UL Listed (File Number E140597), cULus Listed (File Number LR17446), meeting UL20 and CSA standards
