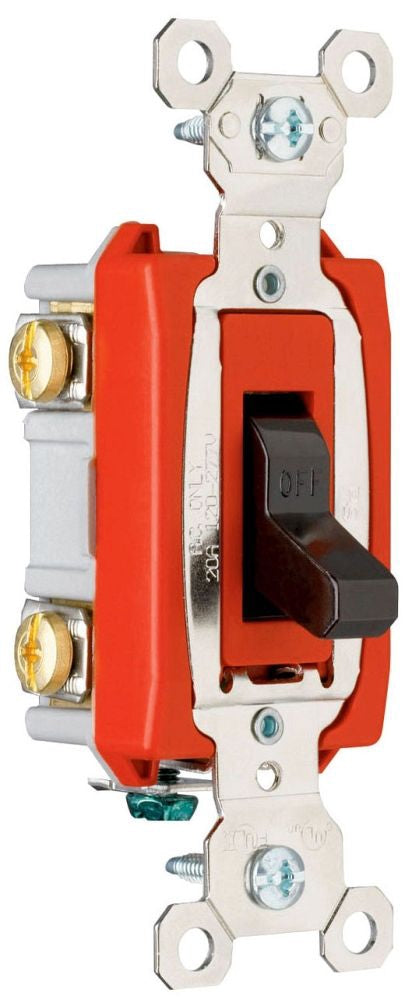

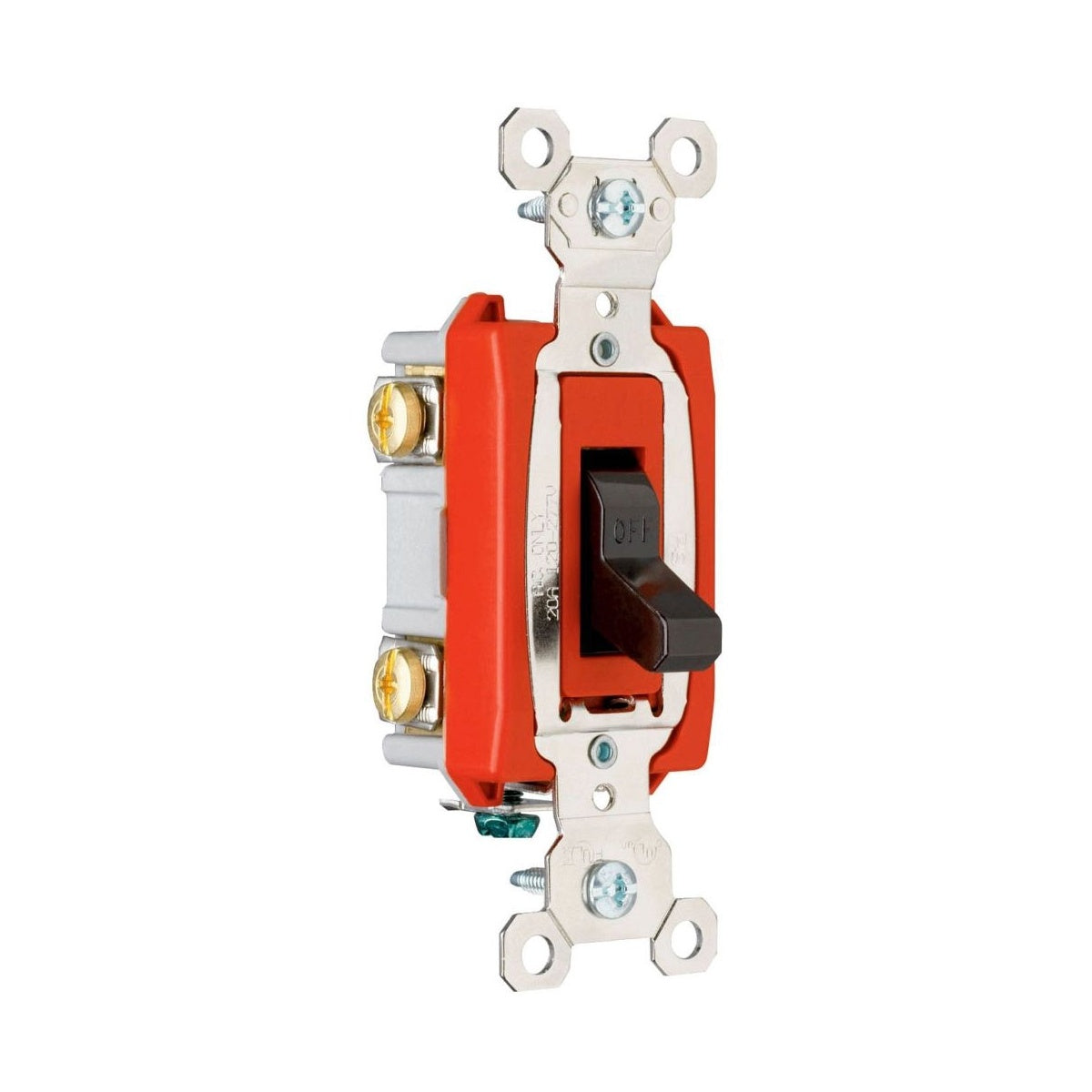

PASS&SEYM. PS20AC2-HP 20A 277VAC High Horsepower Manual Motor Starting Switch

The PASS&SEYM. PS20AC2-HP is a double pole, single phase manual motor starting switch designed for industrial applications. It provides reliable switching at 20 amps and 120/277 VAC, suitable for heavy-duty electrical distribution and lighting solutions. This switch is ideal for use by electrical distributors and switchgear suppliers needing durable, high horsepower rated components for wire and cable installations.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: PS20AC2HP
• Amperage Rating: 20 A
• Contact Rating: 20 amp, 120/277 VAC
• Number of Poles: Double Pole (DP)
• Application: Industrial
• Mounting: Wall
• Insulation: Bare
• Product Weight: 0.2300 lbs
• UPC: 785007195965

Features

• High horsepower rating suitable for motor starting applications
• Double pole design for reliable switching
• Compact wall-mount configuration for ease of installation
• Oversize silver contacts for long life and better heat dissipation (per related product line features)
• Designed for use with #14 AWG to #10 AWG copper or copper-clad conductors
• No overload protection included

Downloads & Links

• Spec Sheet
