PASS&SEYM. P2-42-RRD PL BX 2G 42 CU IN R+D CAPT NAIL - Electrical Box for Commercial/Residential Applications

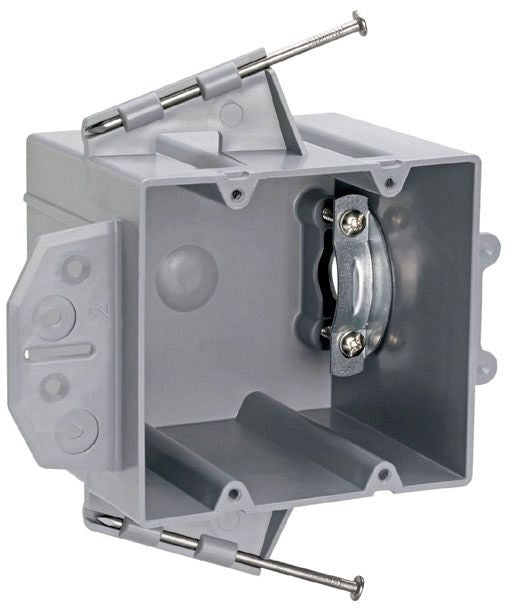

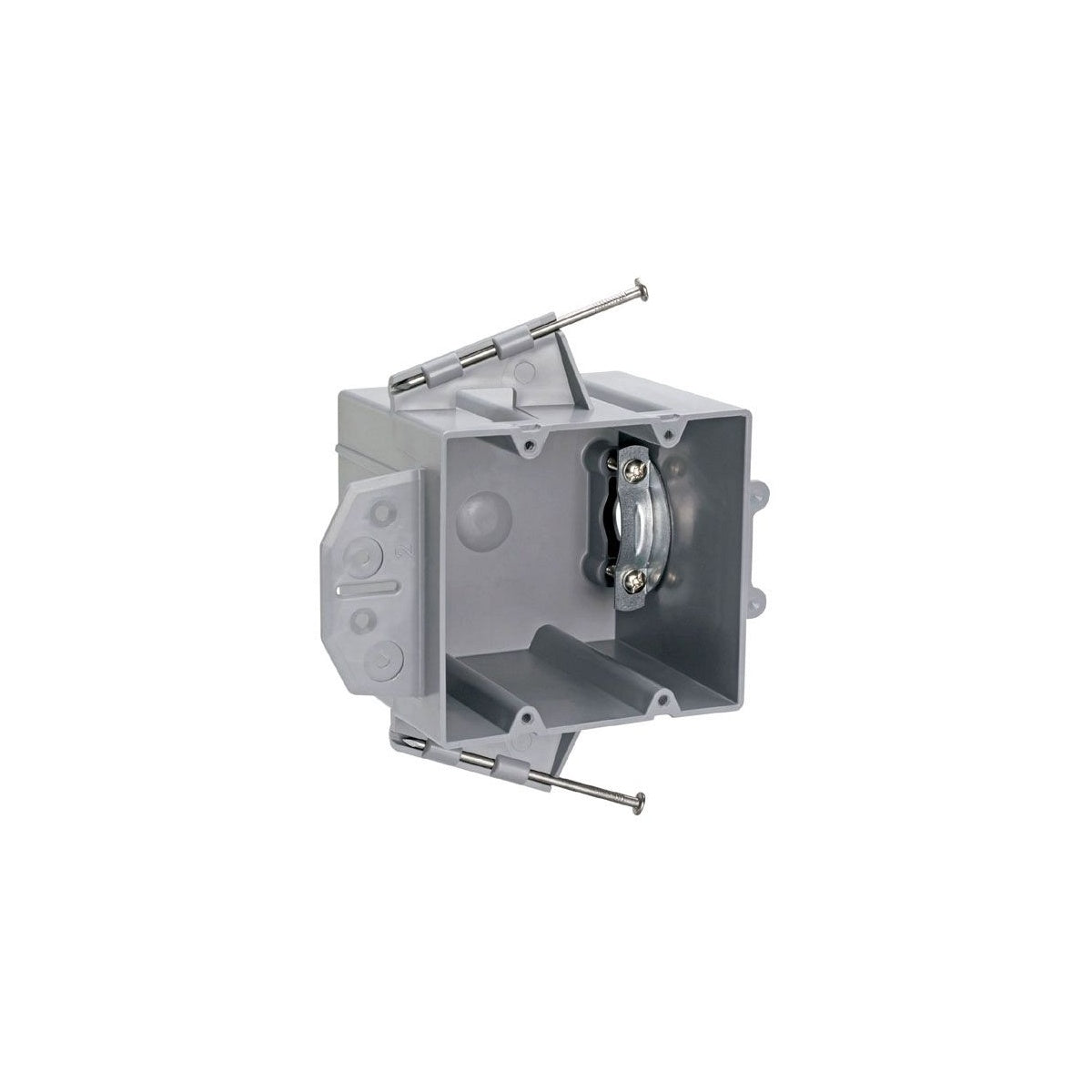

This Pass & Seymour plastic electrical box is designed for commercial and residential wiring applications, providing a reliable solution for mounting electrical devices. It is suitable for use as a range and dryer box with a 1/2" offset for wood or steel stud mounting. The box features captive mounting nails and a metal cable clamp for secure installation, accommodating wire sizes from 16 to 6 AWG. Its thermoplastic construction ensures durability and electrical insulation, making it a practical choice for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: P242RRD
• Application: Commercial/Residential
• Material: Thermoplastic
• Color: Gray
• Mounting: Wall
• Insulation: Bare
• Cubic Capacity: 42 in¬≥
• Number of Outlets: 2
• Dimensions (L x W x D): 3.75" x 4" x 4"
• Wire Fill Capacity (AWG): 16 No. 10, 14 No. 8, 8 No. 6
• Product Weight: 0.44 lbs
• UPC: 785007306156

Features

• Captive mounting nails at each end for secure and accurate installation
• Factory-installed metal cable clamp to accommodate 10 through 6 gauge wires
• 1/2" offset design for easy mounting on wood or steel studs
• Thermoplastic construction for electrical insulation and durability
• Complies with UL Listing and classified for 2-hour fire resistance (pending)
