PASS&SEYM. L1730-C Connector 30A 600V Industrial Electrical Distributor

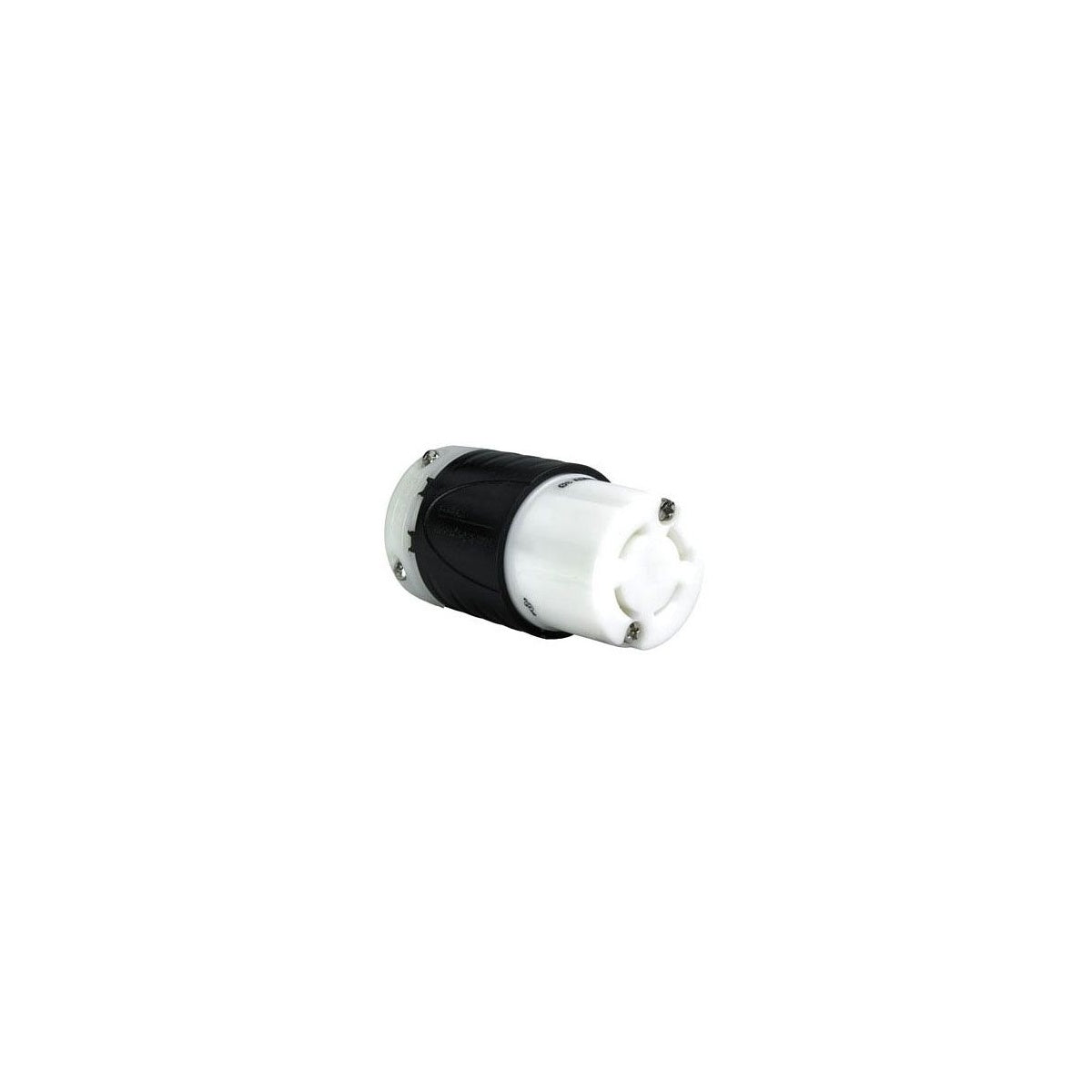

The PASS&SEYM. L1730-C is a 30 Amp, 600 Volt, 3 Pole, 4 Wire locking connector designed for industrial applications. It is suitable for use in wiring and cable assemblies where secure and reliable electrical connections are required. This connector complies with NEMA L17-30R standards and is ideal for integration within lighting solutions, wire and cable systems, and switchgear supplied by electrical distributors.

Specifications

• Application: Industrial
• Amperage Rating: 30 Amp
• Voltage Rating: 600V
• Number of Poles: 3
• Number of Wires: 4
• Material: Thermoplastic
• Color: Black
• NEMA Rating: L17-30R
• Product Weight: 0.4000 lbs
• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part Number: L1730C
• UPC: 785007173017

Features

• Locking device ensures secure connection in industrial environments
• Black back with white front body for easy identification
• Compatible with cord diameters from 0.225" to 1.150" (per NEMA L17-30 standards)
• Conforms to NEMA WD-1 and WD-6 standards
• UL498, FSUL WC596, and CSA certified for safety and reliability
