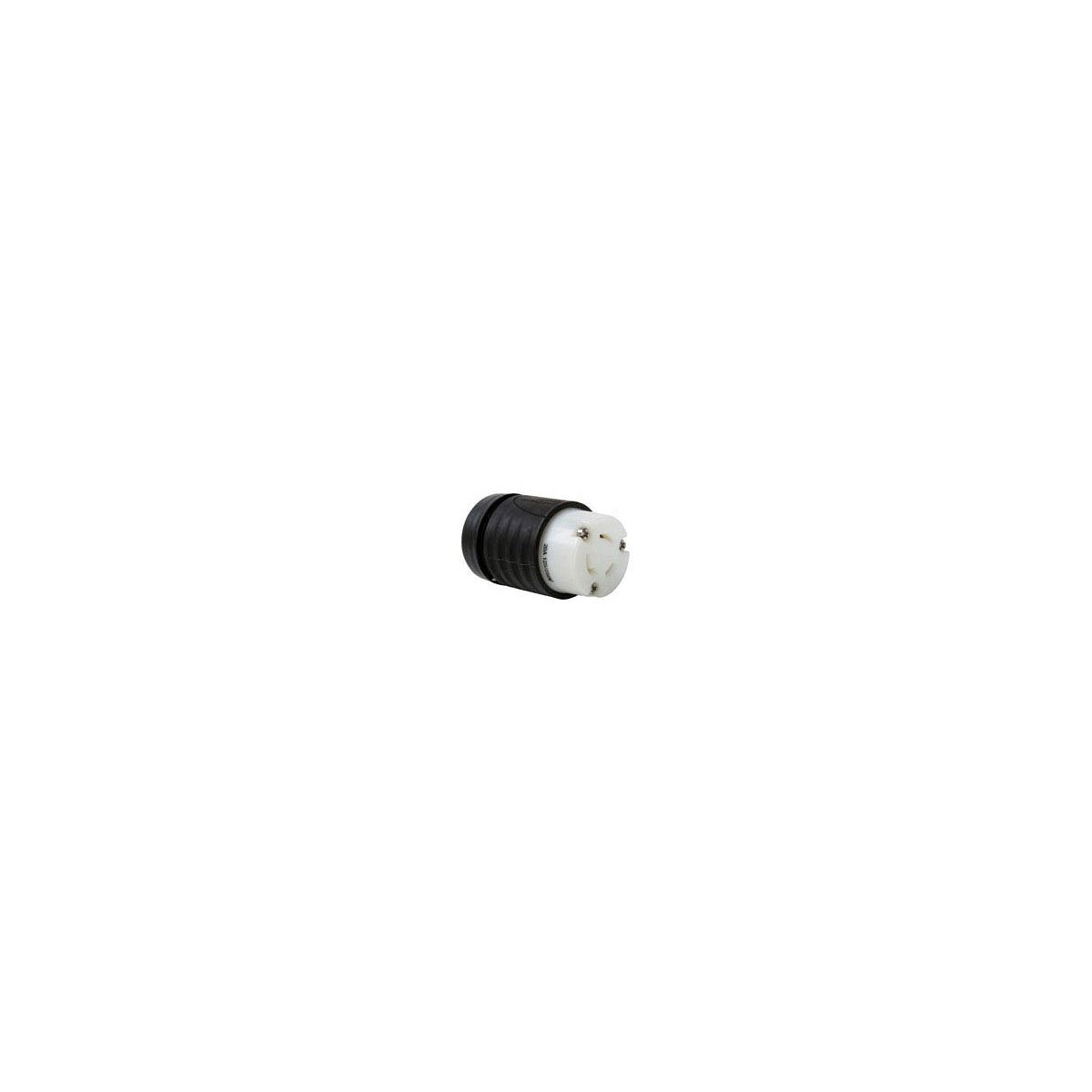

PASS&SEYM. L1020-C TURNLOK CONNECTOR 3WIRE 20A125/250V Electrical Connector

The PASS&SEYM. L1020-C Turnlok Connector is a 3-pole, 3-wire non-grounding electrical connector designed for commercial applications. It supports 20 ampere current at 125/250 volts and conforms to the NEMA L10-20R configuration. This connector is suitable for use in wiring and cable installations requiring secure locking connections, making it ideal for electrical distributors, lighting solutions, and switchgear suppliers.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: L1020C
• Amperage Rating: 20 A
• Voltage Rating: 125/250 V
• Number of Poles: 3
• Number of Wires: 3
• NEMA Rating: L10-20R
• Material: Thermoplastic
• Color: Black
• Product Weight: 0.3800 lbs
• Application: Commercial
• UPC: 785007102017

Features

• Turnlok locking design ensures secure and reliable connection
• Non-grounding configuration suitable for specific industrial applications
• Durable thermoplastic construction for long-lasting performance
• Compatible with cord diameters ranging from .225" to 1.150" (per related product family specs)
• Conforms to NEMA WD-1 and WD-6 standards
