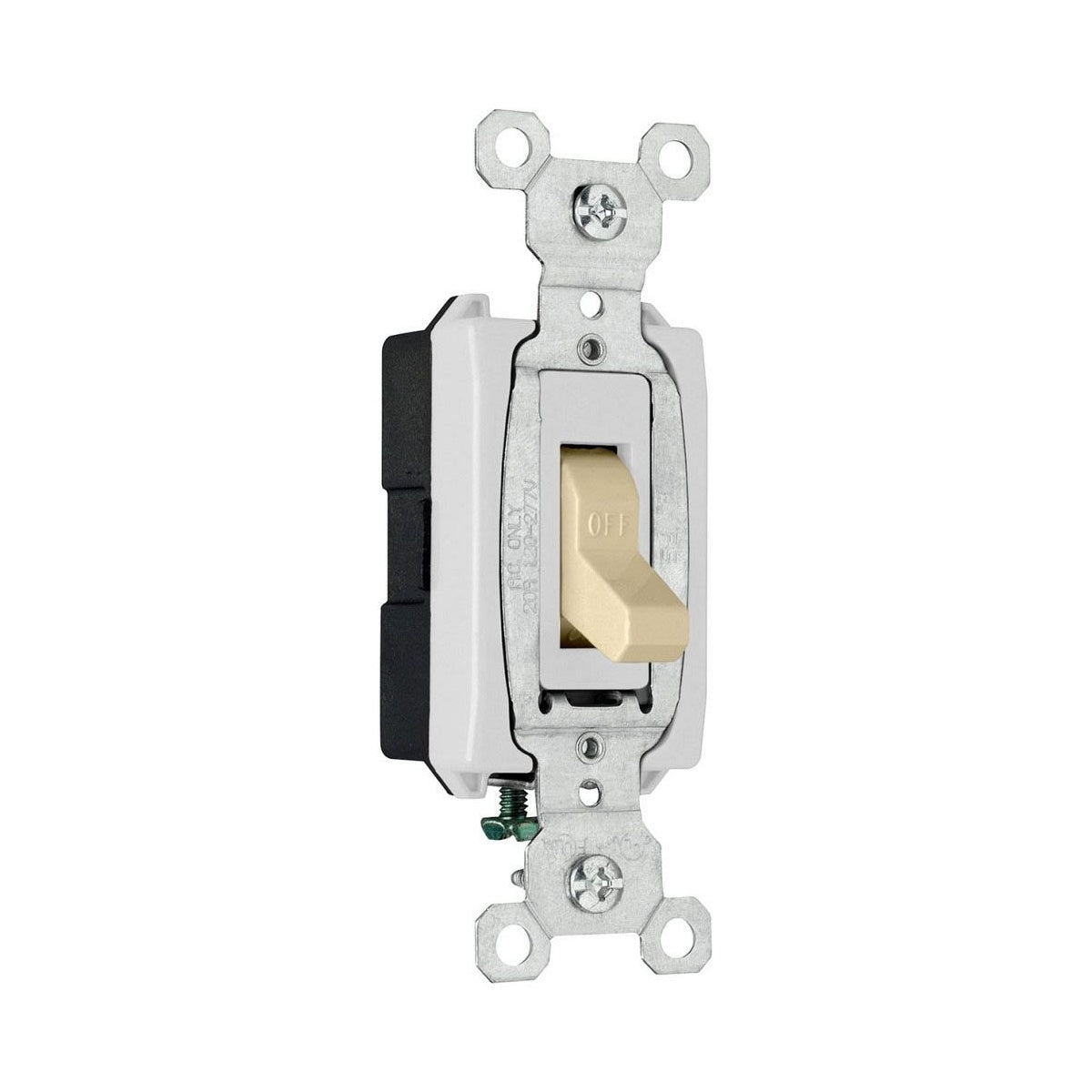

PASS&SEYM. CSB20AC1-I 20A 120/277VAC Switch for Commercial Electrical Applications

This Pass & Seymour CSB20AC1-I is a single pole, 20 Amp, 120/277 VAC hard use specification grade switch designed for commercial applications. It provides reliable switching solutions for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers requiring durable and high-performance components. The switch features a wall mounting design with a nylon enclosure and bare insulation, suitable for #14 to #10 AWG copper or copper-clad wire installations.

Specifications

• Amperage Rating: 20 Amp
• Voltage Rating: 120/277 VAC
• Number of Poles: Single Pole
• Contact Rating: 20 Amp, 120/277 VAC
• Mounting: Wall
• Enclosure Material: Nylon
• Insulation: Bare
• Product Weight: 0.1700 lbs

Features

• One-piece brass alloy contact arm for reliable electrical performance
• One-piece plated steel strap with integral ground for corrosion resistance
• Glass-reinforced nylon back body for durability and strength
• High strength thermoplastic polycarbonate toggle resists breaking and chipping
• Heavy-duty toggle bumpers for smooth and quiet operation
• Cam designed for fast make with positive break action to minimize arcing and prolong switch life
• Oversized silver alloy contacts for longer dependable switch life
• Tri-drive terminal and mounting screws for efficient installation
• Auto-ground clip assures positive grounding
• Side and external screw-pressure-plate back wire rated for #14 to #10 AWG copper or copper-clad wire
• Locking support provides resistance to face and back body separation
