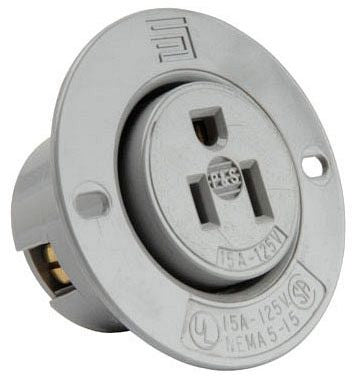

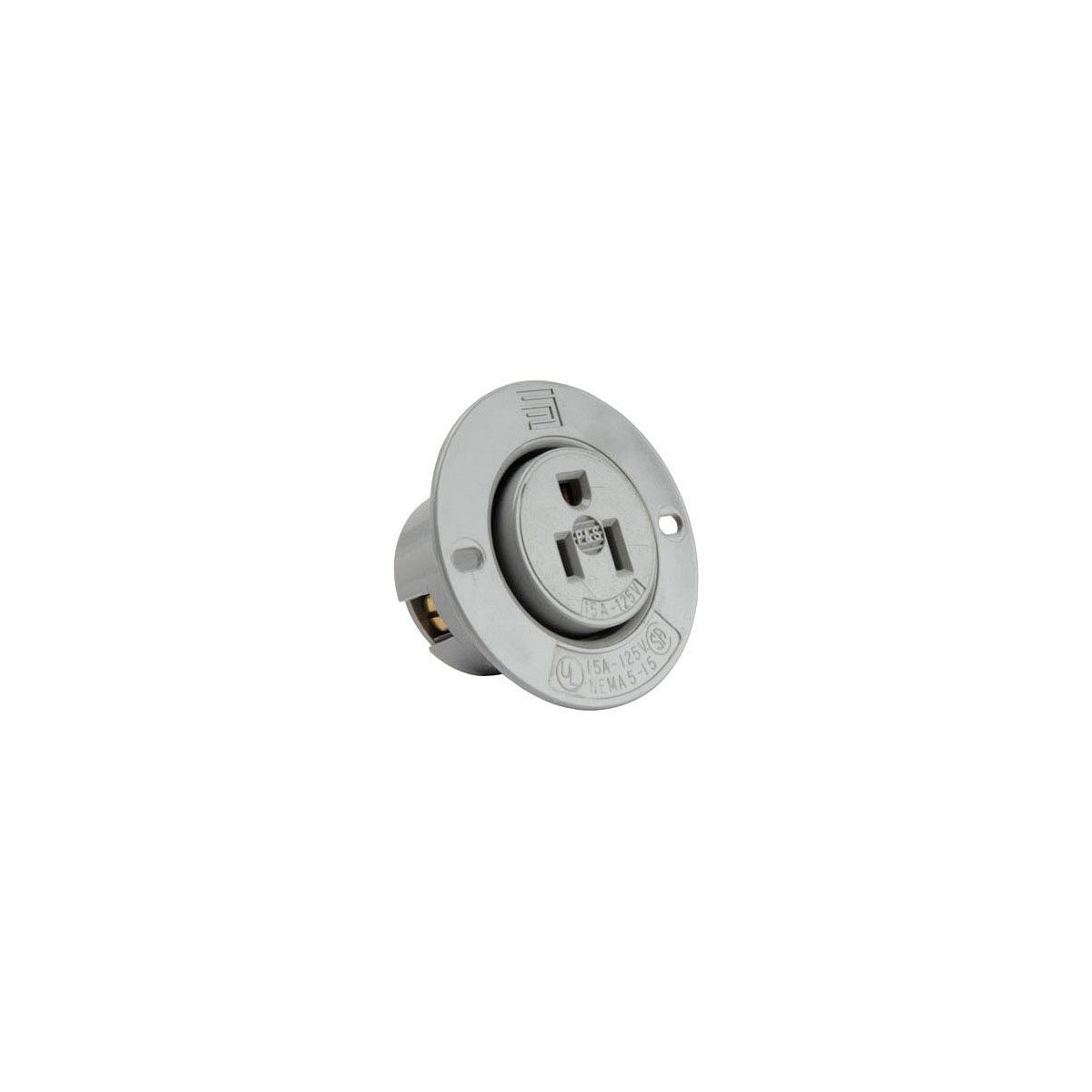

PASS&SEYM. 5279-SS Flanged Outlet 15A 125V Electrical Distributor Component

The PASS&SEYM. 5279-SS is a commercial-grade flanged outlet designed for reliable electrical connections in lighting solutions and wire and cable installations. This device is suitable for use by electrical distributors and switchgear suppliers requiring a durable and compliant 15 amp, 125 volt receptacle. It features a 2-pole, 3-wire grounding configuration with a NEMA 5-15R rating, ensuring compatibility with standard straight blade plugs.

Specifications

• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: 5279SS
• Application: Commercial
• Material: Thermoplastic
• Amperage Rating: 15 A
• Voltage: 125 V
• Number of Poles: 2 (Double Pole)
• Number of Wires: 3
• NEMA Rating: 5-15R
• Product Weight: 0.1800 lbs
• UPC: 785007527919

Features

• All thermoplastic construction provides excellent impact and chemical resistance
• NEMA configuration molded on flange for easy field identification
• Available in gray or black color options
• Meets UL 498 and CSA standards for safety and performance
• Designed for 2 pole, 3 wire grounding applications
