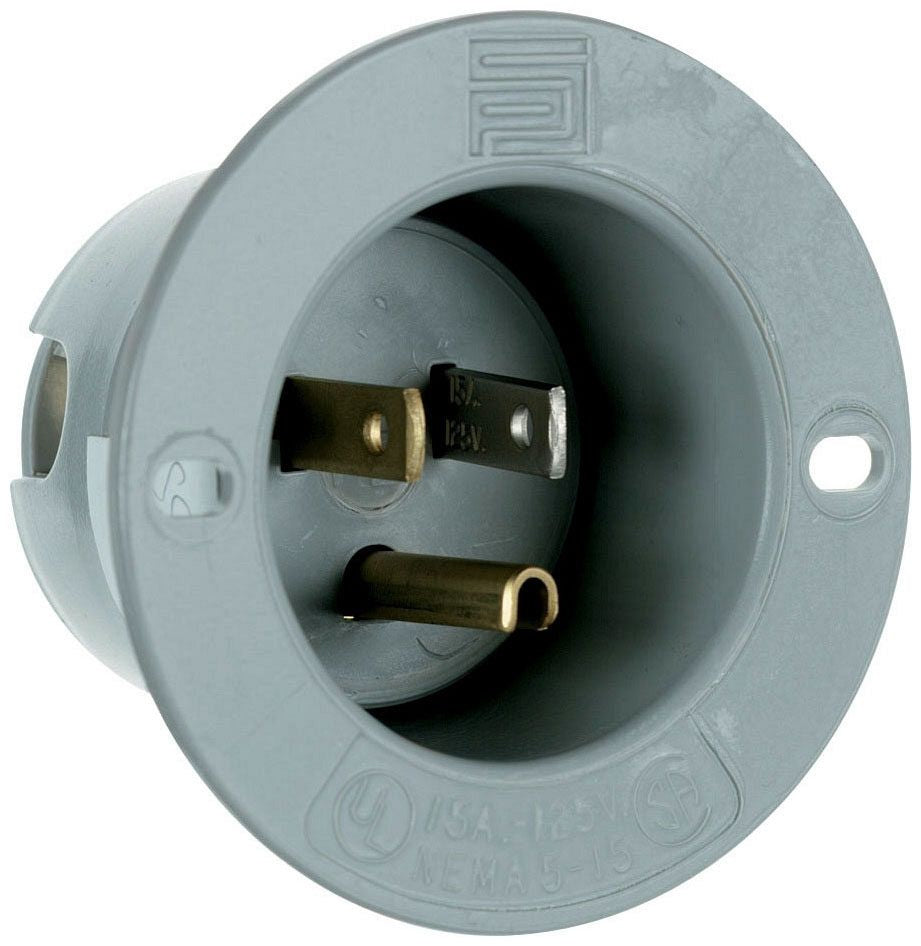

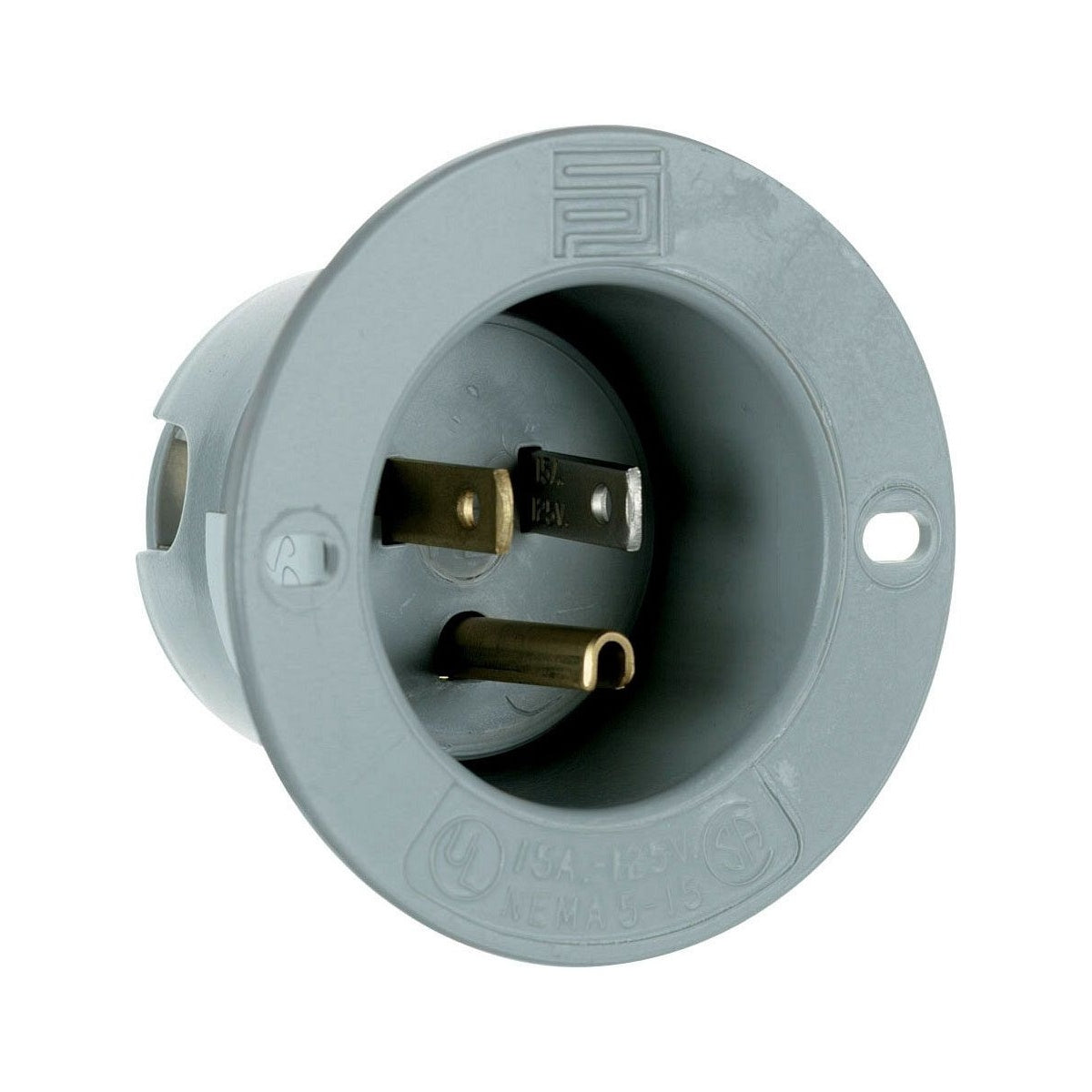

PASS&SEYM. 5278-SS Flanged Inlet 3W 15A 125V Electrical Connector

This Pass & Seymour 5278-SS flanged inlet is designed for medium duty electrical applications, providing reliable wire grounding connection with a 2-pole, 3-wire configuration. It is suitable for use by electrical distributors and switchgear suppliers requiring durable and compliant wire and cable accessories for 15 amp, 125 volt circuits.

Specifications

• Application: Medium Duty Devices
• Material: Nylon
• Connection: Wire Grounding
• NEMA Rating: 5-15P
• Number of Poles: 2
• Number of Wires: 3
• Amperage Rating: 15A
• Product Weight: 0.1400 lbs
• Manufacturer Part #: 5278SS
• UPC: 785007527810

Features

• All thermoplastic construction provides excellent impact and chemical resistance
• NEMA configuration molded on flange for easy field identification
• Accepts competitor inlets and outlets
• OSHA lock-out/tag-out provision molded-in
• Glass-filled polycarbonate construction with stainless steel hardware
• Color: Gray (as shown in product image and catalog)
