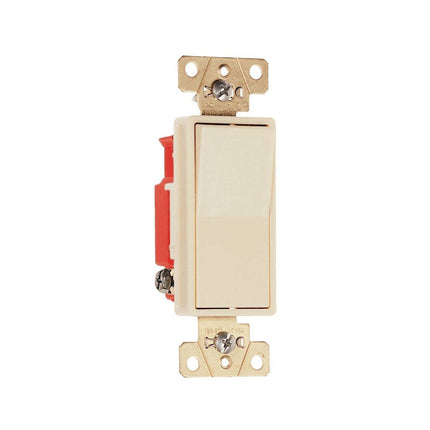

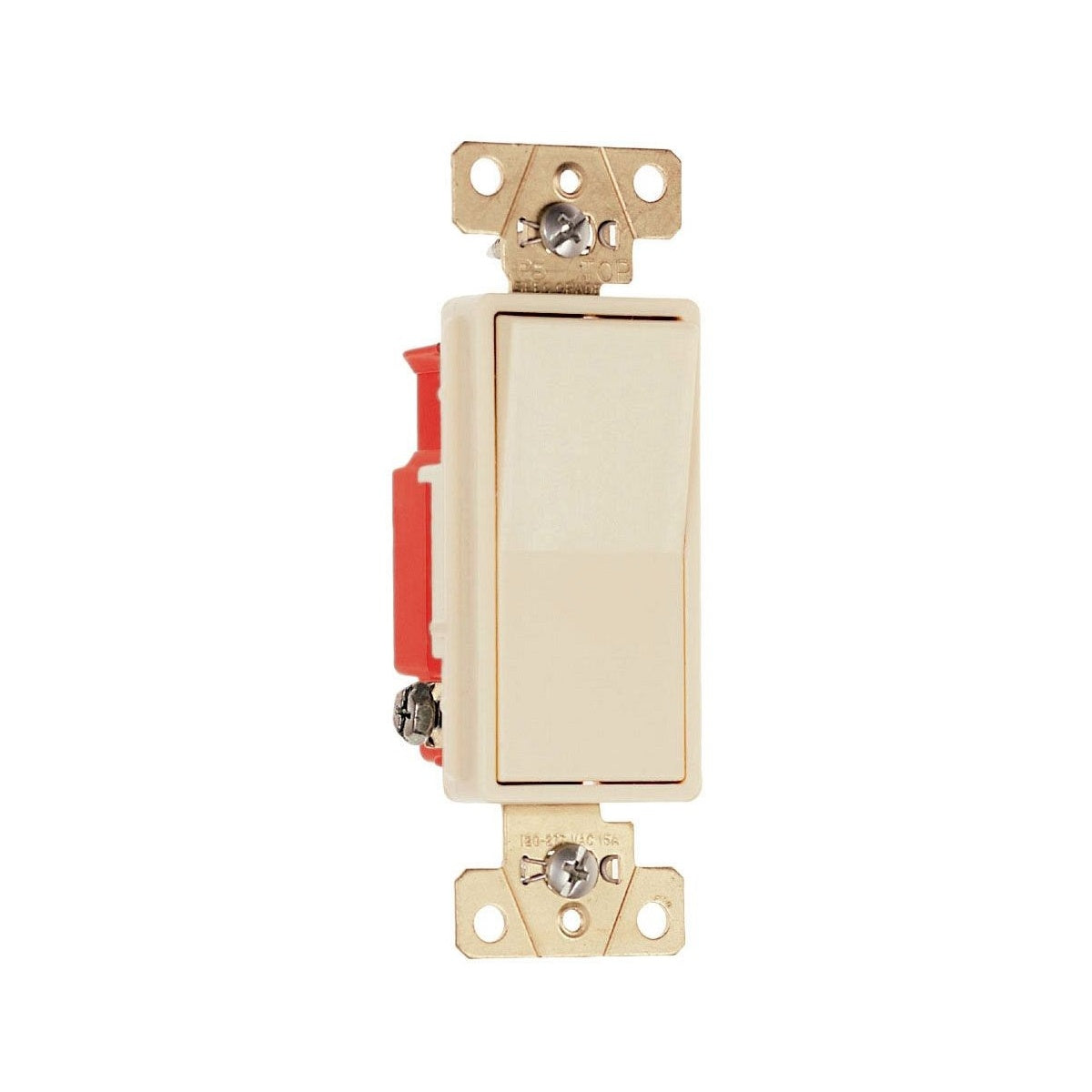

PASS&SEYMOUR 2621-I Switch 20A 120/277V Grounded

The PASS&SEYMOUR 2621-I is a decorator specification grade paddle switch designed for commercial and residential electrical applications. This single-pole, 20 amp switch operates at 120/277 volts and is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable switching components. It features a wall-mount design with a cushioned thermoplastic paddle for smooth operation, making it an essential component for switchgear suppliers and electrical installations.

Specifications

• Application: Commercial/Residential
• Contact Rating: 20 Amp, 120/277V
• Number of Poles: 1
• Amperage Rating: 20A
• Mounting: Wall
• Actuator: Paddle
• Product Weight: 0.1900 lbs
• UPC: 785007539332

Features

• Impact-resistant polycarbonate back body and frame for structural strength and durability
• Cushioned thermoplastic paddle ensures smooth, quiet, long-term operation
• Unique single rocking butterfly contact design provides long-term consistent performance with fewer moving parts
• Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 AWG stranded or solid copper/copper clad wire
• Terminals made of high conductivity brass and serrated for maximum wire gripping
• Silver alloy contacts integrally formed to the butterfly actuator assure reliable performance
• Integral auto-ground clip for positive grounding to metal boxes
• Tri-drive ground, terminal, and mounting screws; all terminal screws backed out and ready to install
