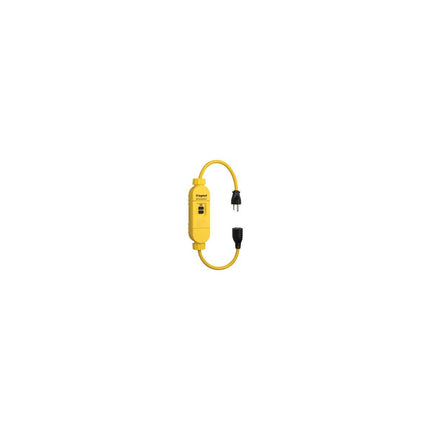

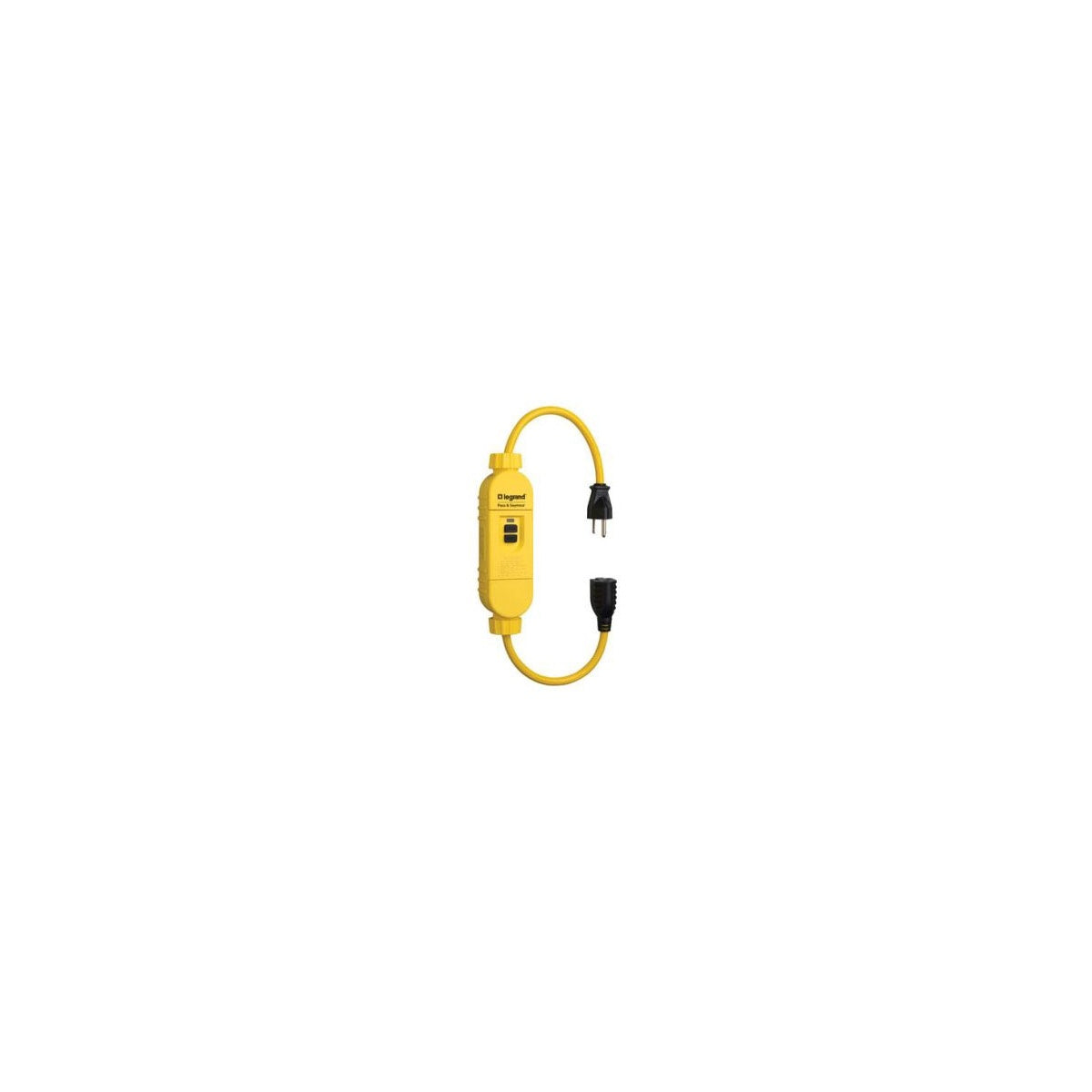

PASS&SEYM. 2094-PC2M 20A Port GFCI Manual Reset

The PASS&SEYM. 2094-PC2M is a portable Ground Fault Circuit Interrupter (GFCI) designed for commercial electrical applications. It provides reliable ground fault protection for temporary wiring setups and is suitable for use by electrical distributors and switchgear suppliers requiring compliant and durable GFCI solutions. This device operates at 125 volts with a 20 amp rating and includes a manual reset feature for controlled operation.

Specifications

• Application: Commercial
• Amperage Rating: 20 A
• Voltage: 125 V
• Frequency Rating: 60 Hz
• Number of Poles: 2 (Double Pole)
• Connection: 60 Hz
• Operating Temperature: -35¬∞C (-30¬∞F) to +66¬∞C (150¬∞F)
• Material: Thermoplastic
• Enclosure: Bare
• Dimensions (W x H x L): 3.25" x 1.9" x 5.25"
• Product Weight: 0.9 lbs
• Manufacturer: Pass & Seymour Wiring Devices & Accessories
• Manufacturer Part #: 2094PC2M
• UPC: 785007263930
• Standard Compliance: UL 943, UL 498, C22.2 No. 144, C22.2 No. 42

Features

• Manual reset for controlled ground fault protection
• Durable thermoplastic housing suitable for commercial use
• Portable design with 2-foot cord and straight blade plug
• Trip threshold of 5 ¬±1 mA with nominal trip time of 0.025 seconds
• Open neutral protection to enhance safety
• RoHS compliant, meeting hazardous substances restrictions
