Parallel Jaw Grip 4-1/2-Inch Length
SKU: #352553
Part: #1685-31
UPC: 092644471780
Parallel Jaw Grip 4-1/2-Inch Length
SKU: #352553
Part: #1685-31
UPC: 092644471780
Next day delivery
Description

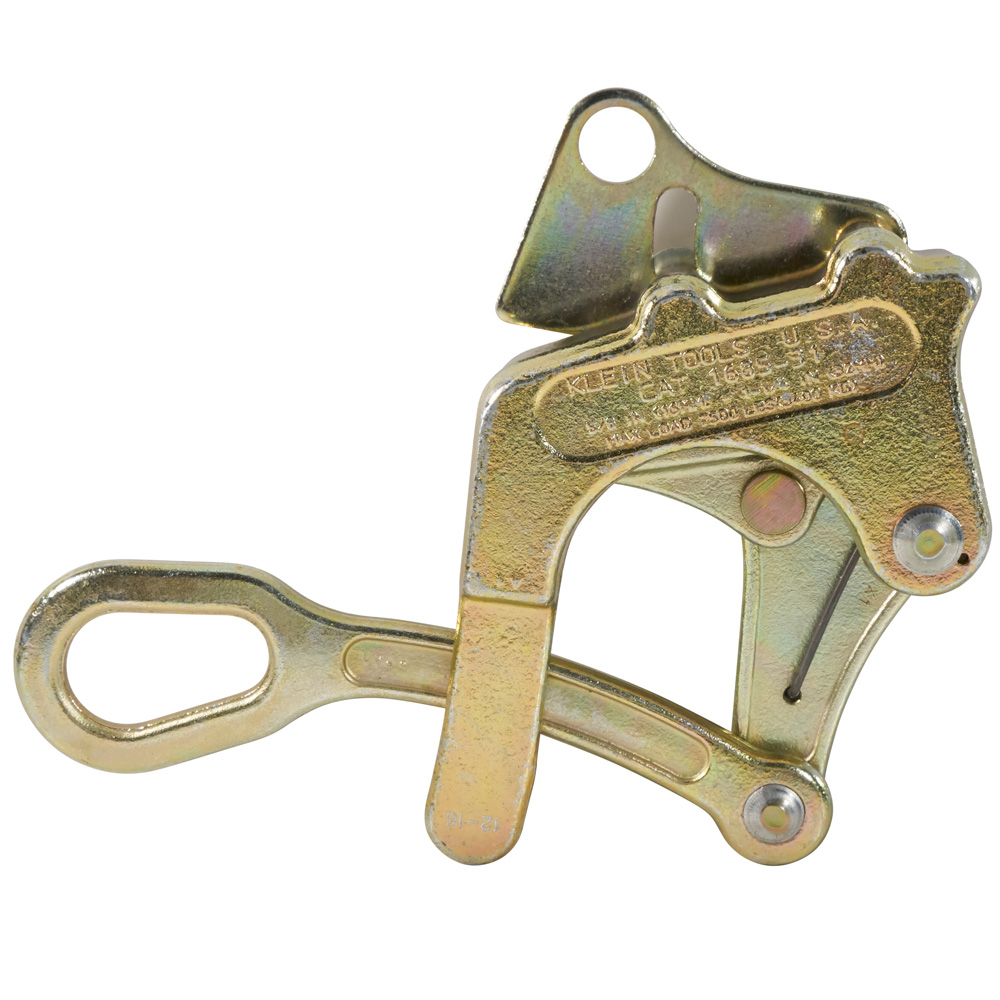

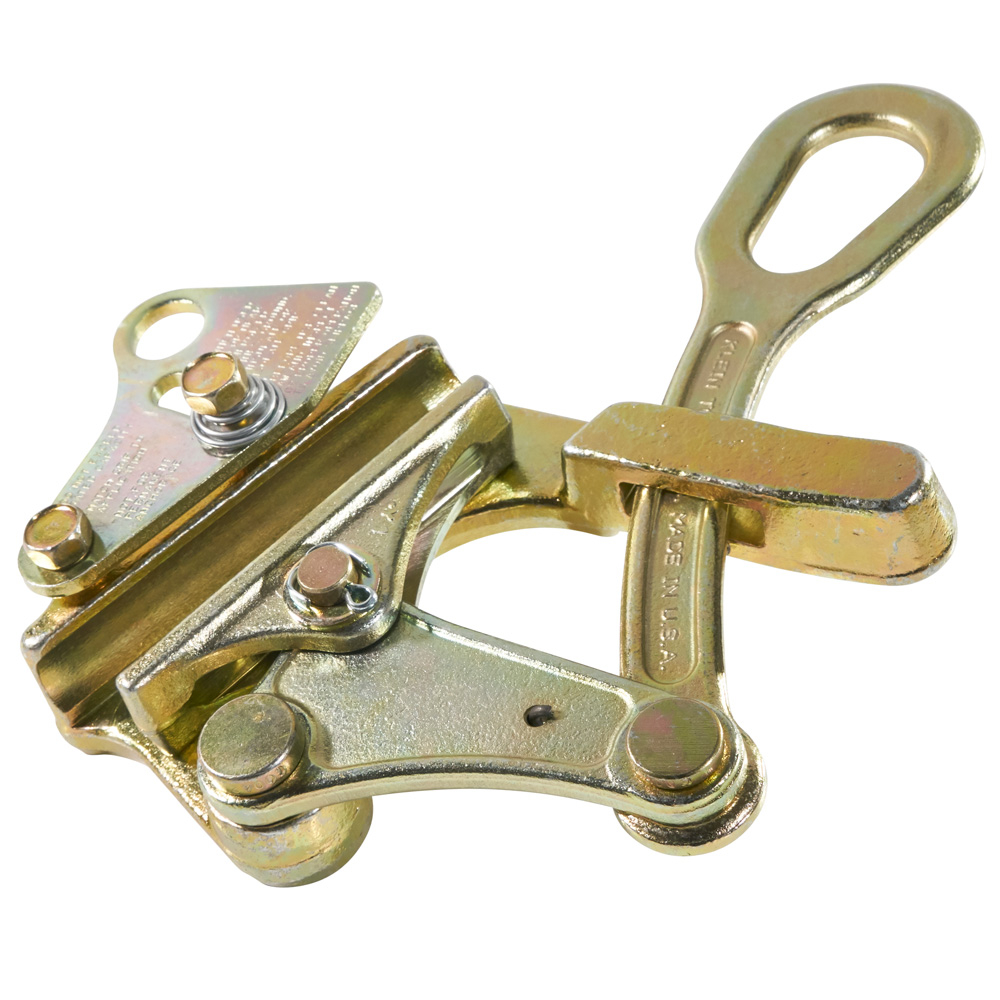

Parallel Jaw Grip 4-1/2-Inch Length – Cable Jaw Grip for Electrical Applications
The Klein Tools Parallel Jaw Grip 4-1/2-Inch Length is a lightweight, compact tool designed for pulling a wide range of cable sizes and types. It features a round inside-jaw contour that maximizes contact area to minimize conductor damage, making it suitable for use by electrical distributors and professionals handling wire and cable installations. The serrated lower jaw firmly grips insulated cables and conductors, while a latch mechanism prevents the grip from falling if the jaw disengages. This grip is ideal for cable pulling applications and supports safe and efficient handling of messenger, EHS, and guy strand cables.
Specifications
- Type: Compact
- Application: Cable Pulling
- Special Features: Hot Latch, Spring
- Overall Length: 11.7 in (29.7 cm)
- Cable Type: Messenger, EHS, Guy Strand
- Cable Diameter: 0.625 in to 1.25 in (15.87 to 31.75 mm)
- Hot Latch: Yes
- Swing Latch: No
- Spring: Yes
- Locking Handle: No
- Jaw Type: Round - Serrated
- Jaw Length: 4.5 in (11.4 cm)
- Maximum Safe Load: 7,500 lb (3,400 kg)
- Weight: 4.8 lb (2.2 kg)
Features
- Round inside-jaw contour for maximum cable contact and minimized conductor damage
- Serrated lower jaw for secure gripping of insulated cables and conductors
- Latch prevents grip from falling if jaw disengages from cable
- Lightweight and compact design for ease of use in various cable pulling tasks
- Spring-loaded mechanism for reliable grip operation
