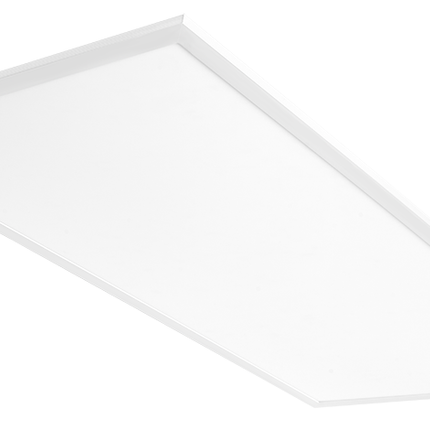

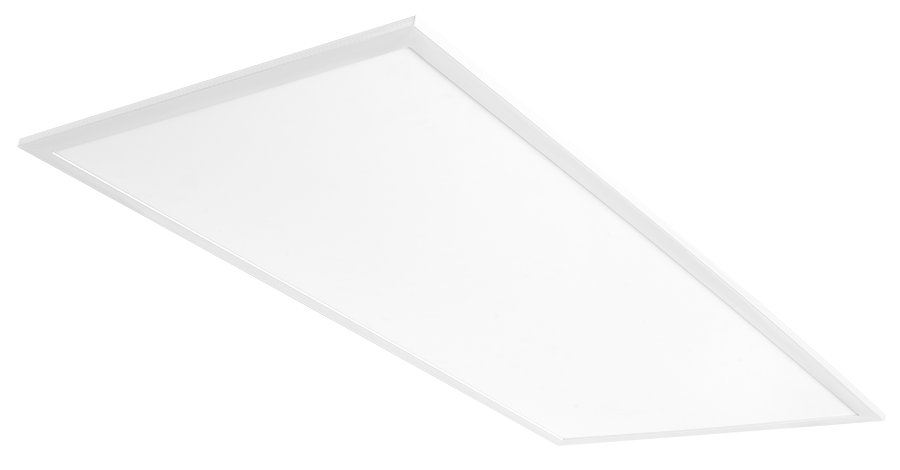

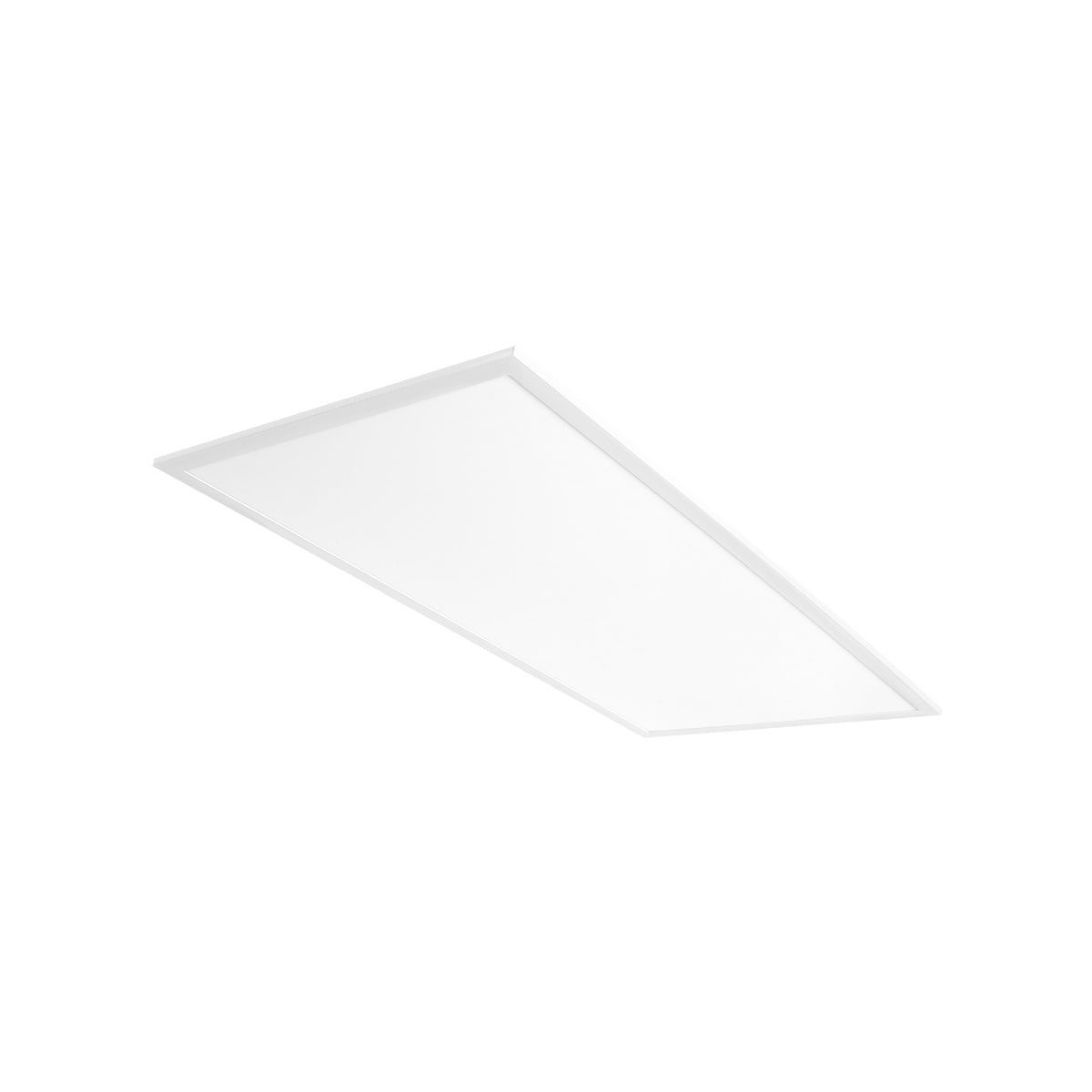

PANELS & TROFFERS 4431 LUMENS EZPAN 2X4 40W 3000K 0-10V DIMMING – LED Lighting Panel

The PANELS & TROFFERS 4431 LUMENS EZPAN 2X4 40W 3000K 0-10V DIMMING by RAB is a high-efficiency LED lighting panel designed for indoor recessed ceiling applications. Ideal for use in commercial and institutional environments, this fixture is suitable for installation in insulated and non-insulated ceilings with 9/16” or 15/16” flat tee-grid systems. It supports advanced lighting controls with 0-10V dimming capability and provides consistent, energy-efficient illumination. This product is well-suited for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers looking for reliable, code-compliant LED fixtures.

Specifications

• Manufacturer: RAB
• Model Number: EZPAN2X4-40Y/D10
• Lumens Output: 4,485 lumens
• Input Wattage: 41 watts
• Efficacy: 110 lumens per watt
• Color Temperature: 3000 kelvins
• Color Rendering Index (CRI): 81
• Lens Material: Frosted Polystyrene
• Dimensions (L x W x H): 48.8" x 25.4" x 2.6"
• Product Weight: 13.669 lbs
• Ambient Operating Temperature: -22°F minimum
• Voltage: Universal voltage driver (120V-277V, 50/60 Hz)
• Dimming: 0-10V dimmable
• Installation: Indoor recessed ceiling mount only; requires above ceiling access
• Suitable for damp locations and insulated/non-insulated ceilings

Features

• Energy-efficient LED technology providing high lumen output with low wattage
• Frosted polystyrene lens for uniform light distribution and reduced glare
• 0-10V dimming compatibility for flexible lighting control and energy savings
• Designed for easy installation with pre-installed grid clips and support wire attachment points
• Compatible with 9/16” or 15/16” flat tee-grid ceiling systems
• UL approved wiring connections with conduit knockouts for code-compliant installation
• Battery backup option available for emergency lighting applications (see installation instructions)
• Durable construction suitable for commercial environments with damp location rating
• Supports Lightcloud-enabled models for networked lighting control (optional)

Downloads and Links

• EZPAN 1X4, 2X2, 2X4 Installation Instructions (PDF)
• EZPAN Wiring Diagrams and Dimming Instructions
• Battery Backup Operation and Maintenance Guide
• Lightcloud Integration and Setup Guide
• RAB Lighting Technical Support and Contact
