PANELS & TROFFERS 3679 LUMENS EZPAN 2X4 30W 3000K 0-10V DIMMING
SKU: #109941
Part: #EZPAN2X4-30Y/D10
UPC: 019813680552
PANELS & TROFFERS 3679 LUMENS EZPAN 2X4 30W 3000K 0-10V DIMMING
SKU: #109941
Part: #EZPAN2X4-30Y/D10
UPC: 019813680552
Next day delivery
Description
PANELS & TROFFERS 3679 LUMENS EZPAN 2X4 30W 3000K 0-10V DIMMING – LED Lighting Solutions

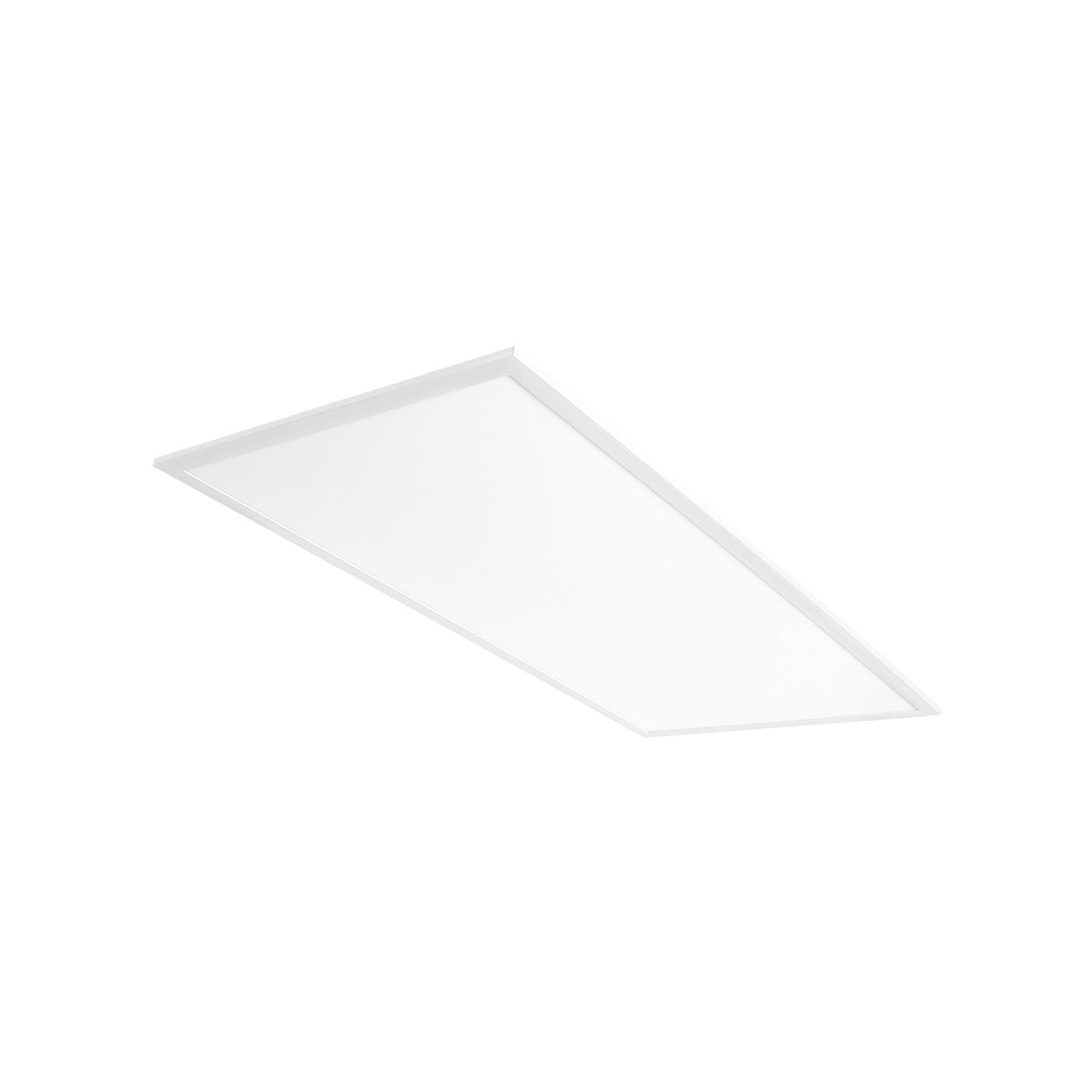

The PANELS & TROFFERS 3679 LUMENS EZPAN 2X4 30W 3000K 0-10V DIMMING by RAB is a high-efficiency recessed LED panel designed for indoor ceiling applications. Ideal for electrical distributors and switchgear suppliers, this lighting solution provides uniform illumination with an efficacy of 110 lumens per watt. It is optimized for use in commercial and institutional environments requiring energy-efficient lighting with smooth dimming capabilities via 0-10V controls. The fixture is compatible with standard 9/16” or 15/16” flat tee-grid ceilings and supports wiring and installation practices common to wire and cable professionals.
- Manufacturer: RAB
- Manufacturer Part #: EZPAN2X4-30Y/D10
- Dimensions (L x W x H): 48.8" x 25.5" x 2.9"
- Input Wattage: 32 watts
- Lumens Output: 3,549 lumens
- Efficacy: 110 lumens per watt
- Color Temperature: 3000 kelvins
- Color Accuracy: 81 CRI (Color Rendering Index)
- Lens Material: Frosted Polystyrene
- Operating Ambient Temperature: Down to -22°F
- Product Weight: 16.01 lbs
- UPC: 019813680552
Specifications
- Energy-efficient LED panel optimized for commercial indoor recessed ceiling applications
- Compatible with 9/16” or 15/16” flat tee-grid ceilings in both insulated and non-insulated ceilings
- Supports 0-10V dimming for smooth and precise light level control
- Universal voltage driver enabling operation from 120V to 277V, 50/60 Hz
- Frosted polystyrene lens ensures uniform light distribution with reduced glare
- Suitable for damp locations and built to meet applicable electrical and safety codes
- Requires independent support to building structure per installation codes
- Simple installation with pre-installed grid clips and accessible splice box for wiring
- Designed for easy maintenance with non-abrasive cleaning instructions and no user-serviceable internal parts
