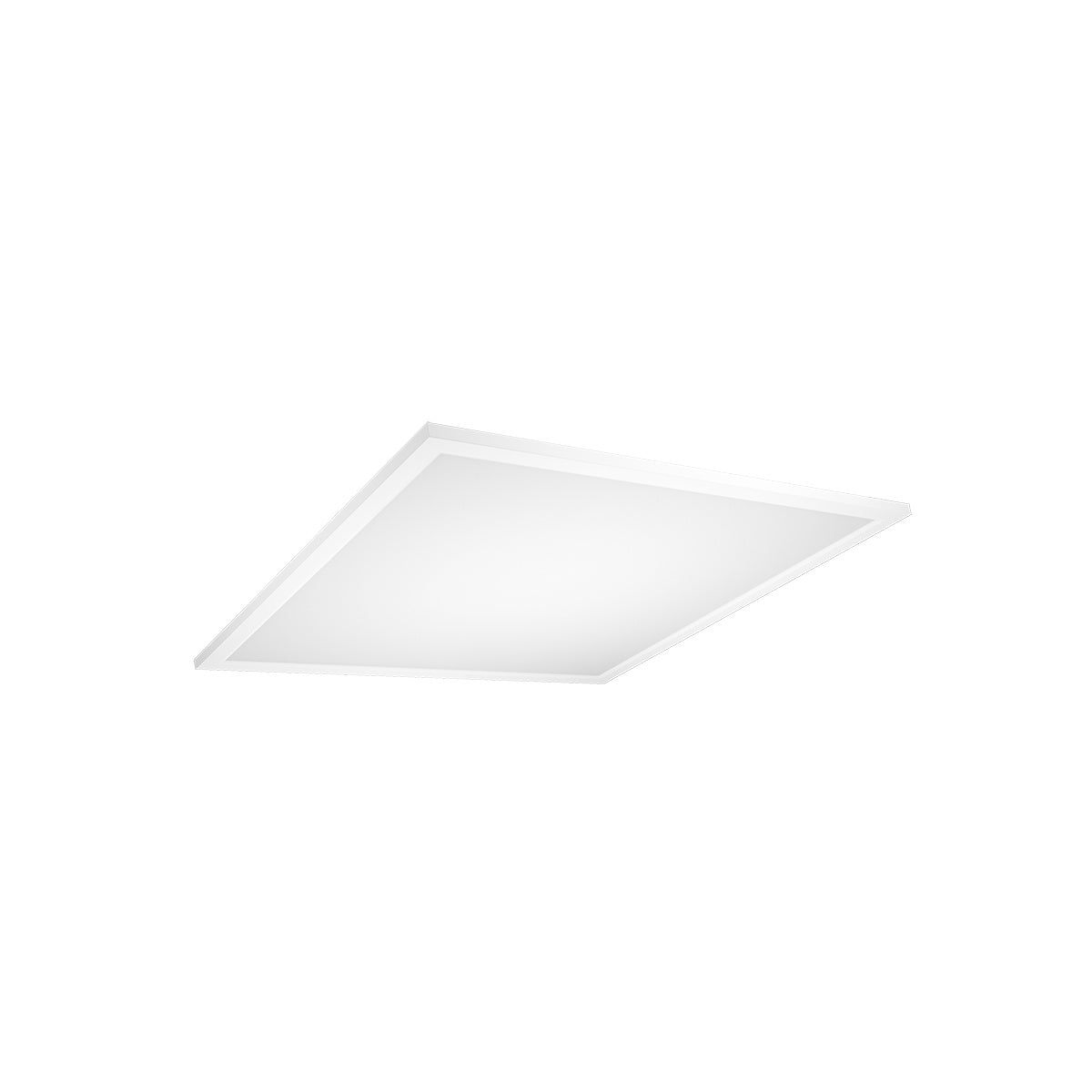

PANELS & TROFFERS 3186 Lumens T34 2X2 30W 3500K 0-10V Dimming LED Panel

This LED panel by RAB is designed for indoor recessed ceiling applications, providing efficient lighting solutions ideal for electrical distributors and lighting professionals. It features 3,186 lumens output with a color temperature of 3500 kelvins, suitable for commercial and institutional environments requiring reliable, energy-efficient illumination. The fixture supports 0-10V dimming and is compatible with 9/16” or 15/16” flat tee grid ceilings in both insulated and non-insulated installations. The frosted polystyrene lens ensures even light distribution, enhancing visual comfort.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: T34-2X2-30YN/D10
• Input Wattage: 27 watts
• Lumens: 3,186 lumens
• Efficacy: 118 lumens per watt
• Color Temperature: 3500 kelvins
• Color Accuracy: 81 CRI (Color Rendering Index)
• Lens Material: Frosted Polystyrene
• Dimensions: 23.62" Width x 23.62" Length x 2.36" Height
• Product Weight: 5.1920 lbs
• Operating Temperature: -20 degrees Celsius

Features

• 0-10V dimmable driver for adjustable lighting control
• Universal voltage operation from 120V to 277V, 50/60Hz
• Suitable for damp locations
• Designed for easy installation in recessed ceilings with accessible above-ceiling wiring
• Pre-installed grid clips for secure mounting on flat tee grid ceilings
• Frosted lens for uniform light diffusion and reduced glare
• Independent support required for fixture safety

Downloads & Links

• Instructions
