PANELS & TROFFERS 2904 LUMENS T34 2X2 30W 5000K 0-10V DIMMING
SKU: #116422
Part: #T34-2X2-30/D10
UPC: 019813834740
PANELS & TROFFERS 2904 LUMENS T34 2X2 30W 5000K 0-10V DIMMING
SKU: #116422
Part: #T34-2X2-30/D10
UPC: 019813834740
Next day delivery
Description

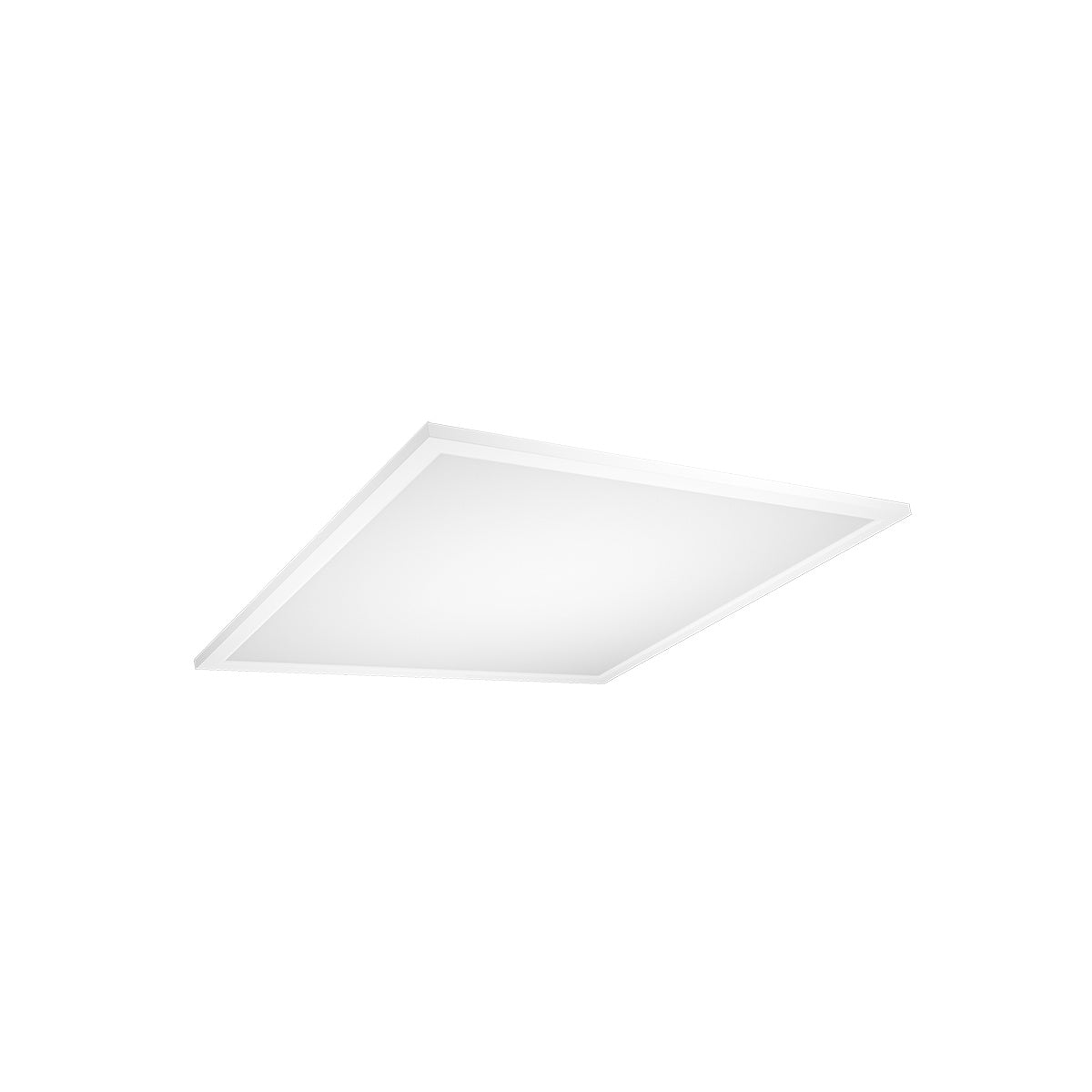

PANELS & TROFFERS 2904 LUMENS T34 2X2 30W 5000K 0-10V DIMMING LED Panel
This LED panel by RAB Lighting is designed for indoor recessed ceiling applications, providing efficient lighting solutions suitable for electrical distributors and lighting solution providers. It is ideal for use in commercial and institutional environments requiring energy-efficient, high-quality illumination with dimming capabilities. The panel supports 0-10V dimming and fits standard 9/16” or 15/16” flat tee grid ceilings, making it compatible with common ceiling systems.
Specifications
- Manufacturer: RAB
- Manufacturer Part #: T34-2X2-30/D10
- Input Wattage: 27 watts
- Lumens: 2,904 lumens
- Efficacy: 107 lumens per watt
- Color Temperature: 5000 kelvins
- Color Accuracy: 81 CRI (Color Rendering Index)
- Lens Material: Frosted Polystyrene
- Finish: White
- Operating Temperature: -20 degrees Celsius
- Product Weight: 6.23 lbs
- UPC: 019813834740
Features
- 0-10V dimmable driver compatible with 120V to 277V, 50/60Hz power supply
- Suitable for damp locations
- Designed for installation in insulated and non-insulated ceilings with flat tee grid systems
- Frosted lens provides uniform light distribution
- Independent support required for secure installation
- Easy wiring access via splice box with conduit knockouts
- Universal voltage driver for flexible electrical distributor applications
