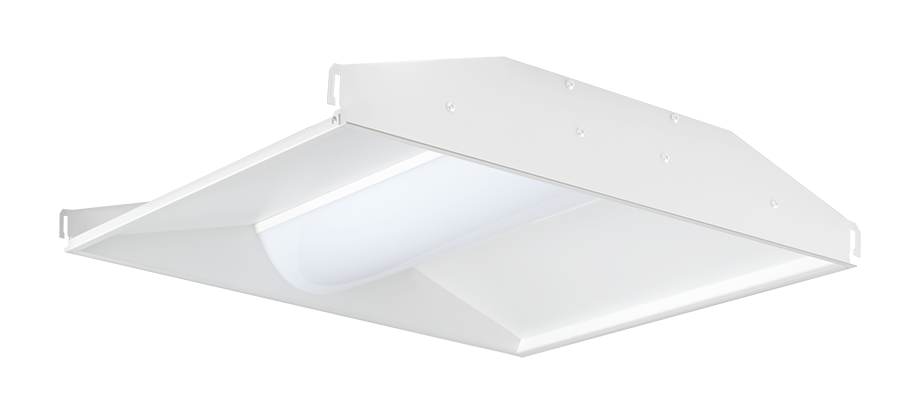

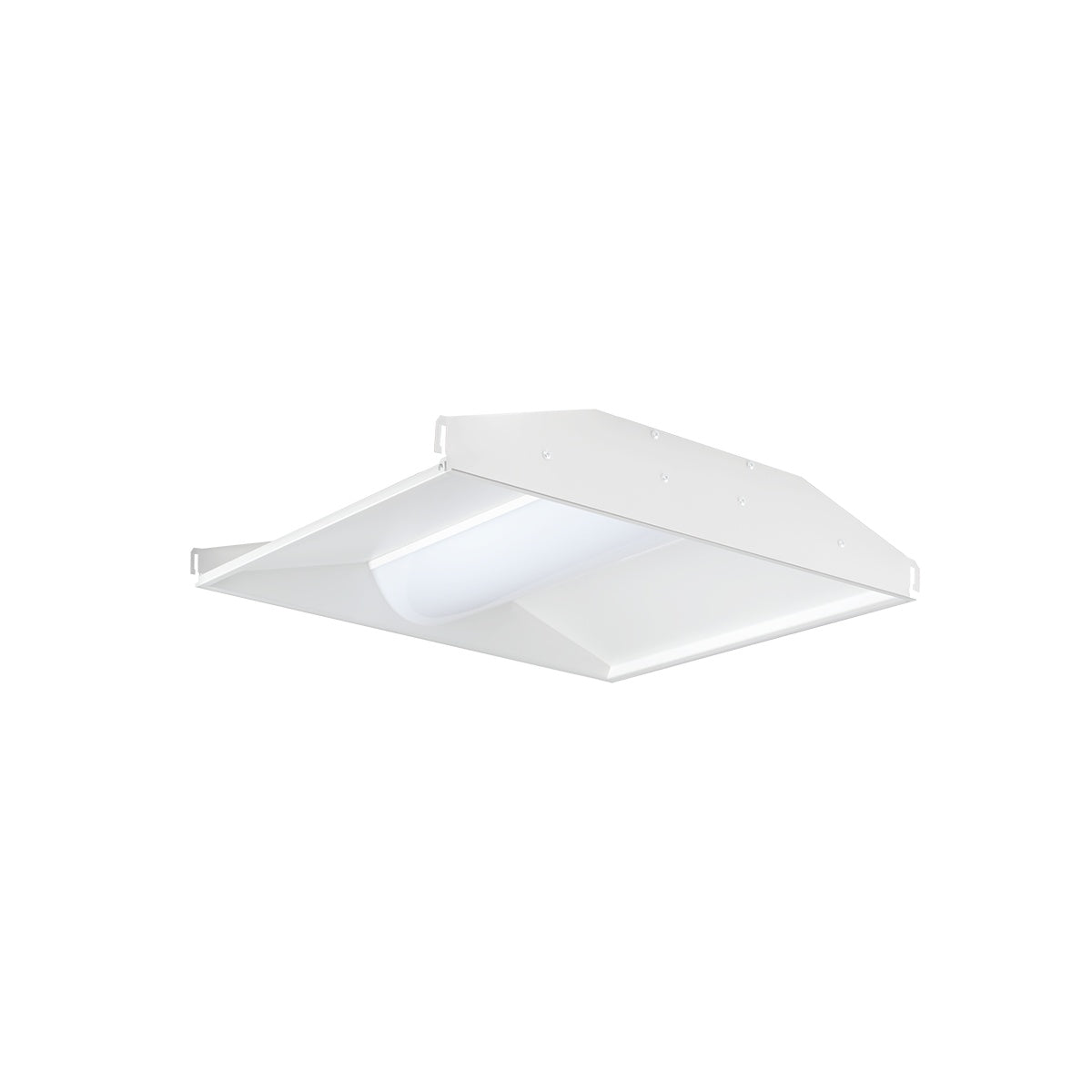

PANELS & TROFFERS 2533 LUMENS SWISH2X2 19W 3000K 0-10V DIMMING 120V-277V – LED Lighting Solutions

The PANELS & TROFFERS 2533 LUMENS SWISH2X2 is a recessed LED lighting fixture designed for indoor ceiling applications, ideal for electrical distributors and switchgear suppliers seeking efficient lighting solutions. It provides high-quality illumination with 2,533 lumens output at 19 watts input, offering energy-efficient performance suitable for commercial and institutional environments. Featuring 0-10V dimming capability and universal voltage operation from 120V to 277V, this fixture integrates seamlessly into wire and cable setups requiring dimmable LED lighting.

Specifications

• Lumens: 2,533 lumens
• Input Wattage: 19 watts
• Efficacy: 134 lumens per watt
• Color Temperature: 3000 kelvins
• Color Accuracy: 83 CRI (Color Rendering Index)
• Lens Material: Snap-in, Frosted Polycarbonate
• Dimensions (inches): 27.7 (Length) x 26.5 (Width) x 6.4 (Height)
• Operating Ambient Temperature: Up to 104 °F
• Minimum Starting Temperature: -20 °C
• Voltage: Universal 120V-277V, 50/60 Hz
• Manufacturer: RAB
• Manufacturer Part Number: SWISH2X2-19Y/D10

Features

• Recessed ceiling mount suitable for 9/16” or 15/16” flat tee grid ceilings
• 0-10V dimmable driver for smooth lighting control
• Universal voltage driver permits operation across a wide voltage range (120-277V)
• Frosted polycarbonate lens ensures uniform light distribution and glare reduction
• High color rendering index (83 CRI) for accurate color appearance
• Durable construction designed for indoor damp locations
• Supports easy installation with pre-installed grid clips and conduit knockouts
• Compatible with emergency battery backup options for safety compliance
• Energy-efficient design reduces electrical consumption and operational costs
