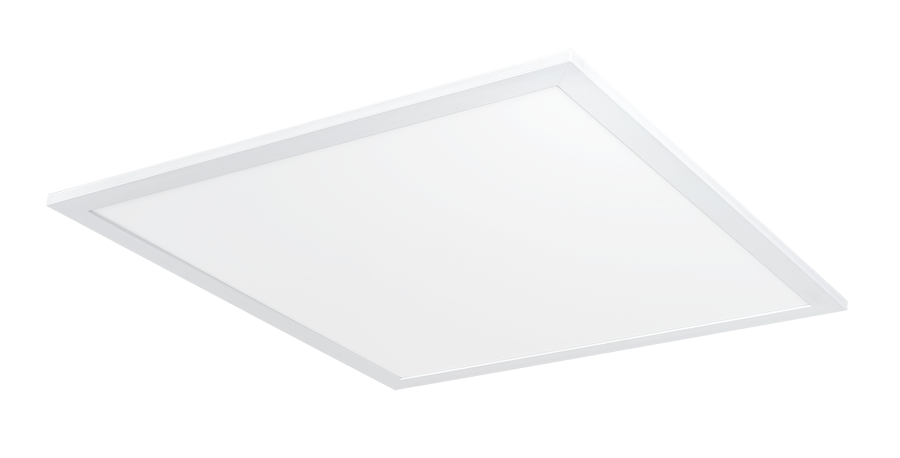

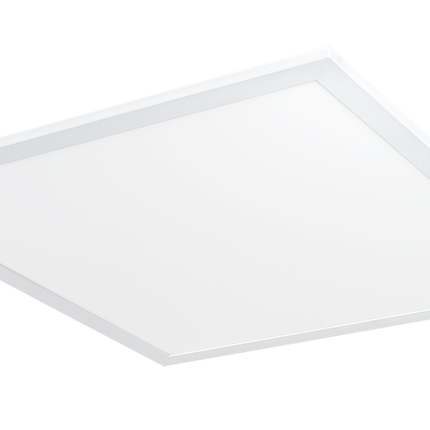

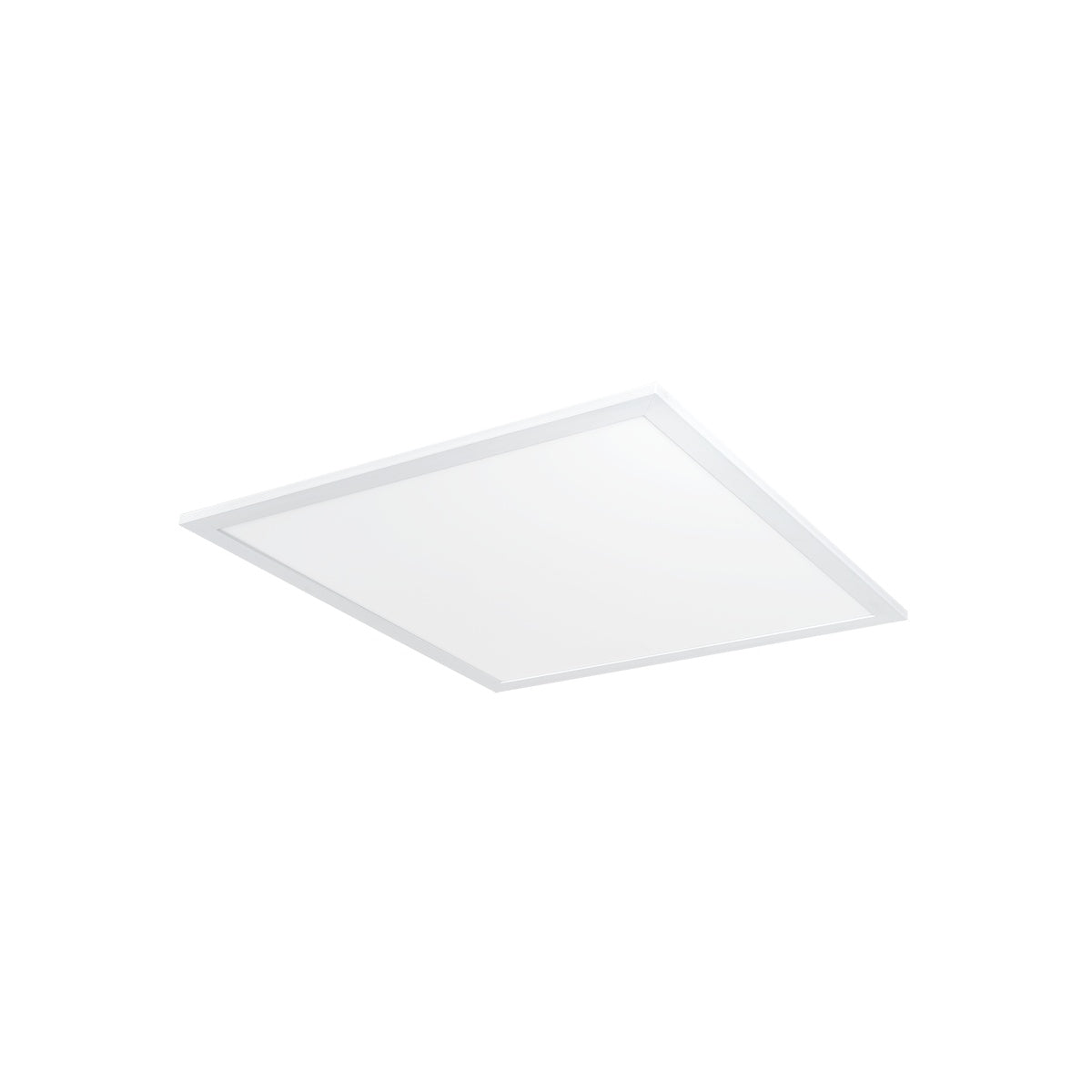

PANELS & TROFFERS 1978 LUMENS EZPAN 2X2 17W 4000K 0-10V DIMMING LED Panel Light

This RAB EZPAN 2x2 LED panel light provides efficient and reliable recessed ceiling lighting ideal for commercial and institutional applications. Designed for indoor use in insulated or non-insulated ceilings with 9/16” or 15/16” flat tee-grid systems, it offers energy-efficient illumination with 0-10V dimming capability. Suitable for electrical distributors and lighting solution providers seeking high-quality LED fixtures for wire and cable integration and switchgear compatibility.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: EZPAN2X2-17N/D10
• Input Wattage: 20 watts
• Lumens: 2,485 lumens
• Efficacy: 126 lumens per watt
• Color Temperature: 4000 kelvins
• Color Accuracy: 81 color rendering index
• Lens Material: Frosted Polystyrene
• Dimensions (W x L x H): 25.04 x 24.57 x 2.6 inches
• Product Weight: 7.7 lbs
• Ambient Temperature: -22 degrees Fahrenheit minimum
• UPC: 019813680491

Features

• Recessed ceiling mount for indoor applications
• Compatible with 9/16” or 15/16” flat tee-grid ceilings
• 0-10V dimmable driver for adjustable lighting control
• Universal voltage driver (120-277V, 50/60 Hz)
• Frosted polystyrene lens for uniform light distribution
• Suitable for damp locations
• Requires independent support to building structure
• Easy installation with pre-installed grid clips and accessible splice box

Downloads & Links

• Instructions
