Performance Overview

• Reach Height: 14 ft
• Load Capacity: 300 lbs
• Performance Rating: 4 star
• Size: 8 ft
• Type: Type IA Duty Rating
• Style: Platform

Features

• Safety guard rail encourages proper ladder use
• EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage
• Slip-resistant foot pads attached to the EDGE® structure
• Every rivet backed up by metal, metal plates or washers to protect rails
• Large platform provides secure and comfortable work area
• Full set of rear horizontals spaced one foot apart
• *Energy Diffusing Geometry
• Back-up plates reinforce all top connectors

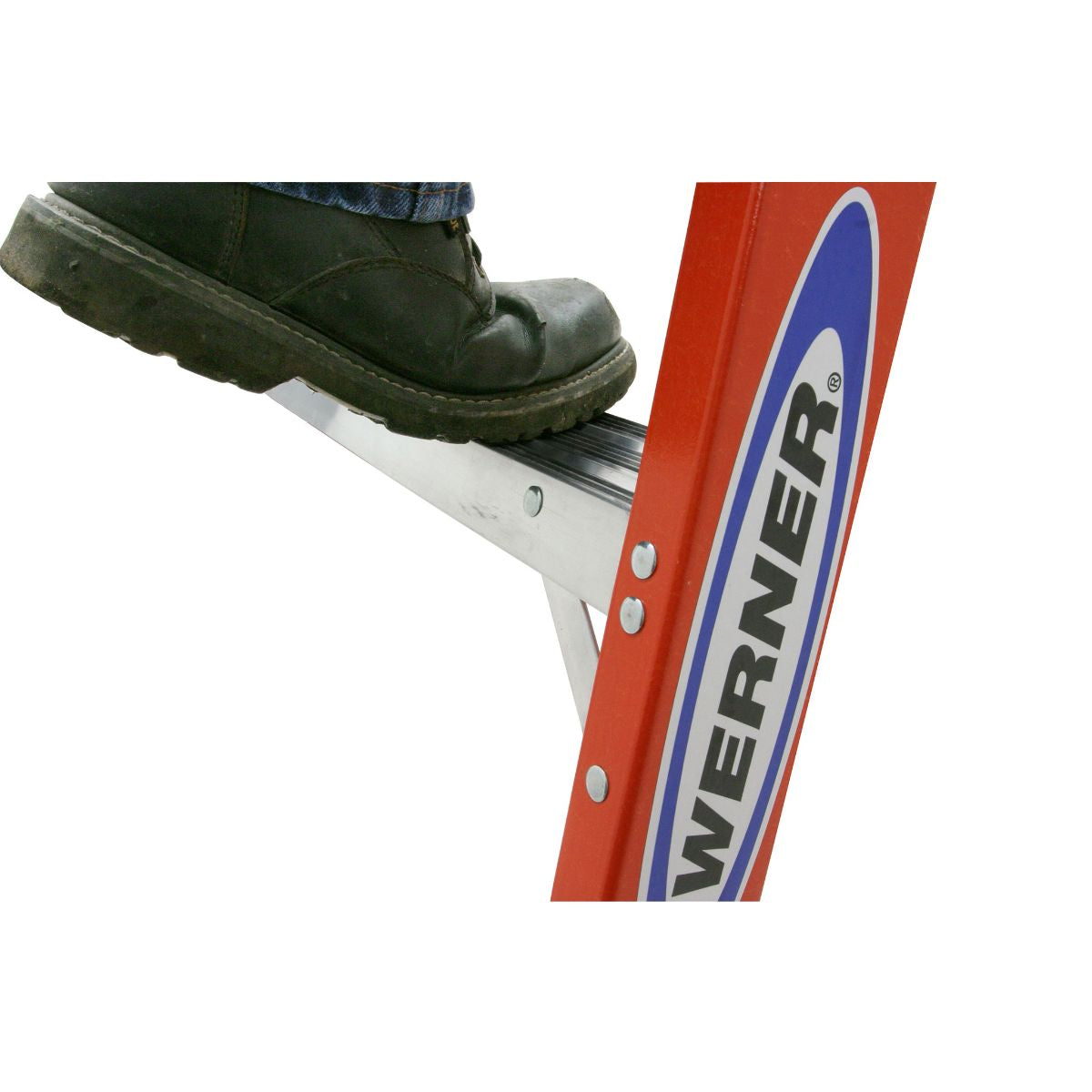

• Slip-resistant TRACTION-TRED® steps are double riveted
• Internal aluminum spreaders

Specifications

• Performance Rating: 4 star
• Platform Width: 14-5/8 in x 15 in
• Type: Type IA Duty Rating
• Description of Top Features: Can Hook
• Load Capacity: 300 lbs
• Approx. Spread: 66-5/8 in
• Material: Fiberglass
• Approx. Overall Ladder Length (Closed): 10 ft
• Certifications: ANSI A14.5 (2007); OSHA
• Height to Platform: 8 ft
• Max. Standing Height: 7 ft 8 in
• Approx. Width: 33-7/8 in
• With Pail Shelf: No
• Approx. Cu. Ft. Per Unit: 15.2
• Size: 8 ft
• Platform Depth: 14-5/8 in x 15 in
• Reach Height: 14 ft
• Approx. Shipping Wt. Lbs.: 44.5

Dimensions

• Rear Flange Dimension: 1-3/16 in
• Front Flange Dimension: 1-3/16 in
• Steps Dimension: 3 in
• Rear Rails Dimension: 1-7/8 in
• Front Rails Dimension: 3-1/8 in

Accessories

• 21-20 Grating Shoes

Additional P6200 Series Models

• P6210
• P6202
• P6206
• P6204
• P6208
