Performance Overview

• Load Capacity: 300 lbs
• Size: 6 ft
• Type: Type IA Duty Rating
• Performance Rating: 4 star
• Style: Platform
• Reach Height: 12 ft

Features

• Every rivet backed up by metal, metal plates or washers to protect rails
• Back-up plates reinforce all top connectors
• Large platform provides secure and comfortable work area
• *Energy Diffusing Geometry
• EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage

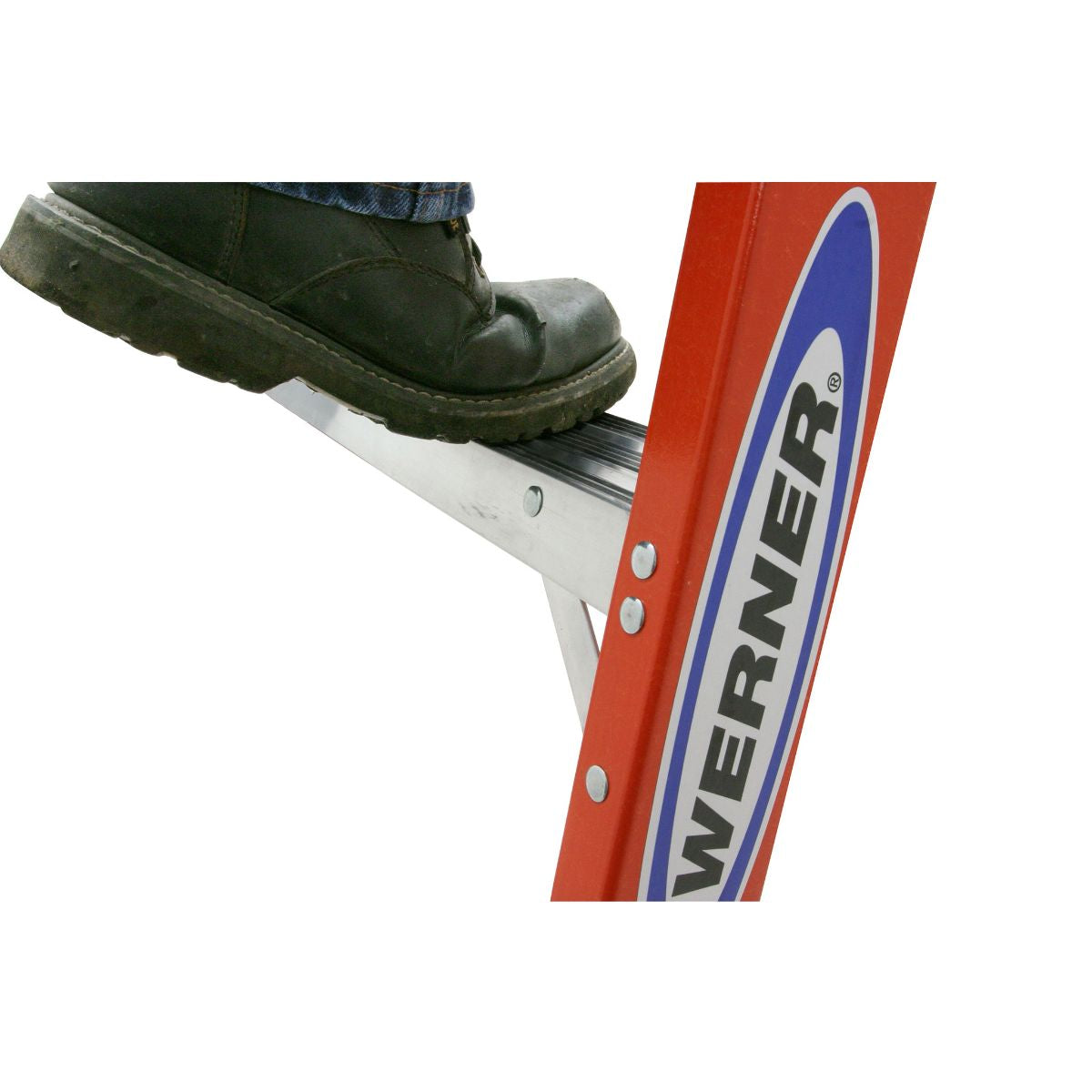

• Slip-resistant TRACTION-TRED® steps are double riveted
• Safety guard rail encourages proper ladder use
• Full set of rear horizontals spaced one foot apart
• Slip-resistant foot pads attached to the EDGE® structure

Specifications

• Platform Width: 14-5/8 in x 15 in
• With Pail Shelf: No
• Approx. Shipping Wt. Lbs.: 32
• Performance Rating: 4 star
• Platform Depth: 14-5/8 in x 15 in
• Certifications: ANSI A14.5 (2007); OSHA
• Load Capacity: 300 lbs
• Approx. Width: 30-3/8 in
• Approx. Overall Ladder Length (Closed): 8 ft
• Approx. Cu. Ft. Per Unit: 10.9
• Material: Fiberglass
• Approx. Spread: 54-3/4 in
• Height to Platform: 6 ft
• Type: Type IA Duty Rating
• Description of Top Features: Can Hook
• Size: 6 ft
• Reach Height: 12 ft
• Max. Standing Height: 5 ft 9 in

Dimensions

• Steps Dimension: 3 in
• Rear Flange Dimension: 1-3/16 in
• Front Rails Dimension: 3-1/8 in
• Front Flange Dimension: 1-3/16 in
• Rear Rails Dimension: 1-7/8 in

Accessories

• 21-20 Grating Shoes

Additional P6200 Series Models

• P6202
• P6206
• P6210
• P6204
• P6208
