OZ-GEDNEY T8X-125M 1-1/4 IN MOGUL IRON COND BDY T
SKU: #316580
Part: #T8X125M
UPC: 783126011296
OZ-GEDNEY T8X-125M 1-1/4 IN MOGUL IRON COND BDY T
SKU: #316580
Part: #T8X125M
UPC: 783126011296
Description

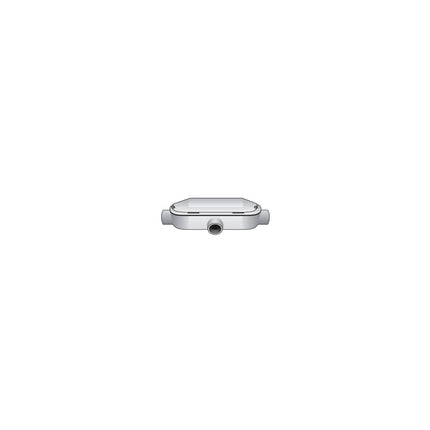

OZ-GEDNEY T8X-125M 1-1/4 IN MOGUL IRON COND BDY T - Mogul Conduit Body
The OZ-GEDNEY T8X-125M is a mogul conduit body designed for use with rigid conduit and intermediate metal conduit (IMC). It provides access for pulling, splicing, maintenance, and future upgrades of large and heavy conductors. This conduit body allows connection of straight conduit runs, branch conduit runs, and 90° bends, making it suitable for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers.
Specifications
- Manufacturer: O-Z Gedney
- Manufacturer Part #: T8X125M
- Product Weight: 5.5 lbs
- Dimensions: Length 12 in, Width 5.5 in, Height 4 in
- Material: Malleable Iron, Zinc Electroplated, Dichromate, Epoxy Powder Coat
- Conduit Size: 1-1/4 inch trade size
- UPC: 783126011296
Features
- Meets NEC section 314.28 rule for 6X or 8X conduit trade size between hubs
- Supplied completely assembled with cover, gasket, and captive stainless steel screws
- Raintight and suitable for wet locations
- Suitable for Class I, Division 2 hazardous locations per NEC section 501.4(B)
- Threaded NPT tapered hubs for rigid conduit and IMC
- Smooth integral hub bushings protect conductor insulation
- Replacement covers and gaskets available
