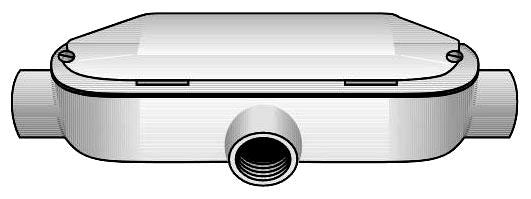

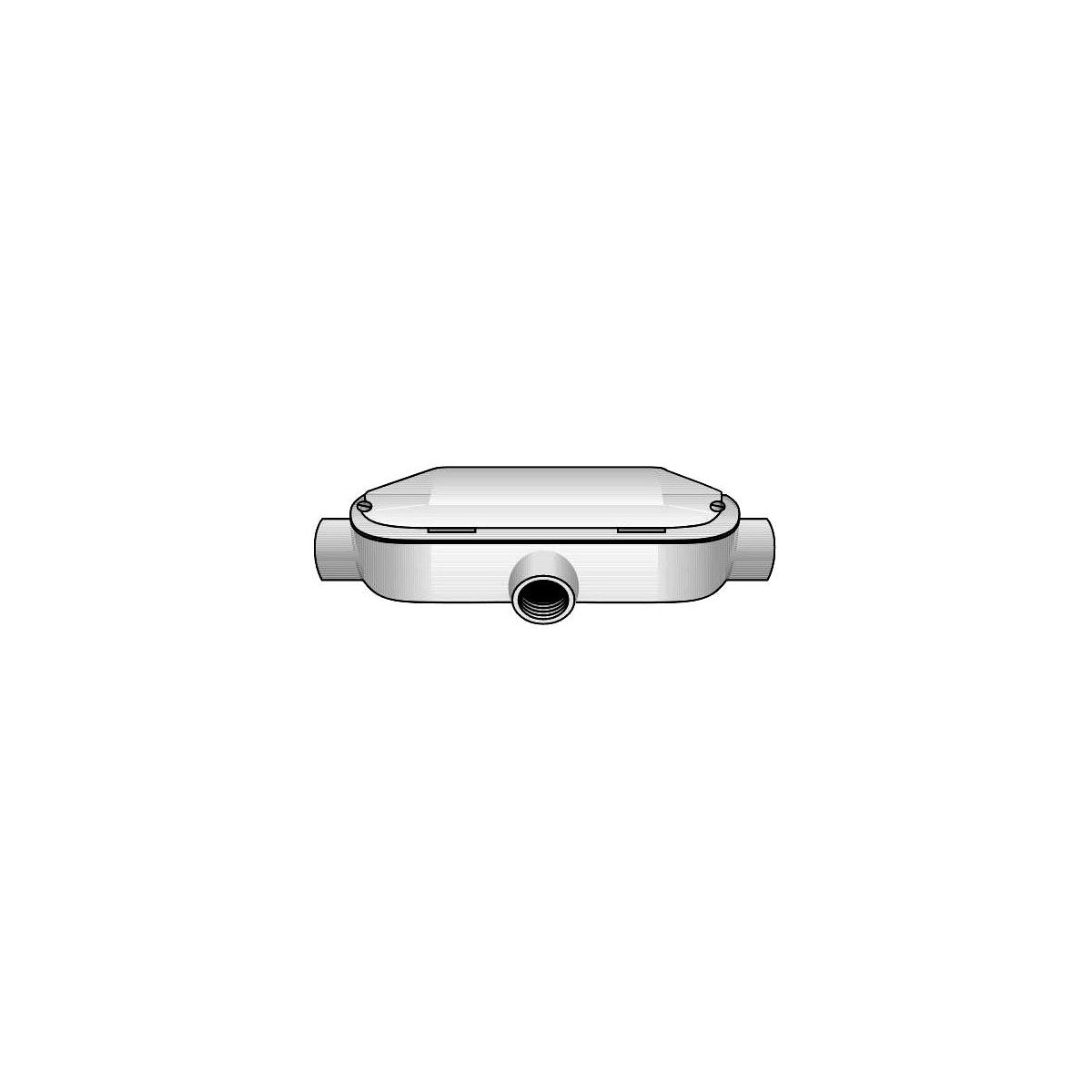

OZ-GEDNEY T8X-100M Mogul Conduit Body for Electrical Wiring

The OZ-GEDNEY T8X-100M is a 1-inch mogul conduit body designed for use with rigid conduit and intermediate metal conduit (IMC). It provides access for pulling, splicing, maintenance, and future upgrades of large and heavy electrical conductors. This conduit body facilitates the connection of straight conduit runs, branch conduit runs, and 90° bends, making it suitable for electrical distributors and switchgear suppliers requiring durable conduit solutions.

Specifications

• Manufacturer: O-Z Gedney
• Manufacturer Part #: T8X100M
• Dimensions: 12 in (Length) x 6 in (Width) x 4 in (Height)
• Weight: 4.1 lbs
• Material: Malleable iron (standard), with options for copperfree aluminum
• Finish: Zinc electroplated and epoxy powder coat
• Suitable for: Rigid conduit and IMC applications
• Certifications: UL Standard 514A, UL Listed E-18095, CSA Standard C22.2 No. 18, CSA Certified 009795, Fed Spec A-A-50563, NEMA FB-1, FB-2.10
• Hazardous Location Rating: Class I, Division 2 per NEC 501.10(B)(4)
• Compatible Maximum Wire Fill: Three conductors, up to #4 AWG for malleable iron bodies (per NEC/CEC standards)

Features

• Roomy interior provides ample wiring space for large conductors
• Smooth, rounded integral bushings protect conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints with excellent ground continuity
• Lightweight aluminum option offers high corrosion resistance and ease of handling
• Flat-back design ideal for mounting flush against surfaces
• Domed blank covers for extra wiring space (1/2" to 3")
• Suitable for wet locations when used with gasketed covers
• Cover screws made of stainless steel for durability
