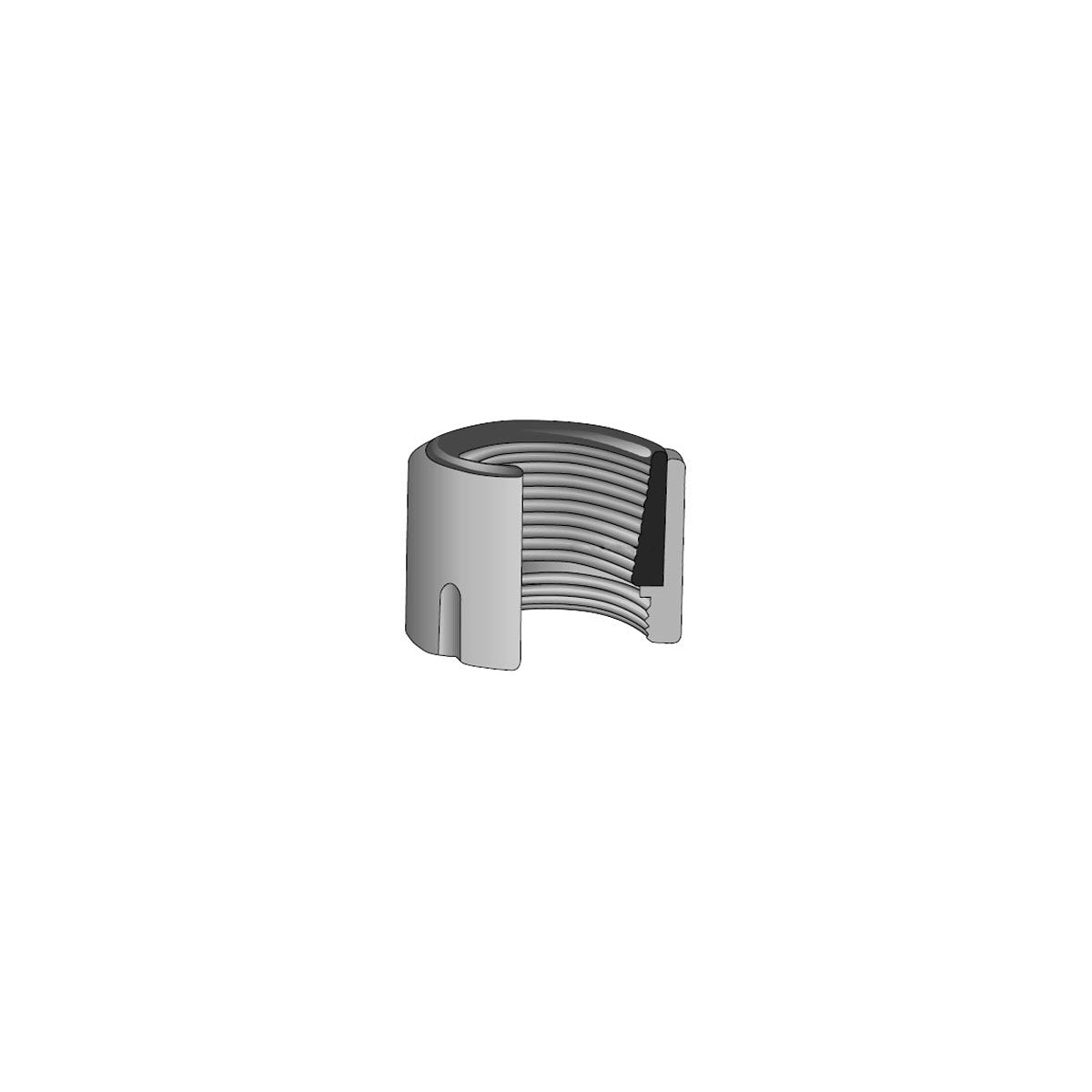

OZ-GEDNEY S-5000-BO Type S Cable Support for Electrical Wire and Cable

The OZ-GEDNEY S-5000-BO Type S Cable Support is designed for supporting two or more non-armored electrical wires indoors at voltages up to 600V. Manufactured by Oz-Gedney Co, this cable support is suitable for use in vertical conduit risers, providing secure and code-compliant support to electrical cables in commercial and industrial applications. It is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable supports as part of lighting and electrical solutions.

Specifications

• Application: TWO or more wires - Indoors - at voltages to 600V
• Material: Malleable or Ductile Iron
• Finish: Hot Dip Galvanized
• Product Weight: 1.3000 lbs
• Manufacturer: Oz-Gedney Co
• Manufacturer Part #: S-5000-BO
• UPC: 783126022681

Features

• Threaded for rigid conduit and IMC; compatible with EMT using connectors
• One-piece impregnated hardwood pOZi-grip® wedging plug provides positive cable support without damaging insulation
• Knurled insulating inner surface grips cable securely
• Designed for fast and easy installation; plug and body can be ordered separately for staged installation
• Supports all cable insulation types up to 600 volts
• Ventilated design allows air circulation within conduit
• UL Listed (E-11853) and CSA Certified (11584) meeting UL 514B, CSA C22.2 No. 18, and NEC 300-19 standards
• Hot dip galvanized finish for corrosion resistance

Downloads & Links

• Spec Sheet
