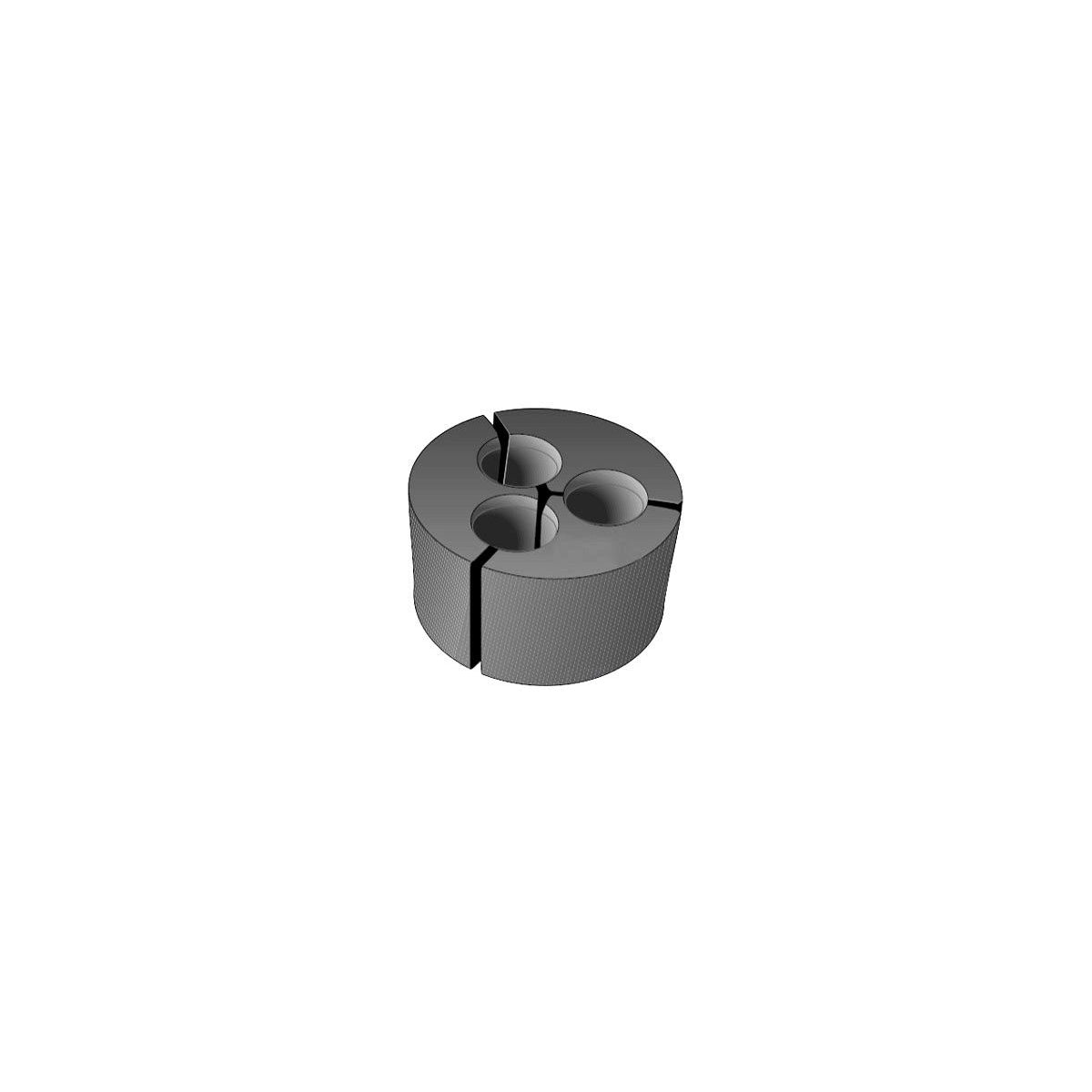

OZ-GEDNEY RPLG-3001-2 TYPE R 3 IN CBL SPRT PLG-2 Cable Support

The OZ-GEDNEY RPLG-3001-2 is a Type R cable support plug designed for use with rigid conduit, IMC, and EMT systems. It is intended for supporting non-armored electrical cables in vertical conduit risers indoors at all voltages. This cable support plug features the pOZi-grip‚Ñ¢ "R-style" wedging plug, which provides uniform pressure around cables, ensuring secure holding without damaging cable insulation. It is suitable for electrical distributors and lighting solutions requiring reliable wire and cable management and is compatible with switchgear supplier applications.

Specifications

• Manufacturer: O-Z Gedney
• Manufacturer Part #: RPLG30012
• Conduit Size: 3 inches
• Outside Diameter: 104.9 mm (4.13 in)
• Overall Height: 85.9 mm (3.38 in)
• Material: Malleable or ductile iron body with hot dip galvanized finish
• Plug Material: Canvas Bakelite pOZi-grip‚Ñ¢ wedging plug
• UL Standard: ANSI/UL 514B
• UL Listed: E-11853
• CSA Standard: C22.2 No.18.3
• CSA Certified: 011584
• Product Weight: 9999 (unit not specified)

Features

• Threaded for rigid conduit and IMC installation
• pOZi-grip wedging plug exerts uniform pressure around cable circumference for secure holding without deforming insulation
• Body only and plug only can be ordered separately to accommodate installation sequencing
• Designed for use with all insulation types at all voltages
• Supports one or more wires in conduit
• Can be mounted on non-metallic or non-grounded conduit with optional Lay-In-Lug grounding lug
• Compatible with threadless rigid conduit, threadless IMC, or EMT by attaching to male threads of set-screw or compression connectors
