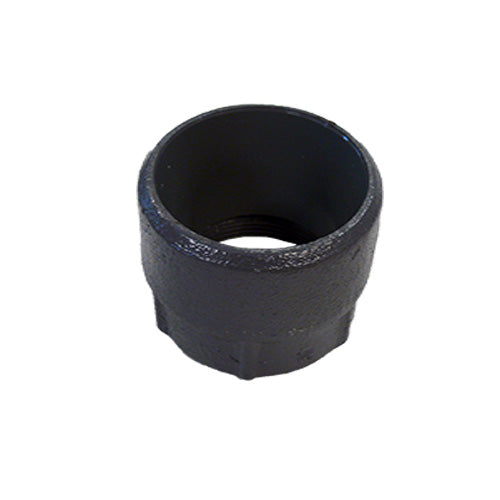

OZ-GEDNEY R4001B0 TYPE R 4 IN CBL SPRT BDY Cable Support

The OZ-GEDNEY R4001B0 Type R Cable Support is designed for supporting one or more non-armored electrical wires indoors at all voltages. Manufactured by Oz-Gedney Co, this cable support is suitable for use in vertical conduit risers, providing secure and uniform pressure around cables to prevent insulation damage. It is compatible with rigid conduit, IMC, and EMT, making it a reliable component for electrical distributors and switchgear suppliers managing wire and cable installations.

Specifications

• Application: ONE or more wires - Indoors - at all voltages
• Finish: Hot Dip Galvanized
• Product Weight: 6.7 lbs
• Manufacturer Part #: R-4001-BO
• Manufacturer: Oz-Gedney Co

Features

• Threaded for rigid conduit and IMC installation
• Uses a canvas Bakelite pOZi-grip™ wedging plug that exerts uniform pressure around the cable without deforming insulation
• Body made of malleable or ductile iron with a hot dip galvanized finish for corrosion resistance
• Plug and body can be ordered separately for flexible installation sequencing
• Compatible with Lay-In-Lug™ grounding lug for non-metallic or non-grounded conduit applications
• UL Listed to ANSI/UL 514B and CSA Certified to C22.2 No.18.3 standards

Downloads & Links

• Spec Sheet
