Oz-Gedney Co
OZ-GEDNEY R-3001-BO TYPE R 3 IN CBL SPRT BDY
SKU: #316180
Part: #R-3001-BO
UPC: 783126022162
Oz-Gedney Co
OZ-GEDNEY R-3001-BO TYPE R 3 IN CBL SPRT BDY
SKU: #316180
Part: #R-3001-BO
UPC: 783126022162
Description

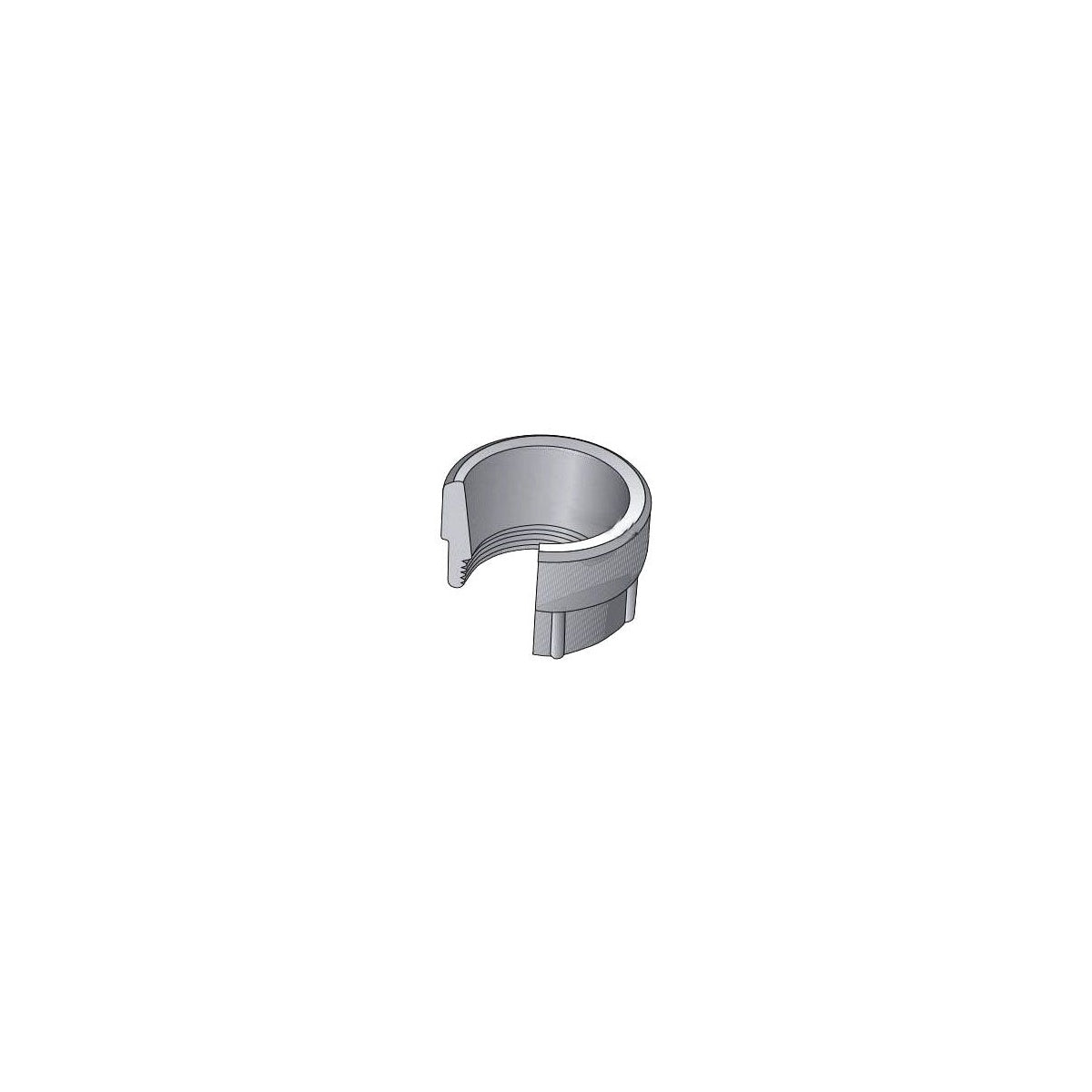

OZ-GEDNEY R-3001-BO TYPE R 3 IN CBL SPRT BDY Cable Support
The OZ-GEDNEY R-3001-BO Type R 3 Inch Cable Support Body is designed for supporting one or more non-armored electrical cables indoors at all voltages. It is suitable for use with rigid conduit, IMC, and EMT systems, providing secure cable support in vertical conduit risers. This product is ideal for electrical distributors and switchgear suppliers seeking reliable wire and cable management solutions.
Specifications
- Material: Malleable or Ductile Iron
- Finish: Hot Dip Galvanized
- Application: One or more wires - Indoors - at all voltages
- Manufacturer: Oz-Gedney Co
- Manufacturer Part #: R-3001-BO
- Product Weight: 3.8 lbs
Features
- Threaded for rigid conduit and IMC installation
- Compatible with all types of insulation at all voltages
- Body only can be ordered separately for installation prior to wire pulling
- Designed for use with pOZi-grip‚Ñ¢ wedging plugs that exert uniform pressure around cables without deforming insulation
- Suitable for use indoors in ordinary locations per NEC/CEC standards
- UL Listed to ANSI/UL 514B and CSA Certified to C22.2 No.18.3
