Oz-Gedney Co
OZ-GEDNEY R-1501-BO TYPE R 1-1/2 IN CBL SPRT BDY
SKU: #316169
Part: #R-1501-BO
UPC: 783126022070
Oz-Gedney Co
OZ-GEDNEY R-1501-BO TYPE R 1-1/2 IN CBL SPRT BDY
SKU: #316169
Part: #R-1501-BO
UPC: 783126022070
Description

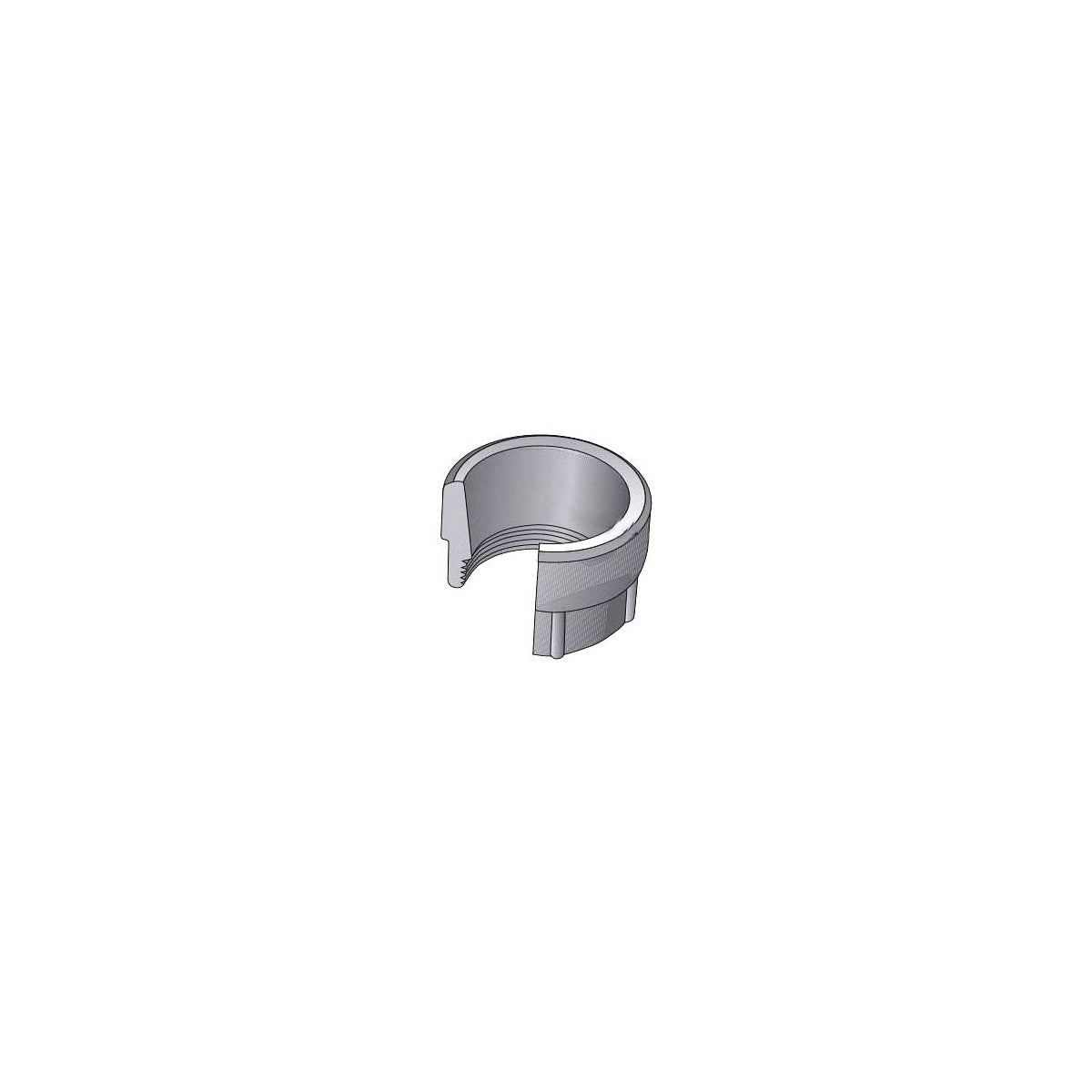

OZ-GEDNEY R-1501-BO TYPE R 1-1/2 IN Cable Support Body
The OZ-GEDNEY R-1501-BO is a Type R cable support body designed for supporting one or more non-armored electrical wires indoors at all voltages. Manufactured by Oz-Gedney Co, this component is used primarily with rigid conduit, IMC, and EMT systems in electrical distribution and lighting solutions. It is engineered to provide secure cable support in vertical conduit risers, ensuring compliance with NEC/CEC standards.
Specifications
- Material: Malleable or Ductile Iron
- Finish: Hot Dip Galvanized
- Application: One or more wires - Indoors - at all voltages
- Manufacturer Part #: R-1501-BO
- UPC: 783126022070
- Product Weight: 9999.0000 (unit not specified)
Features
- Threaded for rigid conduit and IMC installation
- Compatible with all types of insulation and voltages
- Body can be ordered separately for installation before wire pulling
- Designed for use with pOZi-grip‚Ñ¢ wedging plugs for uniform cable support
- Hot dip galvanized finish for corrosion resistance
- Listed for ordinary locations under UL Standard ANSI/UL 514B and CSA Standard C22.2 No.18.3
