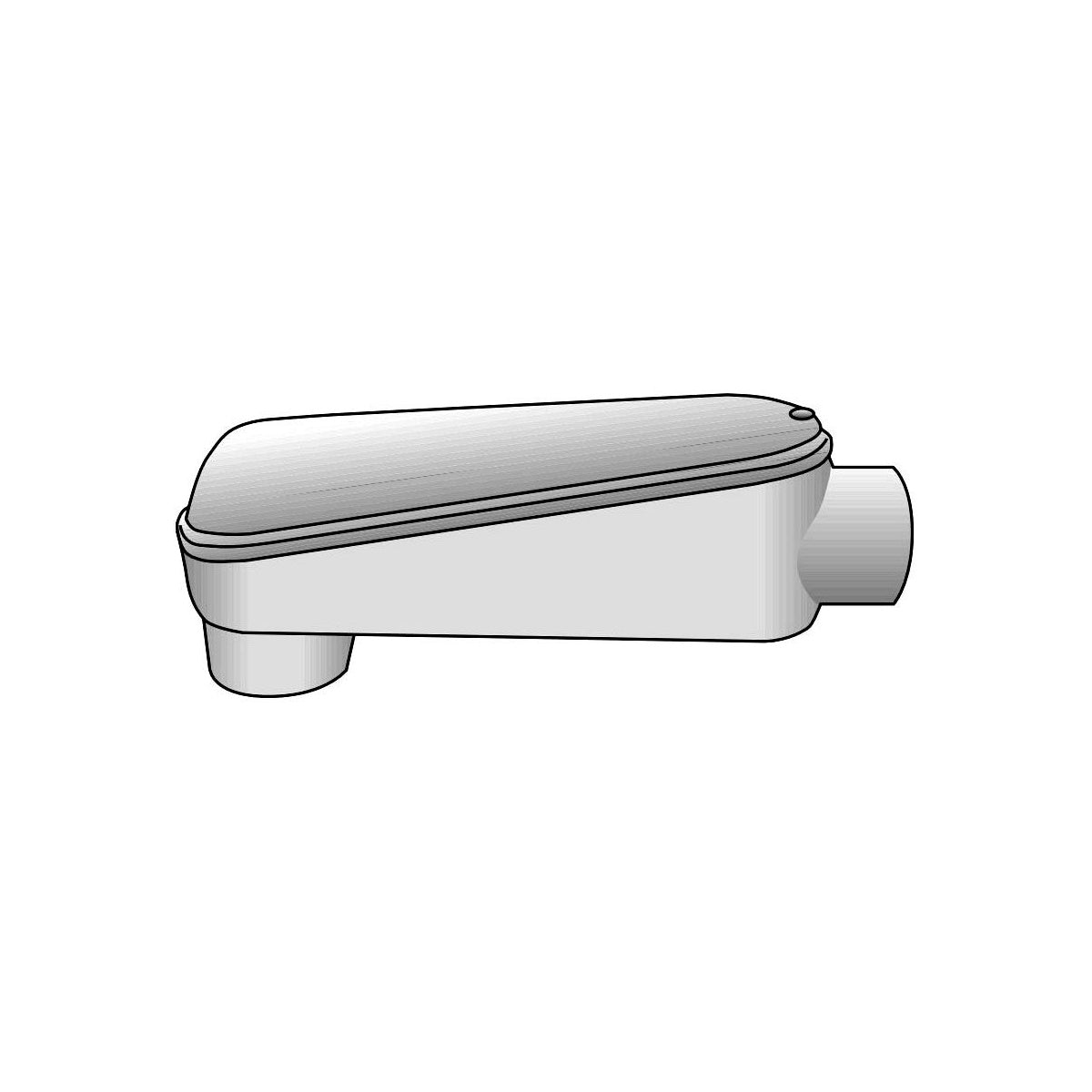

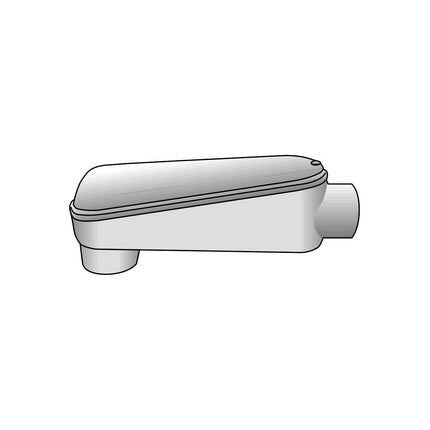

OZ-GEDNEY LB6X-125M 1-1/4 IN LB Mogul Conduit Body

The OZ-GEDNEY LB6X-125M is a malleable iron mogul conduit body designed for use with rigid conduit and intermediate metal conduit (IMC). It facilitates access to large and heavy conductors for pulling, splicing, maintenance, and future upgrades. This conduit body is suitable for applications requiring a durable and corrosion-resistant solution, provided by its triple coat finish including zinc electroplating, dichromate, and epoxy powder coating. It is ideal for electrical distributors and switchgear suppliers seeking reliable conduit fittings for wiring and cable management in industrial and commercial lighting solutions.

Specifications

• Application: For Rigid Conduit And IMC
• Material: Malleable Iron
• Finish: Triple coat: Zinc Electroplated, Dichromate, Epoxy Powder Coat
• Hub Size: 1-1/4 in
• Dimensions: Length 9.69 in, Width 2.38 in, Height 4-3/4 in
• Product Weight: 4.81 lbs
• Manufacturer: Oz-Gedney Co
• Manufacturer Part #: LB6X-125M

Features

• Roomy interior providing ample wiring space for large conductors
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Suitable for hazardous locations Class I, Division 2 per NEC 501.10(B)(4)
• Triple coat finish for enhanced corrosion resistance
• Designed to accommodate three conductors with a maximum wire size of 1/0 AWG (see maximum wire fill chart on page 2 of documentation)
• Compatible with gasketed covers for wet location suitability
