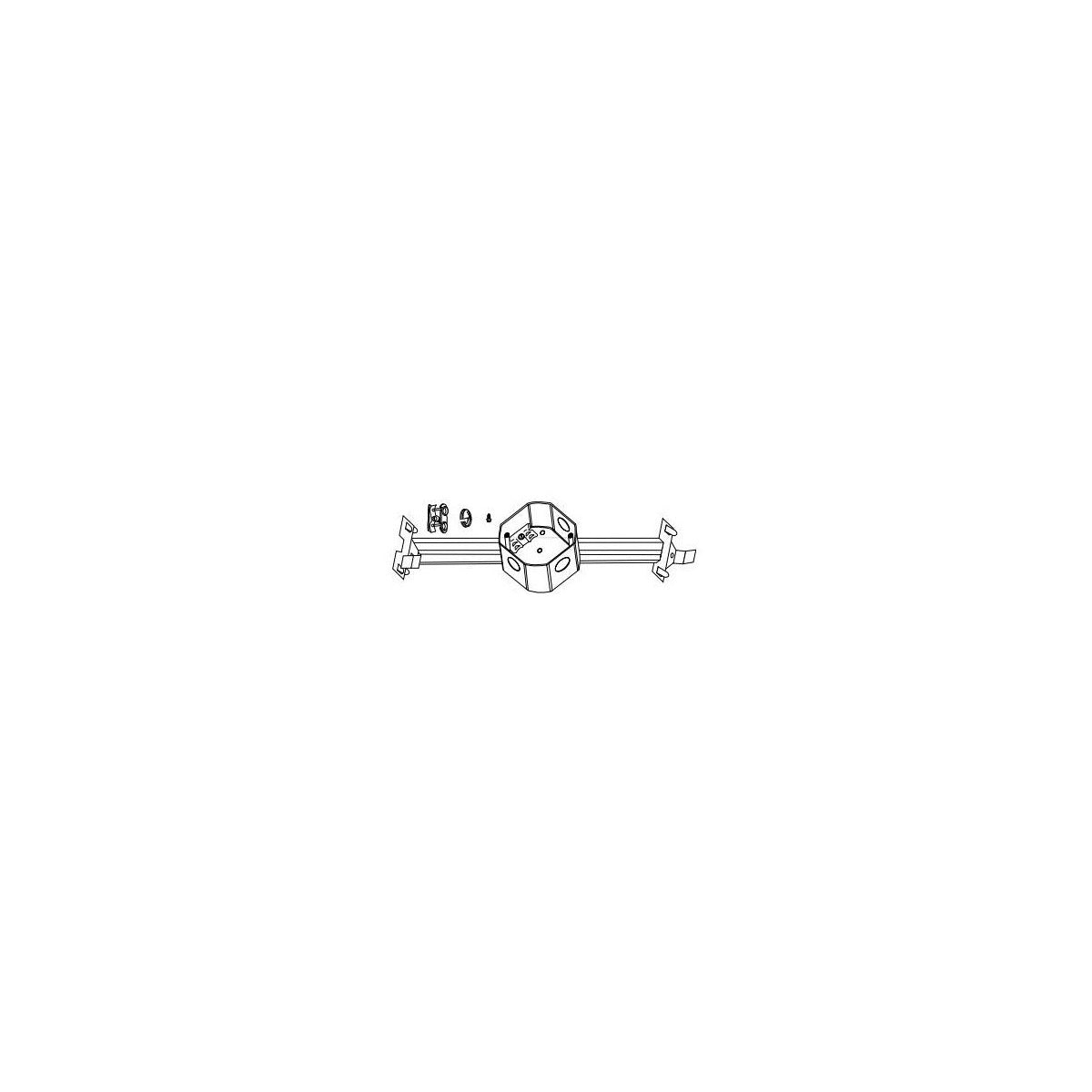

OZ-GEDNEY FFS561LDNBH 4 X 2-1/8 IN Octagon New Work Bar Ceiling Fan Box

This 4-inch octagon ceiling fan box is designed for secure and compliant installation in new construction applications. Manufactured by Oz-Gedney Co, it is suitable for use as a ceiling fan box and complies with NEC standards for ordinary locations. The box supports electrical distributors and switchgear suppliers in delivering reliable lighting solutions and wire and cable management for ceiling fan or fixture loads up to 70 lbs (32 kg).

Specifications

• Manufacturer Part #: FFS561LDNBH
• Application: Ceiling Fan Box
• Knockouts: 3 Each, 1/2 inch
• Number of Outlets: 3 Each
• Product Weight: 2.0000 lbs
• UPC: 687855001408
• Material: AISI/SAE 1008 steel, pre-galvanized G60 finish, 0.0625” thickness minimum
• Dimensions: 4 inch octagon box, 2-1/8 inch depth
• Clamp Type: AC/MC, NM cable compatible
• Bracket: New work bar hanger (NBH), adjustable 16” to 24”
• UL Standards: 514A, 514B, 514D
• UL Listed: E2527, E14817
• NEMA Ratings: FB-1, OS-1

Features

• Designed for new construction with support bar hangers adjustable from 16” to 24”
• Complies with NEC 442.18 for ceiling fan or fixture loads up to 70 lbs (32 kg)
• Groundskeeper raised ground boss provides secure grounding without contacting mounting surface
• Suitable for bonding without additional bonding means in circuits above or below 250 V
• Pre-galvanized steel construction for corrosion resistance in ordinary locations
• Compatible with AC/MC and NM cables for versatile wiring applications
