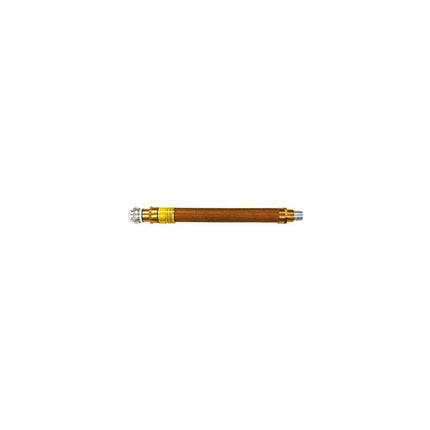

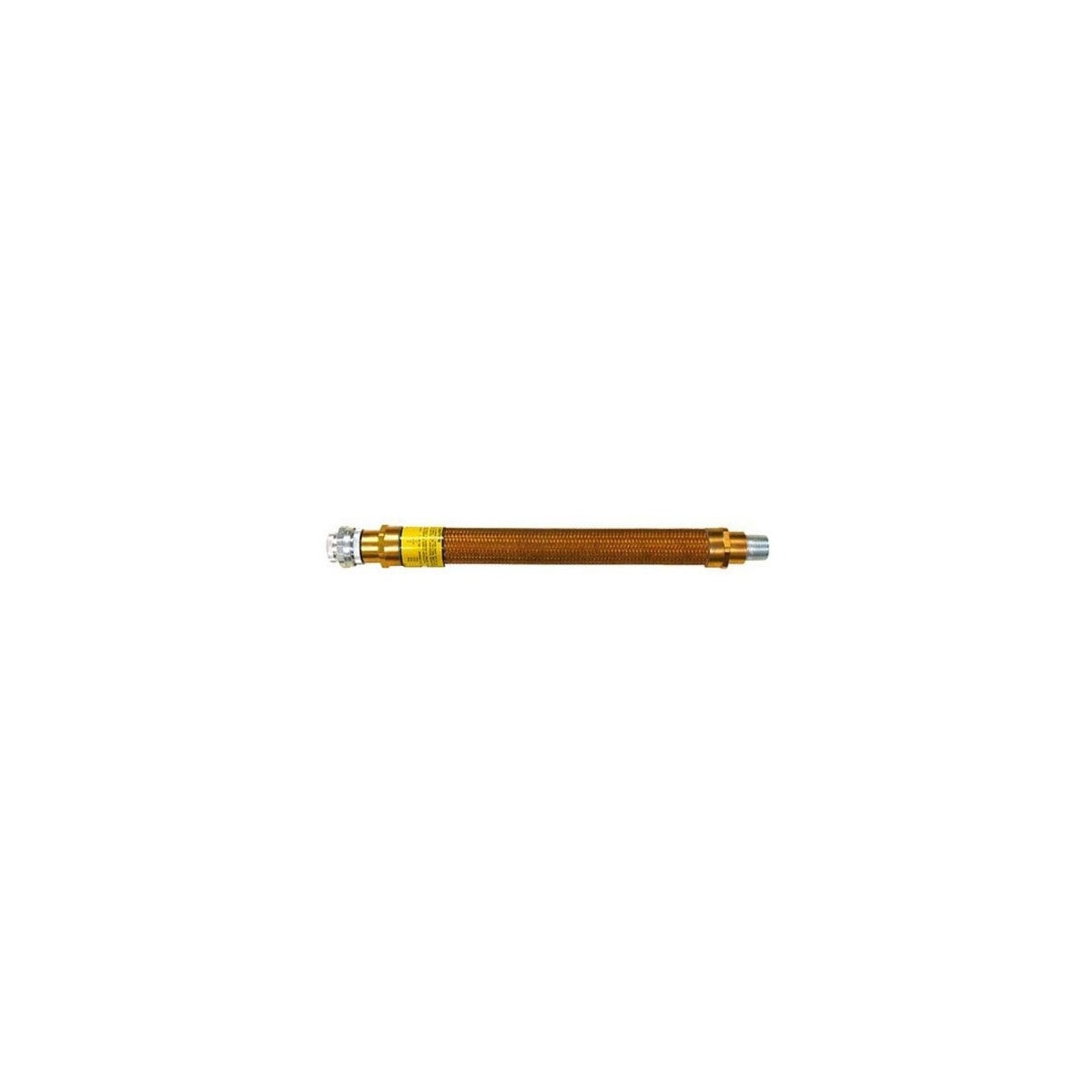

OZ-GEDNEY ECLK-75-18SS 3/4 X 18 IN FLEX CPLG STN-STL Flexible Coupling

The OZ-GEDNEY ECLK-75-18SS is a 3/4 inch by 18 inch stainless steel flexible coupling designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). This explosionproof, dust-ignitionproof, and watertight coupling is engineered to accommodate vibration and movement in electrical conduit systems, making it suitable for difficult-bend situations. It is an ideal component for electrical distributors and switchgear suppliers requiring durable, reliable conduit fittings for hazardous locations.

Specifications

• Manufacturer: O-Z Gedney
• Manufacturer Part #: ECLK7518SS
• Product Weight: 2.19 lbs
• Dimensions (W x H x L): 3.2 in x 2.9 in x 26.8 in
• Trade Size: 3/4 inch
• Material: Stainless steel (suffix -SS indicates stainless steel option)
• Type: Flexible coupling with female end fitting and union at one end, female end fitting with removable male nipple at the other
• UL Standard: 886
• UL Listed: E-34997
• CSA Standard: C22.2 No. 30
• CSA Certified: 009795
• Suitable for wet locations
• NEC Articles: 500-503 and 505 compliance

Features

• Explosionproof, dust-ignitionproof, and watertight construction
• Flexible coupling constructed from brass tubing with bronze outer braid and insulating liner
• Heavy-duty design resists mechanical abuse and vibration
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and ground continuity without bonding jumpers
• Interior insulating liner protects conductors from abrasion under vibrating conditions
• Stainless steel option available for 1/2‚Äù through 2‚Äù sizes
• Designed for use in hazardous locations including Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III environments
