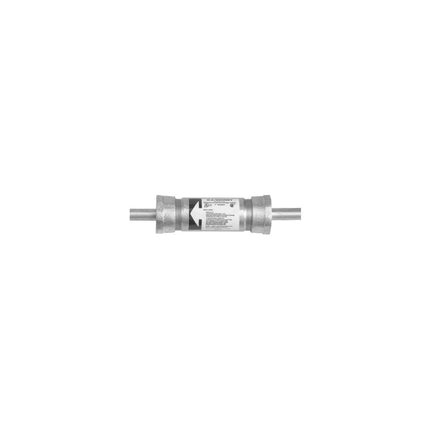

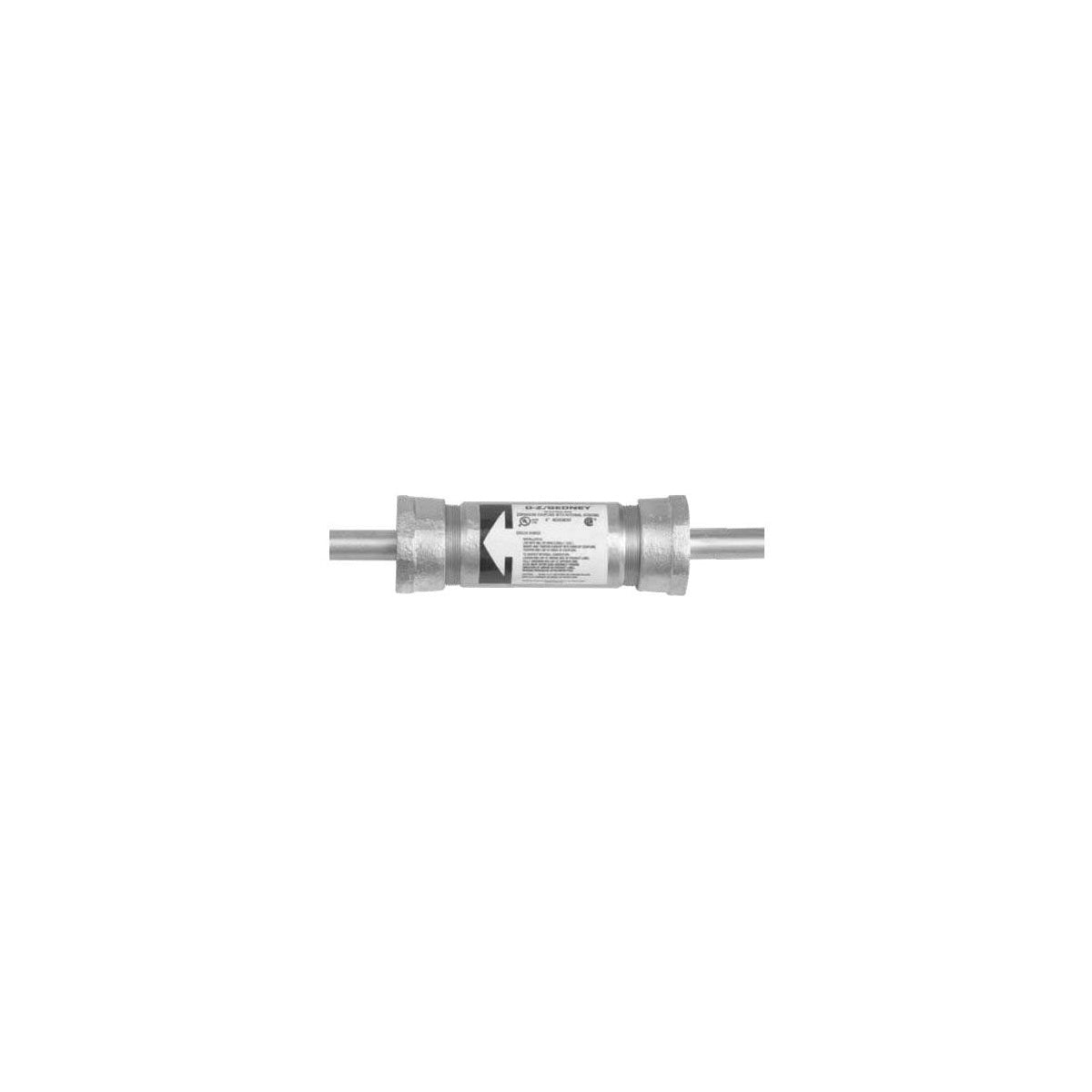

OZ-GEDNEY AXB75 3/4 IN Expansion Coupling for Rigid Metal Conduit and IMC

The OZ-GEDNEY AXB75 is an expansion coupling designed for use with rigid metal conduit (RMC) and intermediate metal conduit (IMC). It accommodates expansion and contraction in conduit runs, ensuring system integrity in electrical installations. This product is suitable for electrical distributors and switchgear suppliers seeking reliable conduit fittings that enhance installation efficiency and durability.

Specifications

• Application: For Rigid Conduit And IMC
• Length: 8 in
• Outside Diameter: 2-3/4 IN
• Material: Body: Ductile Iron, Bonding Jumper: Tinned Copper, Grommets: Neoprene
• Product Weight: 4.0400 lb

Features

• Accommodates expansion and contraction in runs of rigid metal conduit and intermediate metal conduit
• Vandalproof and corrosion-resistant design with hot-dip galvanized finish
• Internal bonding jumper eliminates need for external jumper, reducing exposure to corrosion and tampering
• Disassembly not required during installation, minimizing risk of lost parts and reducing tool requirements
• UL and CSA certified for wet or dry locations (ANSI/UL 514B, 467; CSA C22.2 No. 18.3, No. 41; U Listed E-11853)
