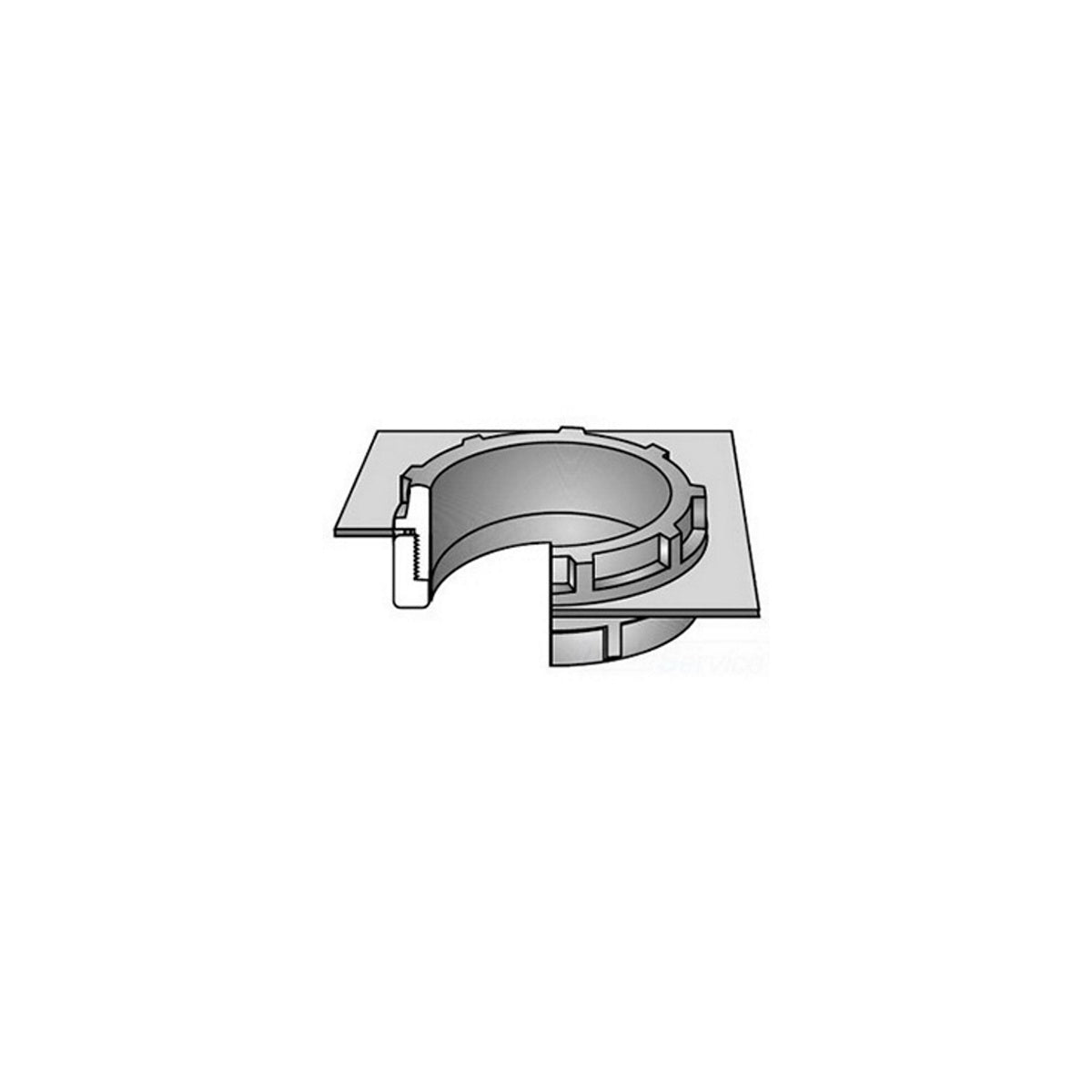

OZ-GEDNEY ABB300 3 IN COMBO A&BB BSHG Insulating Bushing

This insulating bushing by Oz-Gedney Co is designed for threaded rigid conduit and intermediate metal conduit (IMC) applications, providing electrical distributors and switchgear suppliers with a reliable solution for insulating cables passing through metal boxes or troughs. It is made from high-impact black thermosetting phenolic material, ensuring durability and resistance to heat and electrical stress in lighting solutions and wire and cable installations.

Specifications

• Manufacturer Part #: ABB-300
• Material: Phenolic
• Color: Black
• Connection: Threaded
• Product Weight: 1.8800 lbs
• Application: For Threaded Rigid Conduit And IMC
• Trade Size: 3 inches
• Outside Diameter: 101.60 mm (4.00 in)
• Hole Diameter: 76.20 mm (3.00 in)
• Thread Length: 16.00 mm (0.63 in)
• Shoulder Height: 12.70 mm (0.50 in)
• Max Enclosure Thickness: 6.35 mm (0.25 in)
• Shield Height Type "BB": 12.70 mm (0.50 in)
• Shield Height Type "A": 22.35 mm (0.88 in)

Features

• Combination of Type "A" and "BB" bushings for insulating cables through metal boxes or troughs
• High impact black thermosetting phenolic construction
• UL temperature rating of +150 °C (+302 °F), resistant to softening, melting, or burning
• Threaded connection for secure installation
• UL Listed (E-20933) and CSA Certified (011584)
• Meets ANSI/UL 514B, CSA C22.2 No. 18, and NEMA FB-1 standards
