Oz-Gedney Co
OZ-GEDNEY 31400 4 IN RGD COND COMP CONN
SKU: #401529
Part: #31-400
Oz-Gedney Co
OZ-GEDNEY 31400 4 IN RGD COND COMP CONN
SKU: #401529
Part: #31-400
Description

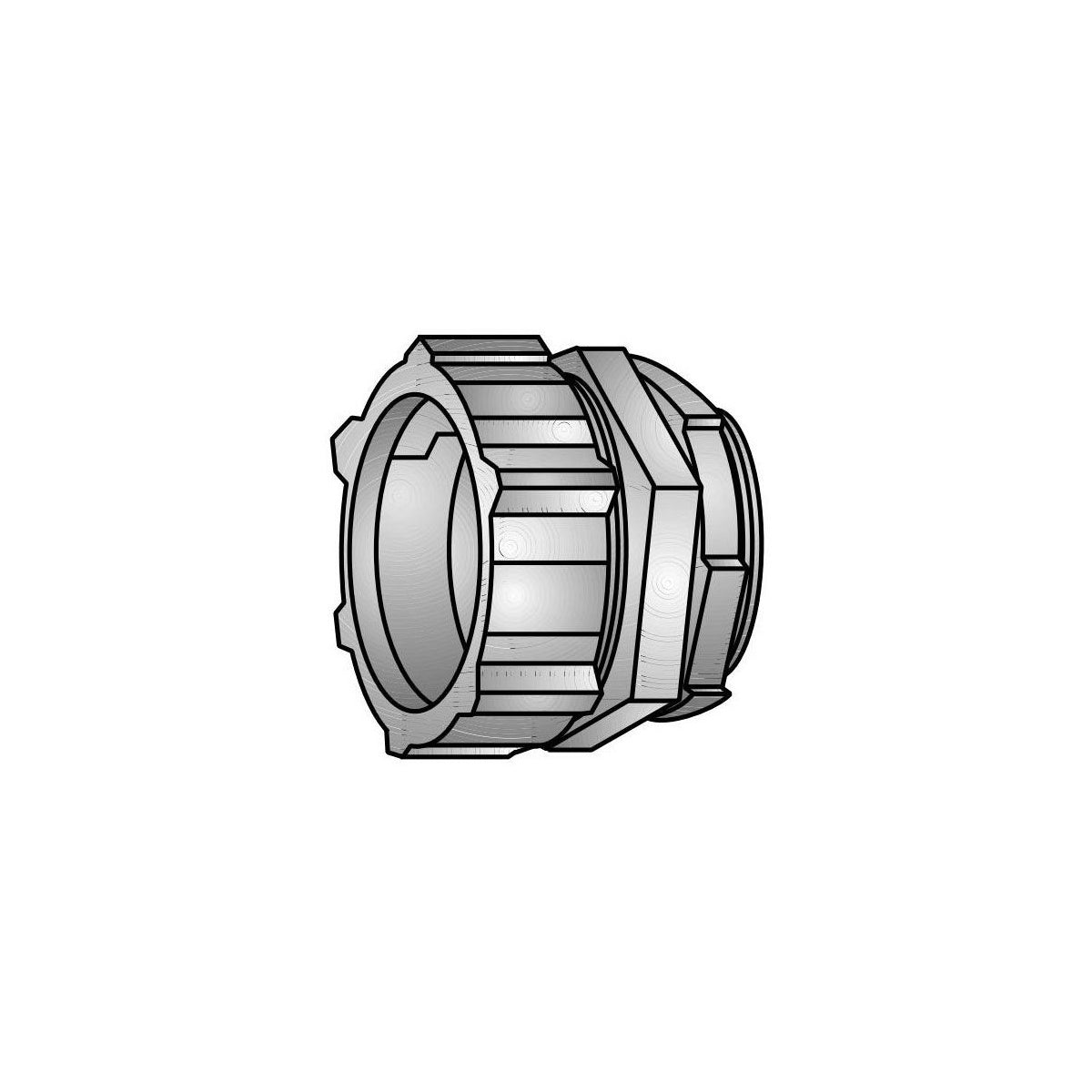

OZ-GEDNEY 31400 4 IN RGD COND COMP CONN - Compression Connector for Rigid Metal Conduit
The OZ-GEDNEY 31400 is a 4-inch rigid conduit compression connector designed for secure and reliable termination of rigid metal conduit (RMC) to enclosures. Manufactured by Oz-Gedney Co, this connector is suitable for use in electrical distribution and lighting solutions where durable and code-compliant conduit fittings are required. It is specifically engineered for use with rigid metal conduit and complies with NEC and CEC hazardous location standards, making it an appropriate choice for industrial and commercial wiring applications.
Specifications
- Manufacturer Part #: 31-400
- Trade Size: 4 inches
- Dimensions (mm): A - 65.0 (2.56 in), B - 155.7 (6.13 in), C - 31.8 (1.25 in)
- Product Weight: 5.07 lbs
- Material: Malleable iron with zinc electroplate
- Certifications: UL Standard 514B, UL Listed E-11853, CSA Standard C22.2 No. 18.3, CSA Certified 065178, NEMA FB-1
- Suitable for Hazardous Locations: Class I, Division 2 per NEC 501.10(B)(1) and NEC 501.10(B)(4)
Features
- Threadless compression design for secure conduit joining
- Concretetight construction ensures protection in harsh environments
- Used to join and terminate rigid metal conduit to enclosures
- Meets NEC and CEC hazardous location requirements
- Corrosion-resistant zinc electroplate finish on malleable iron body
