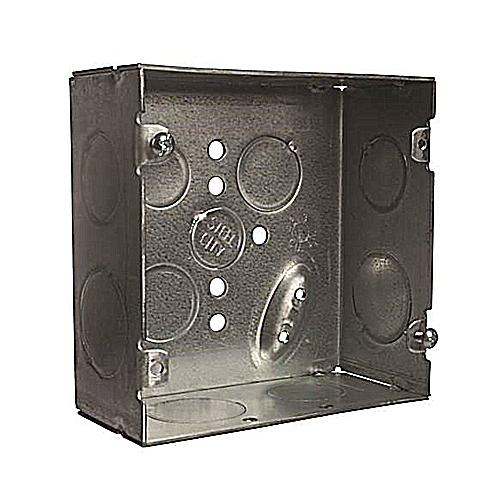

Outlet Boxes - Steel City 4-11/16 Inch Square Electrical Outlet Box

This Steel City Outlet Box is designed for use with conduit in electrical installations. It features a square shape with a 4-11/16 inch height and width, and a depth of 2-1/8 inches, providing a cubic capacity of 42 cubic inches. The box is constructed from pre-galvanized steel with welded construction to ensure durability and reliability. It is suitable for wall or ceiling surface mounting and is intended for use by electrical distributors and switchgear suppliers requiring robust wire and cable management solutions.

Specifications

• Application: For use with conduit
• Material: Steel
• Color: Silver
• Size: 4-11/16 Inches Height x 4-11/16 Inches Width x 2-1/8 Inches Depth
• Cubic Capacity: 42 Cubic Inches
• Knockouts: 16
• Number of Outlet: 1
• Mounting Method: Wall-/ceiling mounting
• Shape: Square
• Weight: 22.6 lbs
• Standard: UL E2969 Listed

Features

• Pre-galvanized steel construction for corrosion resistance
• Welded construction for enhanced structural integrity
• Eccentric 3/4 inch and 1 inch knockouts for versatile conduit connections
• Designed to accommodate electrical wiring and conduit in commercial and industrial applications
• Suitable for surface mounting on walls or ceilings
• Packaged in quantities of 20 for efficient distribution
