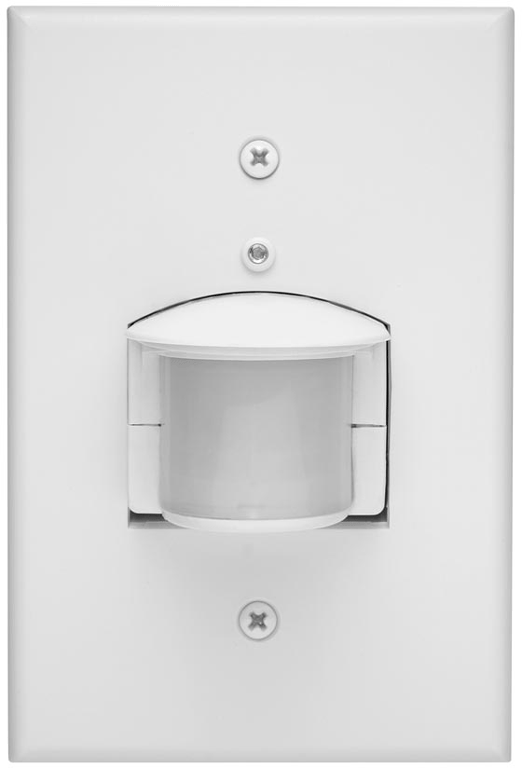

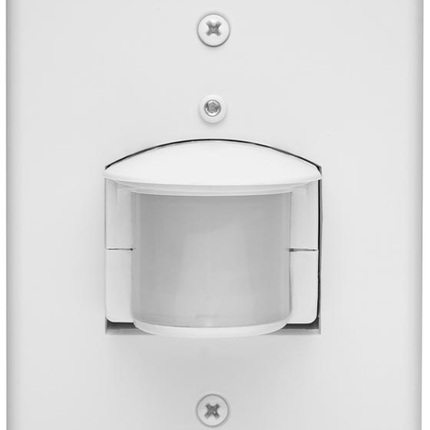

OUTDOOR SENSORS SMART BOX 180 SENSOR 500W 120V WHITE - Outdoor Motion Sensor

The RAB SmartBox SB500W is an outdoor motion sensor designed to add motion detection capability to exterior lighting systems. It provides a reliable solution for electrical distributors and lighting solutions providers seeking compact, weatherproof sensors with wide coverage for residential or commercial outdoor lighting control. The sensor is suitable for use with incandescent, electronic ballast (LED), and fluorescent lighting loads, making it versatile for various wire and cable installations and compatible with switchgear systems operating at 120 Volts AC.

Specifications

• Model: 120 VAC, 60 Hz, 500 W Incandescent, 600 W Electronic Ballast (LED)
• Voltage: 120 Volts AC
• Power Consumption: One watt
• UL Listing: Raintight Photoelectric Switch Suitable for wet locations
• Time Adjustment: 5 seconds to 15 minutes
• Quick Test Time: 5 second test time for fast installation, works day or night
• Detection Zone: Full 180° by 30’
• Surge Protection: Withstands up to 3000 Volts
• Product Weight: 0.3200 lbs

Features

• Wide 180° detection angle covers entire side of building with a single sensor
• Surface Mount Technology (SMT) for compact size, improved reliability, and RF immunity
• Double weatherproofing and precision molded Lexan® construction for durability in severe outdoor conditions
• Photoelectric control deactivates lights during daylight; adjustable for 24-hour or custom operation
• Vandal resistant hard lens molded as part of the case – rainproof, bugproof, and sealed
• Manual override via double flip wall switch logic with automatic reset at dawn, no extra wiring required
• LED detection indicator glows red day and night for deterrence
• RF shielded circuitry for maximum radio frequency immunity
• Adjustable sensitivity and time controls for customized detection and lighting duration
• Compact design fits into vertically mounted single gang outlet boxes
• Includes mounting hardware, gasket, lens mask, adjustment tool, and wire nuts
