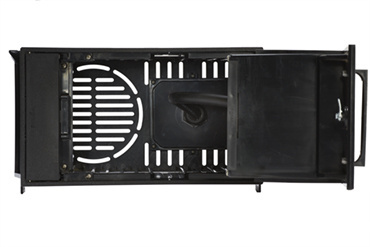

Outdoor Ground Box Electrical Distributor Solution

The Outdoor Ground Box by Wiremold is a durable, UV-rated nonmetallic enclosure designed for permanent outdoor power delivery in commercial and public spaces. Engineered to withstand harsh outdoor environments, it integrates seamlessly into landscaping by mounting flush with the ground surface. This product is ideal for electrical distributors and lighting solutions requiring secure, weather-resistant wire and cable management in outdoor settings such as retail centers, corporate campuses, parks, and hospitality venues.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: XB814
• Dimensions: 16.125 in (Length) x 8.125 in (Width) x 10.75 in (Height)
• Material: UV and chemical-resistant F1 rated nonmetallic
• Construction: Assembled
• Cubic Capacity: 123 in¬≥
• Weight: 9.4 lbs
• Country of Origin: China
• Conduit Feed Capacity: Accepts up to two 1 1/4" trade size PVC conduit feeds
• UL Listing: cULus Listed to UL50E Type 6P and IP68 requirements for safe year-round outdoor use
• ANSI/SCTE 77 Tier 5 rating, supporting up to 5,000 lbs load to withstand occasional non-deliberate vehicular traffic

Features

• Air Pocket Design traps and maintains an air pocket to protect devices, plugs, and connections from water, snow, and ice

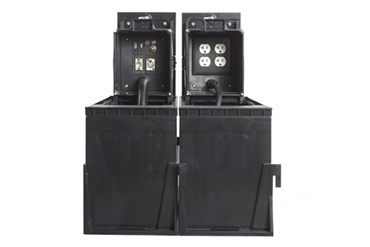

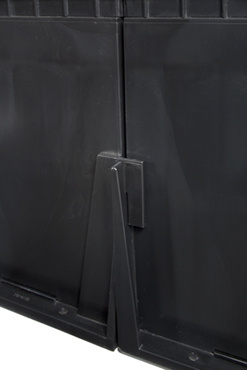

• Modular Interlocking Design allows multiple boxes to be ganged together for increased capacity and service separation
• Smart Egress Door auto-adjusts to cable size and locks when not in use to prevent cable damage

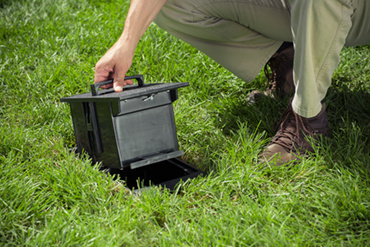

• Flush Mount Installation reduces trip hazards and blends with grass, concrete, brick, or paver surfaces
• Tamper-Resistant Lock enhances security by preventing unauthorized access
• Durable Outdoor-Rated Finish options in black, brown, or gray to complement outdoor environments
• Anti-Float Clips prevent cover from floating during flooding to maintain air pocket integrity
• Compliant with ADA guidelines for accessibility
