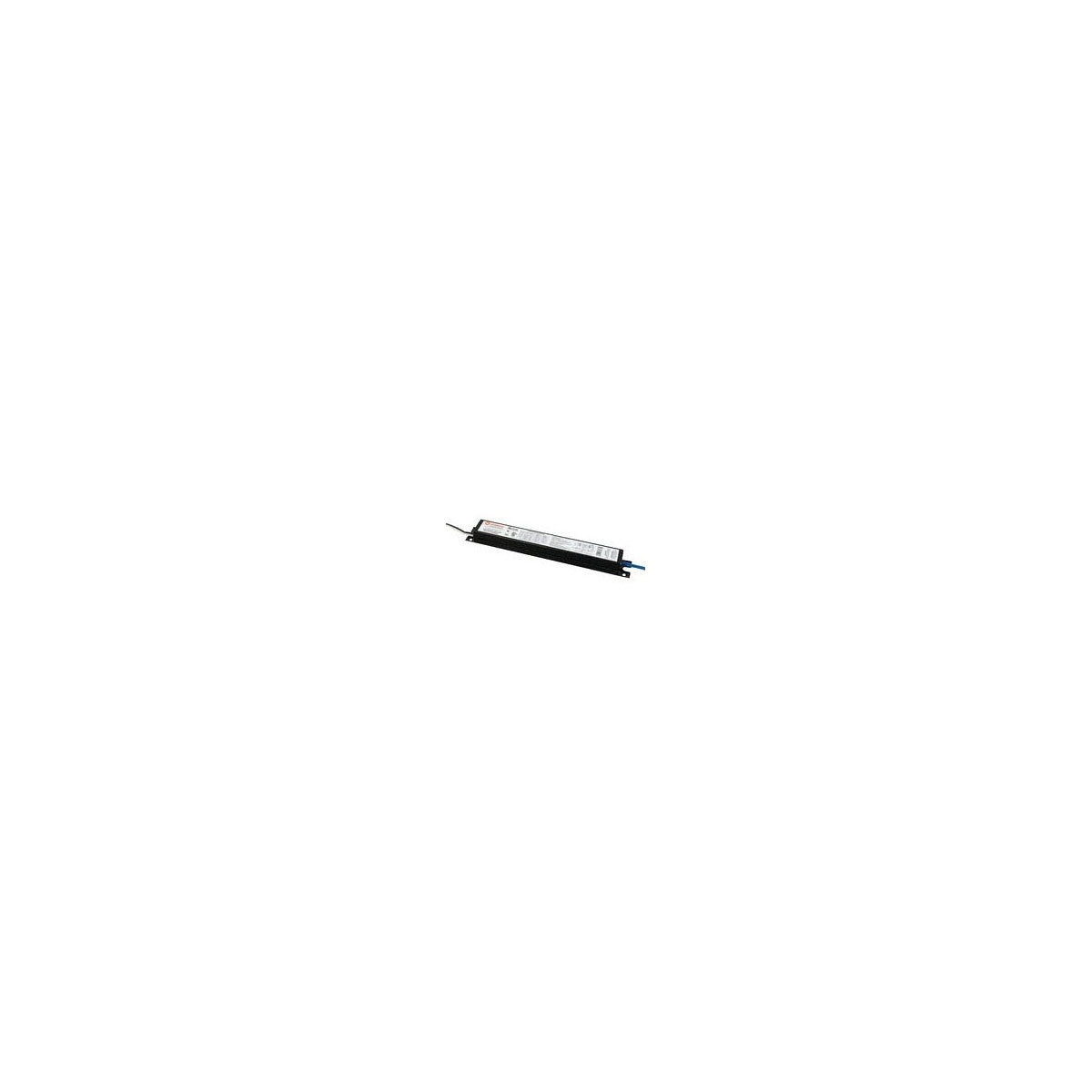

OSRAM LHE2X32T8UNVISNSCB High Efficiency T8 Ballast

The OSRAM LHE2X32T8UNVISNSCB is a high efficiency instant start ballast designed for T8 fluorescent lamps, operating within a universal voltage range of 120-277V. This ballast is suitable for commercial, retail, hospitality, institutional, and new construction applications. It supports 2-lamp configurations with 32W T8 lamps and offers low total harmonic distortion and a power factor greater than 97%, making it an efficient and reliable choice for electrical distributors and lighting solutions providers.

Specifications

• Starting Method: Instant Start
• Ballast Factor: 0.88 (Normal Ballast Factor)
• Circuit Type: Parallel
• Lamp Frequency: >42kHz
• Input Frequency: 50/60 Hz
• Total Harmonic Distortion (THD): <10%
• Power Factor: >97%
• Voltage Range: ¬±10% rated input
• Operating Temperatures: Starting at 0¬∞F (-18¬∞C) for T8 lamps
• Maximum Case Temperature: 194¬∞F (90¬∞C)
• Maximum Ambient Temperature: 131¬∞F (55¬∞C)
• UL Listed Class P, Type 1, Outdoor, CEC, NRCAN certified
• FCC Part 18 Non-Consumer compliant
• Class A Sound Rating
• ANSI C62.41 Cat. A Transient Protection
• RoHS Compliant, No PCBs
• Dimensions: 9.5" L x 1.2" W x 0.9" H (241mm x 31mm x 23mm)
• Mounting Length: 8.90" (226mm)
• Weight: Approximately 0.7 lbs. per unit
• Packaging: 10 units per case

Features

• Compatible with 32W T8 lamps and various equivalents including FBO32, FO17, FO30/SS, and energy-saving models
• Low ballast factor of 0.88 for normal efficiency operation
• Instant start technology for reliable lamp ignition
• Low total harmonic distortion for reduced electrical noise
• High power factor exceeding 97% improves energy efficiency
• Robust construction suitable for commercial and institutional lighting systems
• Ground ballast case for safety and compliance with National Electrical Code
• Remote mounting capability with up to 18 ft. lead length (18 AWG wire)
• Five-year warranty from date of manufacture
