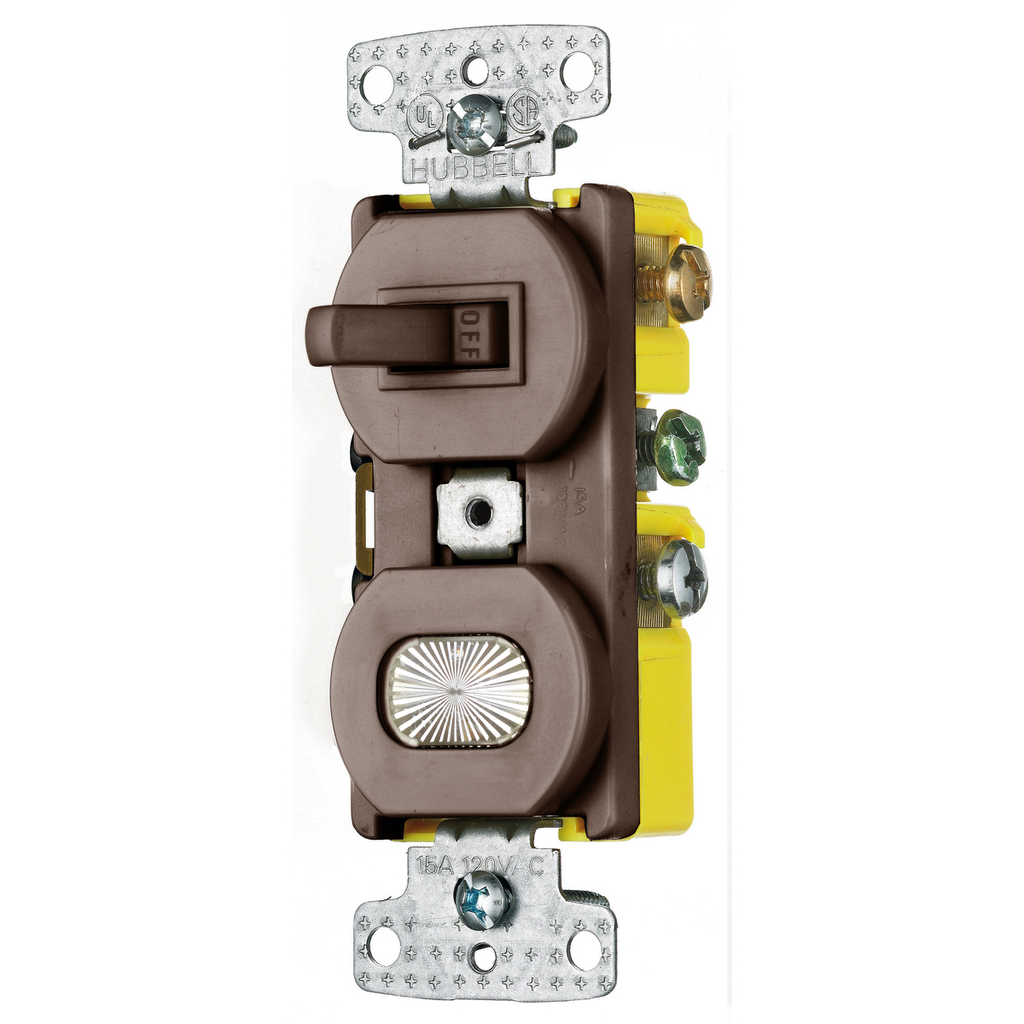

One Three Way Toggle One Pilot Light Combination Device 15A – Residential Electrical Switch

This combination device integrates a three-way toggle switch with a pilot light, designed for residential electrical applications. It provides reliable control and indication within indoor dry environments, making it suitable for lighting solutions and electrical distribution in homes. The device features side wiring and a snap switch action, ensuring straightforward installation and operation for electrical distributors and switchgear suppliers.

Specifications

• Application: Residential
• Current Rating: 15 A
• Voltage Rating: 120 VAC
• Contact Rating: 15A
• Number of Poles: 1) Three Way
• Contact Configuration: Two Position
• Connectivity: Side Wired
• Operating Cycles: 30,000 Minimum
• Operating Temperature: -20°C to 60°C
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Actuator: Toggle
• Action: Snap Switch
• Wattage: 1800
• Display Size: Standard Size
• Material - Mounting Hardware: Mounting Screws
• UPC: 883778110078
• Manufacturer Part #: RC309
• Country of Origin: China
• Industry Standard(s): UL Listed
• EU RoHS Indicator: Yes
• Product Weight: 0.2000 lb
• Width: 1.800 in

Features

• Quiet snap action mechanism
• Self-grounding staple is standard
• Elongated strap with continuous plaster ears for secure mounting
• Amber pilot light for status indication
• Side wired for ease of installation
