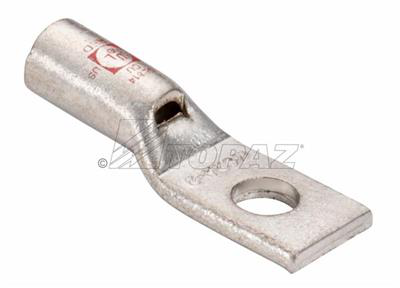

One Hole - Short Barrel Compression Lugs, 300 MCM Wire, 1/2" Bolt Size, White Color Code
SKU: #172884
Part: #2909B
UPC: 751338818057
One Hole - Short Barrel Compression Lugs, 300 MCM Wire, 1/2" Bolt Size, White Color Code
SKU: #172884
Part: #2909B
UPC: 751338818057
Next day delivery
Description
One Hole - Short Barrel Compression Lugs, 300 MCM Wire, White Color Code
Topaz’s One Hole, Short Barrel Compression Lugs are designed for reliable electrical connections in wire and cable applications. Fabricated from high conductivity copper tubing and tin plated for corrosion resistance, these lugs are suitable for grounding and direct burial in earth or concrete. As a trusted component for electrical distributors and switchgear suppliers, they support heavy duty applications and are UL listed for safety and performance.
Specifications
- Material: Copper
- Color: White
- Cable Size: 300 MCM
- Number of Holes: 1
- Bolt Size: 1/2"
- Amperage Rating: 486 AMP
- Product Weight: 0.1304 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 2909B
Features
- High conductivity copper tubing for optimal electrical performance
- Tin plated finish provides corrosion resistance
- Color coded for easy identification
- Withstands high mechanical stress
- Ideal for direct burial and grounding applications
- UL listed for safety and compliance
